An industrial sewing machine is a ten-year decision. The head you install this month sets your output ceiling, your seam quality and your reject rate for every shift it runs. Choose it against a specification sheet instead of against the job, and you pay for that mistake daily.
This is the order we work through with buyers at our Sharjah showroom. Answer the questions in sequence and the shortlist builds itself.
Step 1: What do you make, and in what material?
Name the product you run in volume, not the one you make occasionally. A kandoora atelier, a school uniform factory and a car seat trimmer are three different floors, and almost nothing crosses between them.
Then weigh the material. Makers split their ranges into light, medium and heavy weight, and that split is real, not marketing. The Juki DDL-7000A Series ships in two builds off one head: the DDL-7000AS-7 for light-to-medium fabric, running DB x 1 needles in sizes #14 to #18 at 5,000 stitches per minute, and the DDL-7000AH-7 for denim and workwear, running DP x 5 needles in sizes #20 to #23 at 4,000 stitches per minute. Same machine, different internals. Order the wrong build and your operators fight the fabric every hour of every shift.
Step 2: Which seam does the job actually need?
Lockstitch
The lockstitch is the base seam in almost every factory: strong, tidy on both faces, and it does not stretch. It is what you use on woven garments, uniforms, abayas, bags and upholstery. Our lockstitch range is the largest collection we carry, for exactly that reason.
Overlock
Overlock trims the raw edge and encloses it in the same pass, so the fabric cannot fray. The Juki MO-6814S runs a 2-needle, 4-thread overlock stitch (U.S. stitch style 514) at 7,000 stitches per minute, with differential feed adjustable from 1:0.7 for stretching to 1:2 for gathering, and 1:4 at maximum. That differential range is the whole point: it stops light woven fabric puckering and stops knits growing under the foot. That is reject rate, not comfort. See the full overlock range.
Coverstitch
If you hem T-shirts, sportswear or any knit, you need coverstitch, and nothing substitutes for it. The Juki MF-7523 lays a 3-needle, 5-thread top-and-bottom cover stitch at 6,500 stitches per minute, in needle gauges of 4.0, 4.8, 5.6 and 6.4 mm, so you match the visible stitch spacing to the garment rather than to the machine. The seam stretches with the fabric and holds its shape after washing. See the coverstitch range.
Chainstitch
Chainstitch gives more give than a lockstitch, which is why trouser side seams and long workwear runs use it. The Jack JK-8558G flatbed chainstitch comes in 1, 2 or 3-needle builds, takes TV x 7 needles, runs at 4,000 stitches per minute, and uses a grease-lubricated semi-dry head, so no oil reaches the panel.
Step 3: The feed mechanism decides whether heavy work stays aligned
This is the fork most buyers get wrong. Feed mechanism, not top speed, decides whether your layers arrive at the end of the seam still lined up.
Drop feed moves the bottom layer only. On light and medium woven fabric that is enough, and it is what a standard lockstitch such as the Juki DDL-8700 uses, with a 4-row feed dog.
Top-and-bottom feed adds a driven upper foot so both layers move together. The Juki DU-1181N sews at 2,000 stitches per minute with a 9 mm maximum stitch length, a 15 mm knee lift and DP x 17 needles in sizes #14 to #23 — the combination piping, tape work and multi-layer upholstery need. The Jack H2-A is the direct-drive equivalent: Jack states its 750 W motor and top feed will sew ten layers of medium-light leather, with presser foot lift up to 16 mm and stitch length up to 8 mm, or 12 mm on the H2-A-CZ-12.
Unison feed, the walking foot, moves needle, presser foot and feed dog as one. That is what extra-heavy work demands. The Juki LU-1508NH runs a 38 mm needle bar stroke for penetration, a 10 mm stitch length and a 16 mm presser foot lift, and takes thread from #20 down to #1. For two parallel rows in a single pass on car seats and sofas, the Juki LU-1560N does the same with two needles at 2,500 stitches per minute, in gauges from 4.8 mm to 12.7 mm. Both sit in our car seat and upholstery range.
Note the trade. Unison-feed machines top out at 2,000 to 2,500 stitches per minute while a garment lockstitch reaches 5,000. You are buying feed control, not speed, and on twelve millimetres of leather that is the right purchase.
Step 4: Output per shift decides drive and automation
Now put a number on it. How many finished pieces must leave your floor per shift, and across how many operators?
If the number is modest and the budget is tight, a mechanical head is honest engineering. The Juki DDL-8100E runs at 4,500 stitches per minute on a 3-row feed dog and costs very little to keep running. The DDL-8700 reaches 5,500 stitches per minute, but your operator trims every thread by hand.
Count that trim. A few seconds per seam, multiplied across a shift and across every operator, is the largest hidden cost on a manual floor. The Juki DDL-8700-7 puts an automatic thread trimmer on the same platform at 5,000 stitches per minute, and its SC-920C control box cuts standby power by about 25% against the previous box. Your operators stop trimming and your electricity bill falls in one purchase.

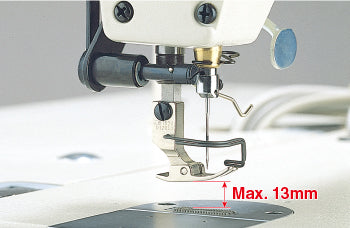

Above that, direct drive and digital control pay for themselves in consistency rather than speed. The Juki DDL-9000B Series mounts a 450 W servomotor directly in the head and offers semi-dry and fully-dry variants so oil never reaches the fabric — which decides the purchase if you sew pale abaya crepe. The Juki DDL-9000C Series goes further: feed dog height and presser foot pressure are set digitally on the panel and copied machine to machine, so a setting proved on one head is reproduced exactly on the next twenty, and it trims to as little as 3 mm of thread remaining. The Jack A4C arrives in the same territory from the other direction, with 13 levels of digital presser foot lift from 5 to 13 mm and stitch length set in 0.1 mm steps.
The question is not how fast. It is what operator-to-operator variation costs you per month. Digital machines exist to delete it.
Step 5: What else the machine needs before it can run
A head is not a working machine. Budget for the rest before you sign.
- Table, stand and motor. Some machines are quoted complete — the Jack F4 is supplied with heavy-duty table, stand and built-in direct-drive motor. Others are quoted head-only. Ask which, before you compare two prices.
- Needles, in the correct system. The system is dictated by the machine, not by preference. Lockstitch takes Organ DBx1. Overlock takes DCx27. Coverstitch and flatlock take UYx128. Walking-foot and compound-feed machines take DPx17, available from Nm 90 to Nm 160. Order against the machine's spec sheet, not against whatever the last supplier shipped.
- Thread matched to needle size. Amann Saba core-spun polyester runs from ticket 8 down to ticket 180, tex 400 down to tex 18, and Amann publishes a minimum needle size for every ticket, from Nm 200 down to Nm 50. Match thread, needle and fabric or you will chase skipped stitches for months.
- Installation, training and service. A machine nobody on your floor can set correctly produces at half its rating, and the spec sheet will still say 5,000 stitches per minute.
Three worked examples
- Uniform factory, medium-weight poplin, high volume. Lockstitch with automatic trim (DDL-8700-7) across the main line, MO-6814S overlock on edges, plus dedicated buttonhole and button-sewing machines.
- Abaya atelier, fine crepe, quality-critical. Semi-dry or fully-dry DDL-9000B so oil never marks the cloth, run below its top speed by choice.
- Car seat trimmer, coated leather. LU-1508NH unison feed for structural seams, LU-1560N for twin-needle decorative rows, DPx17 needles and bonded thread throughout.
Tell us the job, not the model number
We have supplied factories in the UAE, Saudi Arabia, the wider GCC and Africa since 1987, and the quotes that work always start the same way: what you make, what it is made of, and how many pieces you need per shift. Send us those three answers and we will specify the head, the table, the needles and the thread as one package, with installation, operator training and service included.
Message us on WhatsApp or contact our Sharjah team. Bring your fabric to the showroom and we will sew it on the machine before you buy.
