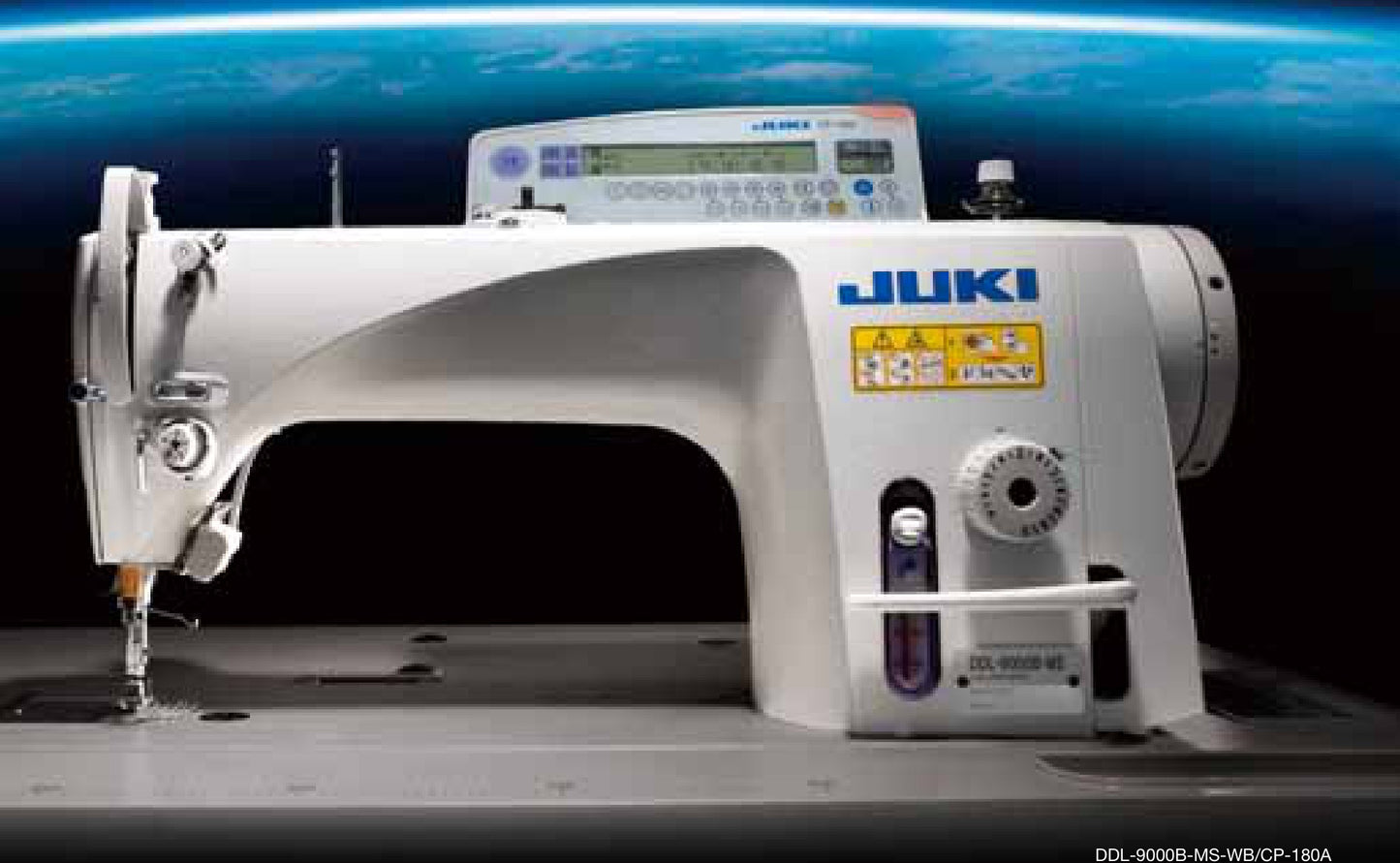

• Juki DDL-9000B Series, Direct-Drive High-Speed Lockstitch Machine

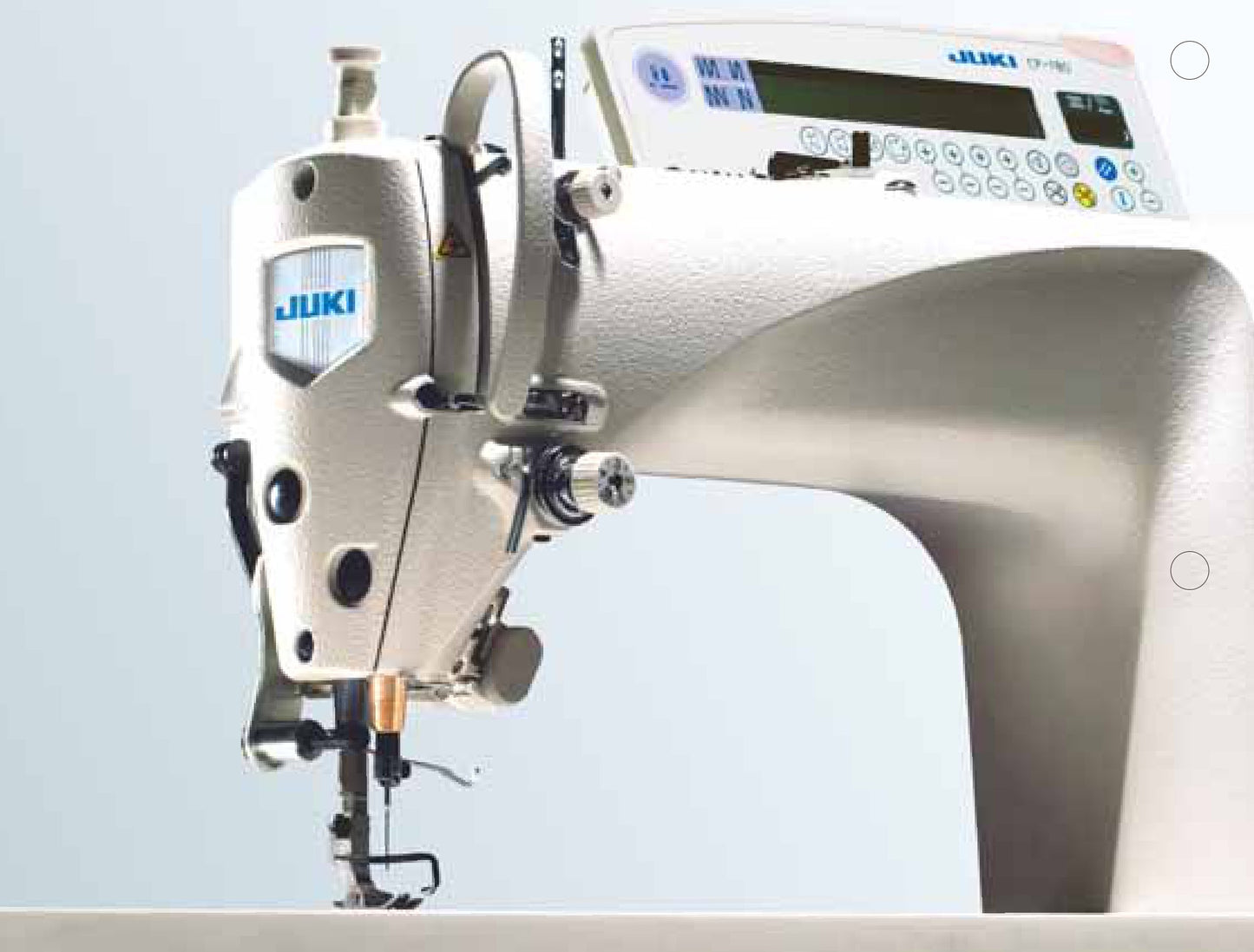

  • Juki DDL-9000B Series, Direct-Drive High-Speed Lockstitch Machine head detail
1 2

Juki DDL-9000B Series, Direct-Drive High-Speed Single-Needle Lockstitch Machine

Juki DDL-9000B Series, Direct-Drive High-Speed Single-Needle Lockstitch Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Juki's premium direct-drive lockstitch machine, built for sewing rooms that run at full speed all day.

The Juki DDL-9000B Series is a single-needle lockstitch machine with an automatic thread trimmer, designed for high-volume garment production. It uses a direct-drive servomotor for a fast, precise start on every stitch, and it comes in light, medium, and heavy-weight configurations to match different fabrics. One popular configuration, the DDL-9000B-MS-WB, is set up for medium-weight materials with a semi-dry head and thread wiper, paired with the SC-920 control box and CP-18A operation panel. This machine suits uniform and abaya production lines across Sharjah and the wider UAE that need consistent, high-speed output.

Key features

  • Direct-drive compact AC servomotor for quick response and strong needle penetration
  • Automatic thread trimmer, at least twice as fast as earlier Juki models
  • Energy-saving SC-920 control box with a standby power-saving mode
  • Three head types to reduce oil stains on fabric: minute-quantity lubrication, semi-dry, and fully-dry
  • Production support functions on the CP-18A/CP-180A panel: output counter, operation time measuring, and bobbin counter
  • DDL-9000B-MS-WB/SC920/CP18A configuration: semi-dry head for medium-weight materials, with thread wiper fitted

Specifications

Spec Value
Max. sewing speed Up to 5,000 sti/min (medium and light-weight heads); 4,500 sti/min (heavy-weight); 4,000 sti/min (fully-dry head)
Max. stitch length Up to 5 mm (4 mm on the light-weight head)
Needle system DB x 1 (#11) #9-#18 medium-weight; DB x 1 (#21) #20-#23 heavy-weight; DB x 1 (#9) #8-#11 light-weight
Presser foot lift By hand: 5.5 mm; By knee: 15 mm; Auto: 8.5 mm
Lubrication Minute-quantity, semi-dry, or fully-dry head types; JUKI Machine Oil 7 (ISO VG7 equivalent)
Drive type Direct-drive compact AC servomotor (450W)
Power consumption 320 VA
Applications Light, medium, and heavy-weight garment fabrics
Request a quote

Get a price for the Juki DDL-9000B Series, Direct-Drive High-Speed Single-Needle Lockstitch Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
