Juki DDL-8700-7 Industrial Lockstitch Sewing Machine with Automatic Thread Trimmer

Also listed as DDL 8700-7, DDL8700-7, 8700-7, 8700 7 and DDL-8700-7 SC-920C M92

The DDL-8700 head with an automatic thread trimmer, automatic backtack and Juki's own servo motor and control box. Juki calls it the standard model of its single-needle lockstitch machines with automatic thread trimmer, and rates it at 5,000 stitches a minute.

Built for Garment factoriesUniform factoriesAbaya and kandoora production

Get the AED price on WhatsApp Request a factory assessment

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki DDL-8700-7 lockstitch sewing machine with automatic thread trimmer and operation panel on its table
  • 5,000spmMax speed
  • 450WM92 servo motor
  • 4mmMax stitch length
  • 13mmKnee lift
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The DDL-8700-7 up close

4 photos · tap to enlarge
DDL-8700-7 Get a quote

The Juki DDL-8700-7 in 30 seconds

What it is

An industrial single-needle lockstitch machine with automatic thread trimmer and automatic reverse feed, driven by Juki's compact M92 servo motor through the SC-920C control box, with a CP-18A or CP-180A operation panel.

Who it's for

Garment, uniform and workwear factories that want to cut hand trimming and keep backtacks the same on every seam, on shirts, trousers and uniforms where long seams should end in short, trimmed threads.

Why this model

Pick it over the DDL-8700 when trimming and backtacking by hand slow the line. The panel also counts output and bobbins, which helps supervisors run the line.

Setting up a factory line with the DDL-8700-7

Most DDL-8700-7 machines go onto factory production lines. We quote by the line for factories in the UAE, the GCC, Ghana, Kenya and Ethiopia, and stay with you after the machines are running.

Request a factory assessment Plan your production line
  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, tables and stands, motors, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts and annual maintenance contracts for every machine on the floor.

What the DDL-8700-7 does on a factory floor

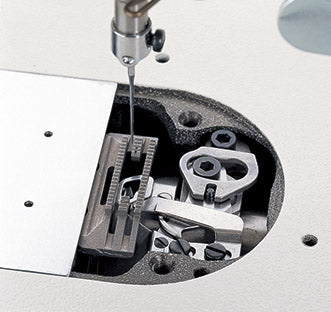

Juki DDL-8700-7 with the throat plate removed, showing the feed dog and the thread trimmer knife

Automatic thread trimmer

Every seam ends trimmed, without scissors

A knife under the throat plate cuts the needle and bobbin threads at the end of the seam. In Juki's manual, a light press on the back of the pedal lifts the presser foot and a further press works the trimmer. Juki describes the mechanism as speedy and reliable.

On the factory floorA knife under the throat plate cuts both threads at the end of each seam, so the operator does not reach for scissors before the next piece.

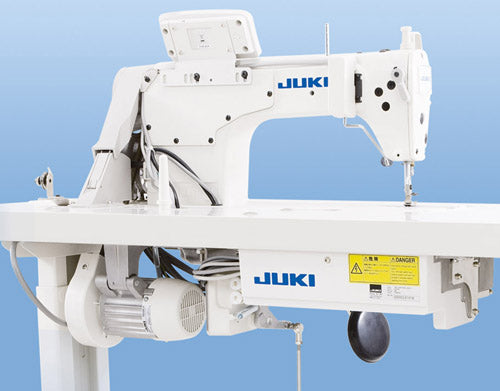

Juki DDL-8700-7 on its stand with the SC-920C control box and M92 servo motor under the table

SC-920C control box and M92 servo motor

A 450 W servo motor that stands still between seams

Juki's M92 is a 450 W compact servo motor run by the SC-920C box, which Juki built to resist voltage changes, noise and vibration. Juki states the box cuts standby power by about 25% against the earlier SC-910N, and rates power consumption at 320 VA.

On the factory floorThe SC-920C box cuts standby power by about 25% against the SC-910N, so a line of these machines uses less power while it waits between seams.

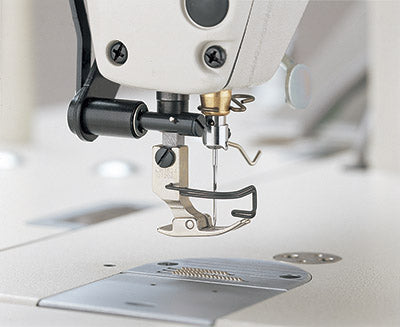

Juki DDL-8700-7 needle, presser foot and throat plate with seam guide grooves

One-touch reverse and seam guides

Backtacks set once on the panel

Automatic reverse feed at the start and end of each seam is standard, and a one-touch switch beside the needle sews reverse stitches when the operator needs them. The throat plate carries marker grooves as a guide for seam allowance.

On the factory floorReverse stitches at the start and end of each seam are automatic, so backtacks come out the same on every garment, whoever is sewing.

  • Production counts on the panel

    The CP-18A and CP-180A panels show target and actual output, machine running rate, pitch time, average speed and a bobbin counter that warns before the bobbin runs out.

  • Wiper on request

    Order code WB adds a thread wiper to the machine; code 0B comes without one. Both have the one-touch reverse switch.

  • 13 mm knee lift

    5.5 mm by hand and 13 mm with the knee lifter. Juki's AK85 auto-lifter is an option that lifts the foot from the pedal.

Juki also builds the DDL-8700A-7 for light-weight fabric and the DDL-8700H-7 for heavy-weight fabric, both at 4,000 spm. The H-7 sews up to 5 mm and takes DB×1 #19 to #23 needles.

Juki DDL-8700-7 specifications

Sewing

Max sewing speed5,000 stitches/min
Max stitch length4 mm
NeedleDB×1 (#14 fitted), sizes #9-#18
Presser foot lift5.5 mm by hand, 13 mm by knee
Needle bar stroke30.7 mm
Feed dog4-row

Drive and control

Thread trimmerAutomatic
Reverse feedAutomatic, plus a one-touch switch
Control boxSC-920C
MotorM92 compact servo motor, 450 W
Operation panelCP-18A or CP-180A
Power supplySingle-phase 100-240 V or 3-phase 200-240 V
Power consumption320 VA

Hook and build

HookAutomatic-lubricating full-rotary hook
LubricationAutomatic
Lubricating oilJUKI MACHINE OIL 7 (ISO VG7)
Noise at the workstation80.5 dB(A) at 5,000 stitches/min
WeightHead 30 kg (35 kg with AK85), SC-920C 3 kg, M92 3.5 kg

Figures from Juki's DDL-8700-7/SC-920C/M92 catalogue (January 2015), Juki's 2023 general catalogue and the DDL-8700-7 instruction manual (noise, pedal).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)

Juki single-needle lockstitch machines side by side

Juki DDL-8700 single-needle lockstitch sewing machine
Juki DDL-8700
Juki DDL-8100e single-needle lockstitch sewing machine
Juki DDL-8100E
Juki DDL-5550N single-needle lockstitch sewing machine
Juki DDL-5550N 		This machine
Juki DDL-8700-7
Juki DDL-8700-7
Best forMedium-weight garments on a manual headLight to medium-weight work at 4,500 spmMedium-weight work, more room under the armLines that want trimming and backtack done automatically
Drive and motorV-belt, motor under the tableV-belt, motor under the tableBelt, motor under the tableM92 450 W servo, SC-920C box
Thread trimmerNo, trimmed by handNo, trimmed by handNo, trimmed by handAutomatic
Max speed5,500 spm4,500 spm5,500 spm5,000 spm
Stitch lengthUp to 5 mmUp to 5 mmUp to 5 mmUp to 4 mm
LubricationAutomatic, oil panAutomatic, oil panAutomatic, oil panAutomatic, oil pan
View DDL-8700View DDL-8100EView DDL-5550NYou are here

Questions about the Juki DDL-8700-7

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the DDL8700-7 the same as the Juki DDL-8700-7?

Yes. DDL8700-7, DDL 8700-7 and DDL-8700-7 all mean the same Juki machine. You may also see it written DDL-8700-7/SC-920C/M92, which names the head together with its control box and motor.

What is the price of the Juki DDL-8700-7 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the table and stand, the motor and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki DDL-8700-7 in Ghana, Kenya or Ethiopia?

It depends on the quantity, the table and motor, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Is the DDL-8700-7 suited to a factory production line?

Yes. Juki rates it at 5,000 stitches a minute, and the automatic trimmer and backtack take two hand jobs off every seam. We supply it by the line, with tables, stands, installation and operator training.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from DDL-8700-7 lockstitch stations to overlock, interlock, buttonhole and bartack machines, and can visit your factory for an assessment first.

What is the difference between the DDL-8700-7 and the DDL-8700?

Both belong to Juki's DDL-8700 series. The DDL-8700 is the manual model, belt-driven from a motor under the table, with the thread trimmed by hand; Juki rates it at 5,500 stitches a minute and 5 mm stitch length. The DDL-8700-7 adds the automatic thread trimmer, automatic reverse feed, the SC-920C control box, the 450 W M92 servo motor and an operation panel; Juki rates it at 5,000 stitches a minute and 4 mm stitch length.

Does the DDL-8700-7 need 3-phase power?

No. Juki builds the SC-920C control box for single-phase 100-240 V or 3-phase 200-240 V supplies, and rates power consumption at 320 VA. Tell us your factory supply when you order and we match the box to it.

Where can I find the DDL-8700-7 manual and error list?

Send us the model and version from your machine's plate on WhatsApp and we send Juki's instruction manual and parts list for that exact version. If the operation panel shows an error code, send the code with a photo of the panel and our technicians will help. We supply spare parts for the DDL-8700-7.

Do you deliver the DDL-8700-7 to Riyadh, Accra, Nairobi and Addis Ababa?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the DDL-8700-7 working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own fabric to test.
