JukiMF-7523 Flat-Bed Top and Bottom Coverstitch Machine

Also listed as MF7523, MF-7523-U11, MF-7523-U11-B56, MF 7523 and MF-7500 series

A flat-bed, 3-needle, 5-thread coverstitch machine that sews the top and bottom cover stitch in one pass at up to 6,500 stitches a minute. Knitwear and uniform lines use it to hem sleeves and bottoms on T-shirts and cover seams on sportswear.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

  • 6,500spmMax speed
  • 3needles5 threads
  • 1.2-3.6mmStitch length
  • 1:0.7-1:2Differential feed ratio
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The MF-7523 up close

3 photos · tap to enlarge

The Juki MF-7523 in 30 seconds

What it is

A flat-bed top and bottom coverstitch machine with 3 needles and 5 threads, a fine differential-feed adjustment and a micro-lifter.

Who it's for

T-shirt, polo, sportswear and knitwear factories in the UAE, the GCC and Africa, and uniform lines that hem sleeves and bottoms.

Why this model

Pick it for fast hems on knit garments. Juki's feed adjustments and micro-lifter hold elastic fabric flat, so stretch hems come out with less puckering.

Setting up a factory line with the MF-7523

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the MF-7523 does on a factory floor

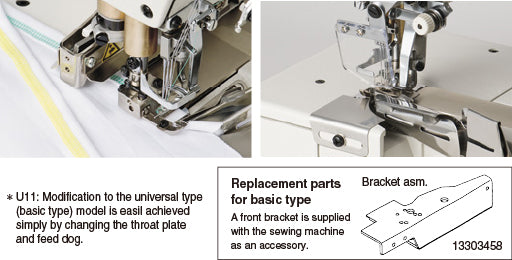

Juki MF-7523, High-Speed Flat-Bed Coverstitch Machine

Differential-feed micro-adjustment

A fine dial for the feed ratio

The differential feed amount is finely adjusted to suit the fabric. Juki states the ratio stays constant when the stitch length changes.

On the factory floorBecause the ratio holds when stitch length changes, operators change the stitch length without redoing the puckering adjustment.

Juki MF-7523, High-Speed Flat-Bed Coverstitch Machine

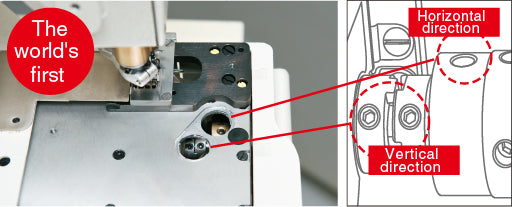

External feed adjustment

Tune the feed from the outside

The feed locus is adjustable vertically and horizontally from outside, and the longitudinal position of the feed can be moved.

On the factory floorBecause the feed is tuned from outside, operators reduce uneven feed and puckering on elastic fabrics such as foundations.

Juki MF-7523, High-Speed Flat-Bed Coverstitch Machine

Looper thread twining prevention

A broken looper thread is trimmed before it twines

If the looper thread breaks, the mechanism trims it before it twines on the looper thread cam. Juki moved that cam outside the machine.

On the factory floorBecause the thread is trimmed before it twines and the cam sits outside, a looper break is quicker to clear.

  • Micro-lifter

    The presser foot can be kept slightly raised, so elastic and delicate fabric slips, warps and marks less.

  • Needle bar stroke 31 or 33 mm

    An eccentric pin changes the stroke for heavy fabric such as fleece and blankets, with no parts to swap.

  • Common gauge parts

    Commercially available presser feet, throat plates and needle clamps fit, so they are easy to find.

Juki MF-7523 specifications

Sewing

Stitch type3-needle, 5-thread top and bottom coverstitch
Max sewing speed6,500 sti/min (semi-dry D versions 5,000)
Stitch length1.2-3.6 mm, adjustable to 4.4 mm
Differential feed ratio1:0.7-1:2
Presser foot lift5 mm top and bottom, 8 mm bottom only
NeedleUY128GAS (#10S), #9S-#12S

Drive and control

Needle bar stroke31 mm, 33 mm for heavy fabric
LubricationAutomatic, silicon oil tank for needle tip and needle thread
Thread-trimmer buildsDirect-drive motor, 29% less power than earlier models (Juki)

Build

BedFlat-bed
Weight of machine head45 kg without device
ApplicationsHemming sleeves and bottoms of T-shirts, covering seams on sportswear and knitwear

Figures from Juki's MF-7500 Series catalogue (March 2015).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki MF-7523Full specifications from Juki, PDF Download

Questions about the Juki MF-7523

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the MF-7523 the same as the MF-7500?

MF-7500 is the series. The MF-7523 is its 3-needle, 5-thread top and bottom coverstitch machine. The MF-7522 has 2 needles and the MF-7524 has 4.

Is there an MF-7523 with a thread trimmer?

Juki builds the series with needle and looper thread trimming, electromagnetic or pneumatic, and a direct-drive motor. Tell us which build you need.

What is the semi-dry head on the MF-7500D?

A frame that needs no oiling, to keep oil off the garment. The semi-dry version runs up to 5,000 stitches a minute. The MF-7523 without the D is the standard head.

What is the price of the Juki MF-7523 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Juki MF-7523 and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Juki MF-7523 before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Juki MF-7523?

A 1-year warranty, handled by our own service team, who also install the machine.
