Juki DDL-8100e Industrial Straight Stitch Sewing Machine

Also listed as DDL 8100e, DDL8100E, 8100e, DDL-8100 and DDL 8100

A single-needle lockstitch head for light to medium-weight fabric, rated by Juki at 4,500 stitches a minute with a 5 mm stitch. It is a plain belt-driven head built to Juki's ECO PRODUCTS standard, for lines and workshops that want a Juki without automatic features.

Built for Garment factoriesUniform factoriesAbaya and kandoora production

Get the AED price on WhatsApp Request a factory assessment

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki DDL-8100e catalogue (PDF)Full specifications from Juki Juki DDL-8100e catalogue pages and key figuresEvery machine catalogue in one library

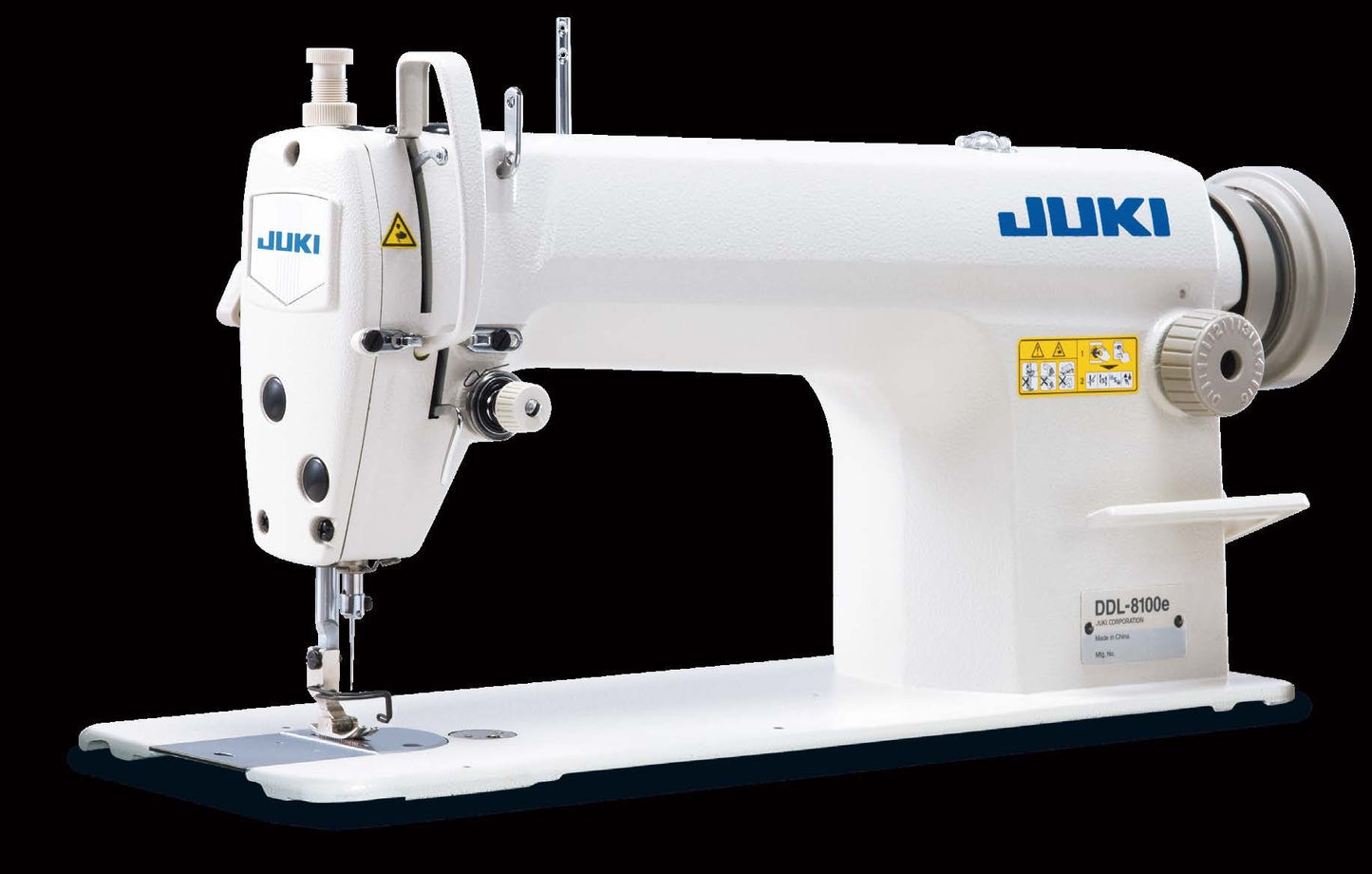

Juki DDL-8100e single-needle lockstitch sewing machine, full view of the head
  • 4,500spmMax speed
  • 5mmMax stitch length
  • 13mmKnee lift
  • 26kgHead weight
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The DDL-8100e up close

5 photos · tap to enlarge
DDL-8100e Get a quote

The Juki DDL-8100e in 30 seconds

What it is

An industrial single-needle lockstitch machine head with a 3-row feed dog, an automatic-lubricating full-rotary hook and a deep-recess hand pulley. A motor under the table drives it, and the thread is trimmed by hand.

Who it's for

Garment and uniform factories adding straight-seam stations, training rooms that teach new operators, and workshops sewing shirts and other light to medium-weight cloth.

Why this model

Pick it when 4,500 stitches a minute is enough for the job. For faster lines Juki rates the DDL-8700 at 5,500, and the DDL-8700-7 adds an automatic thread trimmer.

Setting up a factory line with the DDL-8100e

Most DDL-8100e machines go onto factory production lines. We quote by the line for factories in the UAE, the GCC, Ghana, Kenya and Ethiopia, and stay with you after the machines are running.

Request a factory assessment Plan your production line
  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, tables and stands, motors, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts and annual maintenance contracts for every machine on the floor.

What the DDL-8100e does on a factory floor

Juki DDL-8100e presser foot lifted, close-up of the needle bar and needle

13 mm presser foot lift

Thick seams slide under a high foot

Juki gives the DDL-8100e 5.5 mm of lift by hand and 13 mm with the knee lifter, and pairs it with a light-touch stitch dial, so the operator works with less effort.

On the factory floorThe knee lifter raises the foot to 13 mm, so the operator feeds hems and pockets under it and turns corners while both hands stay on the garment.

Operator turning the recessed hand pulley of a Juki DDL-8100e

Deep-recess hand pulley

A pulley the operator can grip and turn

Juki designed the hand pulley with a deep recess so the operator can hold it firmly and turn it with ease when setting the needle position.

On the factory floorThe deep recess gives the operator a firm grip on the hand pulley, so setting the needle position by hand takes little effort.

Juki DDL-8100e bed and throat plate, with the mounting seats for attachments

Attachment mounting seats

Ready for folders and guides

The bed comes with extra seats for mounting attachments, which Juki says hold up to frequent changes. The hinge is placed where the fabric cannot catch on it.

On the factory floorExtra seats on the bed take folders and guides and hold up to frequent changes, so the mechanic swaps attachments between styles as often as the line needs.

  • Low vibration and noise

    Juki designed the frame for balance and rigidity. Its manual gives 80 dB(A) at the workstation at 4,200 stitches a minute.

  • Low-tension sewing

    Juki tuned the sewing mechanism for low thread tension, so seams come out even across different cloths.

  • Light-touch stitch dial

    Stitch length up to 5 mm, set on a dial on the arm without tools.

Juki also builds the DDL-8100eH for heavy-weight materials: 4,000 spm, 35 mm needle bar stroke and DB×1 #20 to #23 needles. Ask us if your line needs it.

Juki DDL-8100e specifications

Sewing

Max sewing speed4,500 stitches/min
Max stitch length5 mm
NeedleDB×1 (#14 fitted), sizes #9-#18
Presser foot lift5.5 mm by hand, 13 mm by knee
Needle bar stroke30.7 mm
Feed dog3-row

Hook and lubrication

HookAutomatic-lubricating full-rotary hook
LubricationAutomatic
Lubricating oilJUKI MACHINE OIL No. 7 (ISO VG7)
Noise at the workstation80 dB(A) at 4,200 stitches/min

Build and drive

ApplicationLight to medium-weight materials
DriveV-belt from a motor under the table; Juki's standard is a 400 W clutch motor
Thread trimmerNone, trimmed by hand
Machine head weight26 kg
StandardJUKI ECO PRODUCTS

Figures from Juki's DDL-8100e catalogue (June 2022) and the DDL-8100e instruction manual (noise, motor).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki DDL-8100eFull specifications from Juki, PDF Download

Juki single-needle lockstitch machines side by side

Juki DDL-8700 single-needle lockstitch sewing machine
Juki DDL-8700
Juki DDL-8700-7 lockstitch sewing machine with automatic thread trimmer
Juki DDL-8700-7
Juki DDL-5550N single-needle lockstitch sewing machine
Juki DDL-5550N 		This machine

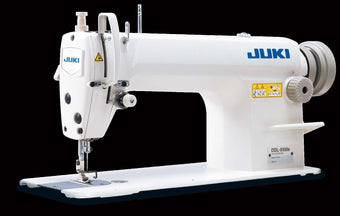

Juki DDL-8100e
Juki DDL-8100e
Best forMedium-weight garments on a manual headLines that want trimming and backtack done automaticallyMedium-weight work, more room under the armLight to medium-weight work at 4,500 spm
Drive and motorV-belt, motor under the tableM92 450 W servo, SC-920C boxBelt, motor under the tableV-belt, motor under the table
Thread trimmerNo, trimmed by handAutomaticNo, trimmed by handNo, trimmed by hand
Max speed5,500 spm5,000 spm5,500 spm4,500 spm
Stitch lengthUp to 5 mmUp to 4 mmUp to 5 mmUp to 5 mm
LubricationAutomatic, oil panAutomatic, oil panAutomatic, oil panAutomatic, oil pan
View DDL-8700View DDL-8700-7View DDL-5550NYou are here

Questions about the Juki DDL-8100e

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the DDL8100E the same as the Juki DDL-8100e?

Yes. DDL8100E, DDL 8100e, Juki 8100 and DDL-8100e all mean the same Juki machine. Juki writes the model with a small e.

What is the price of the Juki DDL-8100e in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the table and stand, the motor and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki DDL-8100e in Ghana, Kenya or Ethiopia?

It depends on the quantity, the table and motor, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Is the DDL-8100e suited to a factory production line?

Yes, for straight seams on light and medium-weight fabric where 4,500 stitches a minute is enough. Operators trim the thread by hand. For faster lines, or lines that want automatic trimming, we suggest the DDL-8700 or DDL-8700-7. We supply them by the line, with tables, stands, motors, installation and training.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from DDL-8100e lockstitch stations to overlock, interlock, buttonhole and bartack machines, and can visit your factory for an assessment first.

DDL-8100e vs DDL-8700: what is the difference?

Both are manual, belt-driven Juki heads with a 5 mm stitch and 13 mm knee lift. Juki rates the DDL-8100e at 4,500 stitches a minute with a 3-row feed dog, and the DDL-8700 at 5,500 stitches a minute with a 4-row feed dog. The DDL-8100e head weighs 26 kg against 28 kg for the DDL-8700.

Can the DDL-8100e sew heavy fabric?

The standard DDL-8100e is for light to medium-weight materials. For heavy-weight work Juki makes the DDL-8100eH, rated at 4,000 stitches a minute with DB×1 #20 to #23 needles and a 35 mm needle bar stroke. Tell us the fabric and we advise which head fits.

Where can I find the DDL-8100e manual, threading diagram and parts list?

Send us the model from your machine's plate on WhatsApp and we send Juki's instruction manual, which shows the threading, and the parts list for that exact version. We supply spare parts for the DDL-8100e, and our technicians can help when the machine needs adjusting.

Do you deliver the DDL-8100e to Riyadh, Accra, Nairobi and Addis Ababa?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the DDL-8100e working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own fabric to test.
