A walking foot lockstitch machine for leather, upholstery and other thick material.

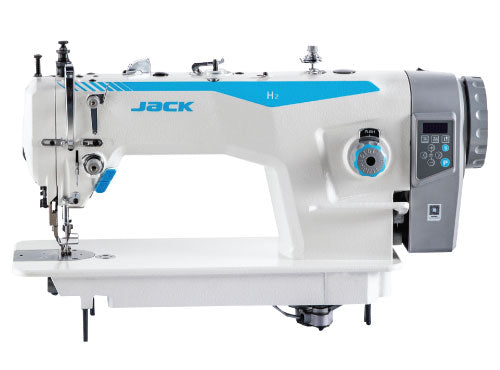

The Jack H2-A is a 1-needle top and bottom feed lockstitch machine with the motor built into the head. The top feed moves the upper layer at the same rate as the lower one, which is what stops thick or slippery material shifting under the foot on a long seam.
Jack states that the 750 W motor and the top feed let the machine sew 10 layers of medium-light leather, and that the puncture force is 36% higher than on the machine it replaced. Jack states that the energy saving against its older models is 70%, and that mounting the motor directly on the shaft removes vibration and makes the machine quieter. Jack also states that the upper needle bar is sealed and lubricated with solid grease so it does not leak oil onto the material, that a graduated lever sets the stroke of the alternating feet to the thickness of the work, and that the self-locking knob adjusts the stitch up to 8 mm, reaching 12 mm on the H2-A-CZ-12.
Key features
Top and bottom feed, so both layers move together
750 W direct drive motor built into the head
Graduated lever for the stroke of the alternating feet
Sealed upper needle bar, greased rather than oiled, to keep oil off the material
Self-locking stitch knob, up to 8 mm, and up to 12 mm on the H2-A-CZ-12
Panel for speed and needle stop position, with a safety stop and a quick reset
Specification published by Jack
Model
Application
Needle
Threads
Stitch length (mm)
Presser foot lift (mm)
Dimensions (mm)
Net / gross weight (kg)
H2-A-CZ
Normal material
DP x 17, 20-23#
2
8
up to 16
720 x 280 x 570
35 / 42
H2-A-CZ-12
Large stitch length
DP x 17, 22#
2
12
up to 16
720 x 280 x 570
35 / 42
Specification table published by Jack for the H2 series. Jack heads the 8 mm and 12 mm column needle length in its table and calls the same figures the stitch length on its product page. No maximum sewing speed is listed here, because Jack publishes two different figures for it. Ask us to confirm the speed and the current specification before you order.
Al Borj Machinery is Sharjah's authorised Jack distributor. We deliver, install, train your operators and service the machine across the UAE, Saudi Arabia and the wider GCC.
