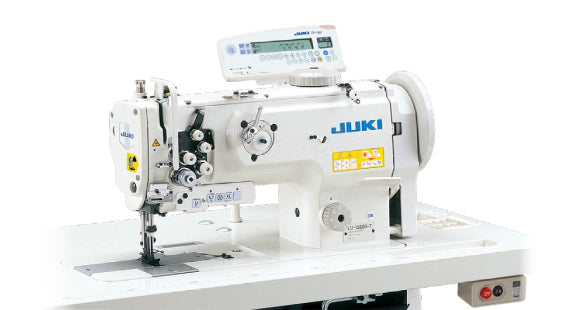

Juki LU-1560N Double Needle Walking Foot Sewing Machine (Unison Feed)
Also listed as LU1560N, LU 1560N, LU-1560, LU 1560, LU1560 and 1560
A two-needle (double needle) unison-feed machine that sews two parallel rows of lockstitch in one pass through heavy material. Car-seat, sofa and bag lines use it for twin topstitching on leather, vinyl and fabric seams.
Built for Automotive interiorsCar seat upholsteryHome textiles and furniture
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 2,500spmMax speed
- 9mmMax stitch length
- 4.8-12.7mmNeedle gauge
- 16mmFoot lift by knee
- 5,000+factories supplied by Al Borj in the Middle East and Africa
The LU-1560N up close
4 photos · tap to enlargeThe Juki LU-1560N in 30 seconds
What it is
An industrial 2-needle lockstitch machine with unison feed (needle feed, walking foot and feed dog), Juki's rectangular feed, two vertical-axis double-capacity hooks and an automatic lubricating system with a sub oil pan and double filter.
Who it's for
Car-seat and car-interior plants, sofa and furniture factories, and makers of bags, cases and cargo belts in the UAE, the GCC and Africa that sew twin decorative or structural seams.
Why this model
Pick it when a seam needs two even rows, such as twin topstitching on seats and sofas. For a single row on extra heavy material pick the LU-1508NH; for lighter single-needle upholstery, the DU-1181N.
Putting the LU-1560N on a factory line
On seat and sofa lines the LU-1560N does the twin topstitching after the panels are joined, so both rows come out parallel in one pass. We quote by the line for factories in the UAE, the GCC, Ghana, Kenya and Ethiopia, and stay with you after the machines are running.
- 01
Factory assessment
We look at what you make, the materials and thread you sew and your daily output, then recommend the machine mix for each line.
- 02
Quote by the line
Machines, tables and stands, motors, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up every machine at your factory, set the walking-foot stroke for your material and train your operators on site.
- 04
Parts and maintenance
Genuine spare parts, presser feet and needle plates, and annual maintenance contracts for every machine on the floor.
What the LU-1560N does on a factory floor
Unison feed, two needles
Two rows of stitches in one pass, with no slip between the layers
The needles, walking foot and feed dog move the material together. Juki states the compound feed keeps the ratio of the walking foot and presser foot movement the same as the material gets thicker, which helps stop the top and bottom layers slipping on heavy material.
On the factory floorThe needles, walking foot and feed dog move the material together, so the top and bottom layers do not slip under the two rows of stitches.
Needle gauge
Choose the distance between the rows when you order
Juki builds the LU-1560N with a needle gauge of 4.8, 6.4, 7.9, 9.5 or 12.7 mm (3/16 to 1/2 inch), chosen when the machine is ordered. Juki also lists other gauges, from 3.2 to 31.8 mm, as separate parts.
On the factory floorThe needle gauge is chosen when you order, so the distance between the two rows matches your seat or sofa design.
Vertical-axis large hooks
Two double-capacity hooks, fewer bobbin changes
Each needle has its own vertical-axis double-capacity hook, which holds a bigger bobbin than a standard hook. Juki adds an automatic lubricating system with a sub oil pan and a double filter that keeps dust out of the oil.
On the factory floorEach needle has a double-capacity hook that holds a bigger bobbin, so the operator stops less often to change bobbins on long seams.
16 mm lift
The knee lifter raises the foot to 16 mm, and 9 mm by hand, for padded panels.
Walking stroke 2.5-6.5 mm
The walking foot and presser foot stroke is set to the height of the thickest part of the seam.
Safety clutch
Guards the hooks against breakage; the machine is reset by pressing a button.
Also available: the LU-1560N-7 adds Juki's automatic thread trimmer, automatic reverse feed, a pneumatic auto-lifter and a dial for the walking-foot stroke. The LU-1561N is the version with gauges for Europe, and the LU-1565N has a split needle bar for corners.
Juki LU-1560N specifications
Sewing
| Application | Heavy-weight materials |
|---|---|
| Max sewing speed | 2,500 stitches/min |
| Max stitch length | 9 mm, forward and reverse |
| Needle | 135×17 (Nm 160) at delivery, Nm 125-180 |
| Thread | #30-#5 (B46-B138, Nm 60/3-20/3) |
| Presser foot lift | By hand 9 mm, by knee 16 mm |
Feed and hooks
| Needles | 2 |
|---|---|
| Needle gauge | 4.8, 6.4, 7.9, 9.5 or 12.7 mm |
| Feed | Unison feed, rectangular feed |
| Walking foot stroke | 2.5-6.5 mm (alternating vertical movement) |
| Needle bar stroke | 36 mm |
| Hooks | Vertical-axis double-capacity hooks |
Build
| Model | LU-1560N |
|---|---|
| Lubrication | Automatic, sub oil pan and double filter |
| Lubricating oil | Juki New Defrix Oil No.2 (ISO VG32) |
| Arm space | 255 mm, needle to arm |
| Bed size | 517 × 178 mm |
| Weight | 45 kg, machine head |
Figures from Juki's LU-1500N series catalogue (February 2026) and Juki's LU-1560N series page on juki.com.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Juki heavy-duty walking-foot machines side by side
| Feature |
 |
 |
This machine
 |
|---|---|---|---|
| Best for | Upholstery, bags, leather and heavy uniforms | Extra heavy leather, webbing, belts and canvas | Twin seams on car seats, sofas and bags |
| Feed | Top and bottom feed | Unison feed, complete rectangular | Unison feed, rectangular |
| Needles | 1, DP×17 #14-#23 | 1, 190R or 135×17 | 2, gauge 4.8-12.7 mm |
| Max speed | 2,000 spm | 2,000 spm | 2,500 spm |
| Max stitch length | 9 mm | 10 mm | 9 mm |
| Foot lift (knee) | 15 mm | 16 mm | 16 mm |
| Link | View DU-1181N | View LU-1508NH | You are here |
Questions about the Juki LU-1560N
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the LU1560 the same as the Juki LU-1560N?
Yes. LU1560, LU-1560 and LU 1560 are names people use for the Juki LU-1560N two-needle walking foot. On a Juki order it is written LU1560N with a code for the needle gauge.
What is the price of the Juki LU-1560N in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the quantity, the table and motor, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price for the LU-1560N and the delivery time, usually within one working day.
What is the price of the Juki LU-1560N in Ghana, Kenya or Ethiopia?
It depends on the quantity, the table and motor, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.
Is the LU-1560N suited to a factory production line?
Yes. It runs at up to 2,500 stitches a minute, lubricates itself and sews both rows in one pass, so one operator does the twin topstitching that would otherwise take two runs. We supply it by the line, with tables, motors, installation and training.
Can you equip a whole line, not just this machine?
Yes. Tell us what you make, the materials and your daily output target. We recommend the machine mix for the line, from flat lockstitch and walking-foot machines to post-bed, cylinder-bed and long-arm machines, and can visit your factory for an assessment first.
Which needle gauges can I order for the LU-1560N?
Juki builds it with a 4.8, 6.4, 7.9, 9.5 or 12.7 mm gauge (3/16, 1/4, 5/16, 3/8 or 1/2 inch), chosen when you order. Gauges from 3.2 mm up to 31.8 mm are available from Juki as separate parts. Send us a photo of your seam and we work out the gauge with you.
Does the LU-1560N have a thread trimmer?
No. The LU-1560N is the version without a trimmer. The LU-1560N-7 adds Juki's automatic thread trimmer, which Juki states cuts thread as thick as #5, plus automatic reverse feed and a pneumatic foot lifter. We quote either.
Is the LU-1560N a double needle walking foot machine?
Yes. Double needle, two-needle and twin needle all describe it: two needles sew two parallel rows of lockstitch in one pass, and the needles, the walking foot and the feed dog move the material together, which Juki calls unison feed. Juki rates it at 2,500 stitches a minute with up to 9 mm stitch length, and builds it with a 4.8, 6.4, 7.9, 9.5 or 12.7 mm needle gauge.
Where can I find the LU-1560N manual, threading diagram and parts list?
Send us the model from your machine's plate on WhatsApp and we send Juki's instruction manual, which shows the threading, and the parts list for that exact version. We supply spare parts for the LU-1560N, and our technicians can help when the machine needs adjusting.
Do you deliver the LU-1560N to Riyadh, Accra, Nairobi and Addis Ababa?
Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.
Can I see the LU-1560N working before I buy?
Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own material and thread to test on the LU-1560N.
Spare parts for the Juki LU-1560N
2 parts for this machine are listed with their part numbers, and 66 Juki parts in all. We supply thousands more: send us the part number, the machine model or a photo of the old part.
