Juki DDL-9000C Series, Direct-Drive Digital Lockstitch Sewing System

Juki DDL-9000C Series, Direct-Drive Digital Lockstitch Sewing System

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Juki's newest digital lockstitch system, for factories that want exact, repeatable settings on every machine.

The Juki DDL-9000C Series is a direct-drive, high-speed single-needle lockstitch machine with an automatic thread trimmer. Sewing machine adjustments are fully digital, so a setting made once can be saved and copied to other machines on the line with total accuracy. This helps sewing rooms in Sharjah and across the UAE keep quality consistent across every operator and every shift, on materials from light garments to heavier technical fabrics.

Key features

  • Digital feed mechanism: feed dog height adjusts on the operation panel to match the material

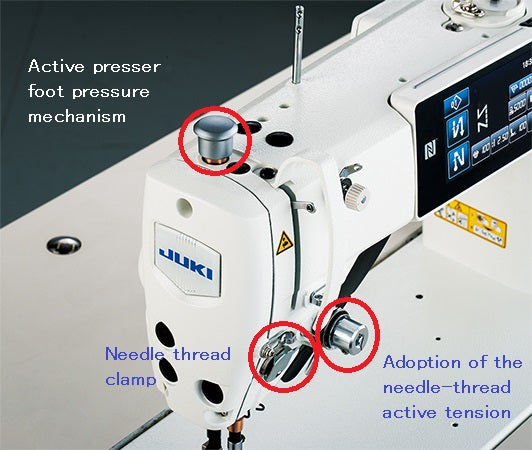

  • Digital presser foot pressure control, with automatic detection of multi-layered sections
  • Short thread trimming: as little as 3 mm of thread remains on the material after trimming
  • Direct-drive compact AC servomotor (400W) for fast, precise stitching

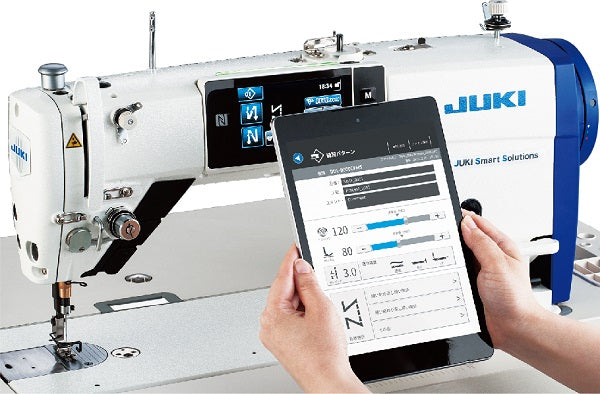

  • Data transfer to an Android tablet in contactless mode, for quick setting checks across the line
  • USB port on the operation panel for data management and software updates

Specifications

Spec Value
Max. sewing speed 5,000 sti/min (stitch length up to 4 mm); 4,000 sti/min (stitch length 4.05-5 mm)
Max. stitch length 5 mm
Needle system DB x 1 / DB x 5 (#11) #9-#18 medium-weight; DB x 1 / DB x 5 (#21) #20-#23 heavy-weight
Presser foot lift By hand: 5.5 mm; By knee: 15 mm; Auto: 5.0-8.5 mm (2-stage)
Feed type Vertically- and horizontally-driven digital feed mechanism
Lubrication Semi-dry or minute-quantity lubrication; JUKI New Defrix Oil No. 1 or JUKI Machine Oil 7
Drive type Direct-drive compact AC servomotor (400W)
Applications Medium and heavy-weight garment and technical fabrics
Request a quote

Get a price for the Juki DDL-9000C Series, Direct-Drive Digital Lockstitch Sewing System

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts
