Juki DDL-8700 Industrial Straight Stitch Sewing Machine

Also listed as DDL8700, DDL 8700 and 8700

The single-needle lockstitch head that garment and uniform lines are built around. Juki rates it at 5,500 stitches a minute with a 5 mm stitch on light and medium-weight fabric, and it is a plain mechanical head that factory mechanics already know.

Built for Garment factoriesUniform factoriesAbaya and kandoora production

Get the AED price on WhatsApp Request a factory assessment

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki DDL-8700 catalogue (PDF)Full specifications from Juki Juki DDL-8700 catalogue pages and key figuresEvery machine catalogue in one library
Juki DDL-8700 series lockstitch machine, pictured as the DDL-8700-7 with operation panel on its table
Pictured: the DDL-8700-7, with trimmer and operation panel
  • 5,500spmMax speed
  • 5mmMax stitch length
  • 13mmKnee lift
  • 28kgHead weight
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The DDL-8700 up close

5 photos · tap to enlarge
DDL-8700 Get a quote

The Juki DDL-8700 in 30 seconds

What it is

An industrial single-needle lockstitch machine head with a full-rotary hook and automatic lubrication. A motor under the table drives it by V-belt, and the operator trims the thread by hand.

Who it's for

Garment, uniform and workwear factories that need many straight-seam stations on shirts, trousers and other light to medium-weight cloth. It is the model many factories ask for by name.

Why this model

Pick the DDL-8700 when a line needs speed and a simple head. Pick the DDL-8700-7 when you want the thread trimmed and the seam backtacked automatically, or the DDL-8100e for lighter work at 4,500 stitches a minute.

Setting up a factory line with the DDL-8700

Most DDL-8700 machines go onto factory production lines. We quote by the line and stay with you after the machines are running.

Request a factory assessment Plan your production line
  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, tables and stands, motors, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts and annual maintenance contracts for every machine on the floor.

What the DDL-8700 does on a factory floor

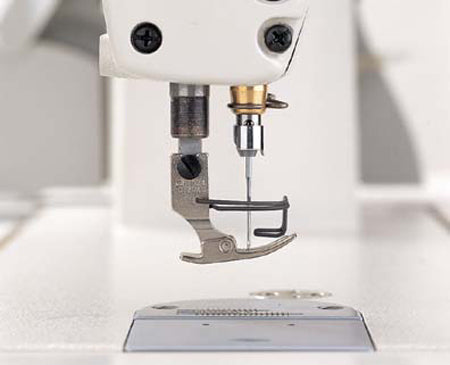

Juki DDL-8700 presser foot raised above the throat plate, close-up of the needle bar and needle

13 mm presser foot lift

Room to slide thick seams under the foot

Juki gives the DDL-8700 a 5.5 mm lift by hand and up to 13 mm with the knee lifter. Its manual sets the knee lift at 10 mm as standard, and the mechanic can raise it to 13 mm.

On the factory floorThe knee lifter raises the foot up to 13 mm, so the operator slides thick seams under it while both hands stay on the garment.

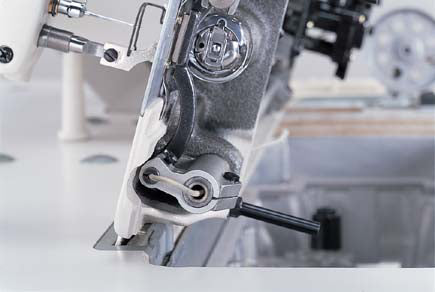

Juki DDL-8700 head tilted back to show the full-rotary hook and bobbin case under the bed

Full-rotary hook, automatic lubrication

Oil to the hook from a pan under the head

The hook is Juki's automatic-lubricating full-rotary type, fed from an oil pan with HIGH and LOW marks. An oil sight window shows splashing oil when lubrication is right, and a screw on the hook shaft bushing sets how much oil reaches the hook.

On the factory floorThe hook takes its oil automatically from the pan under the head, so nobody oils it by hand, and the sight window shows the mechanic when lubrication is right.

Juki DDL-8700 stitch length dial and hand pulley on the machine arm

Light-touch stitch dial

Stitch length set by hand, up to 5 mm

Stitch length is set on a dial on the arm that Juki calls light-touch, up to 5 mm. The throat plate carries marker grooves that operators use as a guide for seam allowance.

On the factory floorBecause stitch length is set on a dial on the arm, the supervisor changes it between operations by hand, and the throat plate grooves guide the seam allowance.

  • Feed dog set with an eccentric pin

    Juki added an eccentric pin for adjusting the feed dog, which makes feed settings quicker during maintenance.

  • Attachment mounting seat

    A seat on the bed for folders and guides, so attachments go on and off without wearing the bed surface.

  • Low-tension sewing

    Juki tuned the sewing mechanism for low thread tension, so seams come out even across different cloths.

Juki also builds the DDL-8700A for light-weight fabric (4,000 spm, 4 mm stitch, DA×1 needles) and the DDL-8700H for heavy-weight fabric (4,000 spm, 5 mm stitch, DB×1 #19 to #23). Ask us if your line needs one of them.

Juki DDL-8700 specifications

Sewing

Max sewing speed5,500 stitches/min
Max stitch length5 mm
NeedleDB×1 (#14 fitted), sizes #9-#18
Presser foot lift5.5 mm by hand, 13 mm by knee
Needle bar stroke30.7 mm
Feed dog4-row (3-row on request)

Hook and lubrication

HookAutomatic-lubricating full-rotary hook
LubricationAutomatic, from the oil pan under the head
Lubricating oilJUKI New Defrix Oil No. 1 (ISO VG7)
Noise at the workstation83.5 dB(A) at 5,000 stitches/min

Build and drive

ModelDDL-8700 (medium-weight)
ApplicationLight and medium-weight materials
DriveV-belt from a motor under the table; Juki's standard is a 400 W clutch motor
Thread trimmerNone, trimmed by hand
Machine head weight28 kg

Figures from Juki's DDL-8700 catalogue, Juki's 2023 general catalogue and the DDL-8700 instruction manual (noise, motor, lubrication).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki DDL-8700Full specifications from Juki, PDF Download

Juki single-needle lockstitch machines side by side

Juki DDL-8700-7 lockstitch sewing machine with automatic thread trimmer
Juki DDL-8700-7
Juki DDL-8100e single-needle lockstitch sewing machine
Juki DDL-8100E
Juki DDL-5550N single-needle lockstitch sewing machine
Juki DDL-5550N 		This machine
Juki DDL-8700
Juki DDL-8700
Best forLines that want trimming and backtack done automaticallyLight to medium-weight work at 4,500 spmMedium-weight work, more room under the armMedium-weight garments on a manual head
Drive and motorM92 450 W servo, SC-920C boxV-belt, motor under the tableBelt, motor under the tableV-belt, motor under the table
Thread trimmerAutomaticNo, trimmed by handNo, trimmed by handNo, trimmed by hand
Max speed5,000 spm4,500 spm5,500 spm5,500 spm
Stitch lengthUp to 4 mmUp to 5 mmUp to 5 mmUp to 5 mm
LubricationAutomatic, oil panAutomatic, oil panAutomatic, oil panAutomatic, oil pan
View DDL-8700-7View DDL-8100EView DDL-5550NYou are here

Questions about the Juki DDL-8700

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the DDL8700 the same as the Juki DDL-8700?

Yes. DDL8700, DDL 8700, Juki 8700 and DDL-8700 all mean the same Juki machine. The DDL-8700-7 is a different model in the same family, with an automatic thread trimmer and a servo motor.

What is the price of the Juki DDL-8700 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the table and stand, the motor and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki DDL-8700 in Ghana, Kenya or Ethiopia?

It depends on the quantity, the table and motor, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Is the DDL-8700 suited to a factory production line?

Yes. Juki rates it at 5,500 stitches a minute and it is built for long shifts on straight seams. Operators trim the thread by hand, so for lines that want automatic trimming and backtacking we suggest the DDL-8700-7. We supply either by the line, with tables, stands, motors, installation and operator training.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from DDL-8700 lockstitch stations to overlock, interlock, buttonhole and bartack machines, and can visit your factory for an assessment first.

What is the difference between the DDL-8700 and the DDL-8700-7?

The DDL-8700 is the manual model: a belt-driven head, the thread trimmed by hand, 5,500 stitches a minute and up to 5 mm stitch length. The DDL-8700-7 adds an automatic thread trimmer, automatic reverse feed and Juki's SC-920C control box with the 450 W M92 servo motor, plus an operation panel that counts output. Juki rates the DDL-8700-7 at 5,000 stitches a minute and 4 mm stitch length. Choose the DDL-8700-7 when time spent trimming and backtacking holds the line back.

What fabrics and needles does the DDL-8700 take?

Juki lists it for light and medium-weight materials: shirting, cotton and uniform cloth. It takes DB×1 needles from size 9 to 18 and leaves the factory with a #14. For heavy materials Juki makes the DDL-8700H, which takes #19 to #23 needles. Ask us if you need it.

Is the Juki DDL-8700 a direct-drive machine?

No. Juki builds the DDL-8700 as a belt-driven head: a V-belt runs from a motor under the table, and Juki's standard motor is a 400 W clutch motor. We quote the head with the table, stand and motor together.

Where can I find the DDL-8700 manual, threading diagram and parts list?

Send us the model from your machine's plate on WhatsApp and we send Juki's instruction manual, which shows the threading, and the parts list for that exact version. We supply spare parts for the DDL-8700, and our technicians can help when the machine needs adjusting.

Do you deliver the DDL-8700 to Riyadh, Accra, Nairobi and Addis Ababa?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the DDL-8700 working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own fabric to test.
