Jack JK-T1900G Computerised Bartack (Bar Tacking) Machine
Also listed as 1900, JK-1900, JK 1900, 1900G, JK-T1900, JKT1900G, JK-T1900GS, JK-T1900GH, JK-T1900GSK and JK-T1900GHK
A computerised bartack machine for jeans, trouser, uniform and bag lines. It locks belt loops, pocket corners and other stress points at up to 3,200 stitches a minute, and the K versions switch to button sewing in about a minute.
Built for Garment factoriesUniform factoriesAbaya and kandoora production
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 3,200spmMax speed (GS)
- 40 × 30mmSewing area
- 13mmFoot lift
- 1minBartack to buttons (K)
- 5,000+factories supplied by Al Borj in the Middle East and Africa

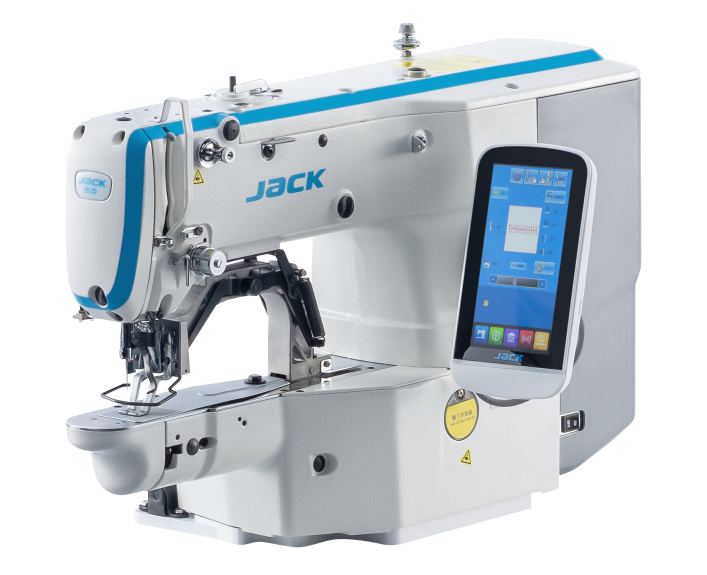

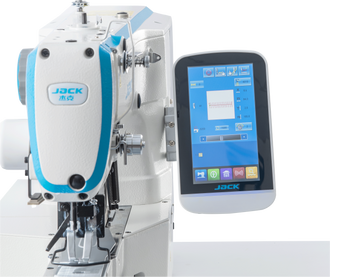

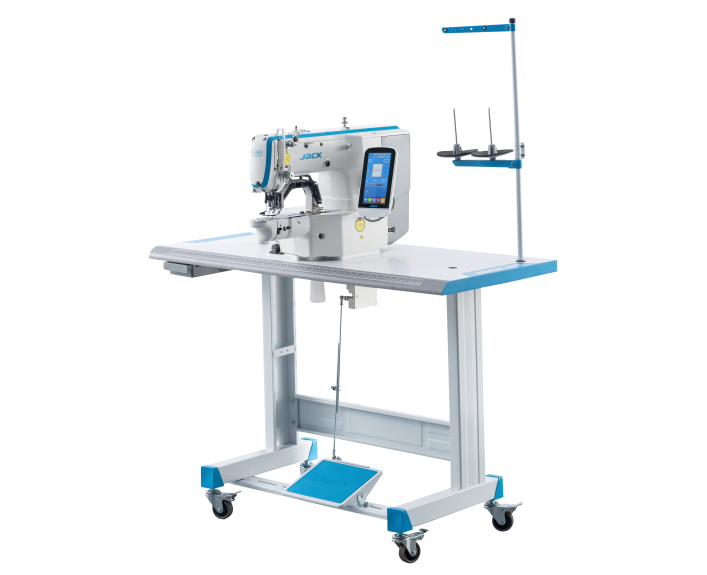

The JK-T1900G up close
5 photos · tap to enlargeThe Jack JK-T1900G in 30 seconds
What it is
A single-needle, two-thread lockstitch bartacker with a 40 × 30 mm sewing area, automatic presser foot lift, thread trimmer and wiper, and a touch screen or dot-matrix panel.
Who it's for
Trouser, jeans, uniform and workwear factories in the UAE, the GCC and Africa, from Ghana and Benin to Kenya and Ethiopia, and bag, cap and knitwear makers who need a version set up for their material.
Why this model
Take the GS for light and medium fabric, the GH for jeans and heavy cloth and the GM for knits. Order a K version (GSK, GHK, GMK) when one machine has to sew bartacks one week and buttons the next.
Setting up bartacking on a trouser or uniform line
A trouser line needs bartacks at the belt loops, pockets and fly; a uniform line at pockets, epaulettes and straps. We work out how many bartackers each line needs and quote them with the rest of the machines.
- 01
Factory assessment
We look at your garments, the bartacks on each one and your daily output, then recommend the bartack and button machines for each line.
- 02
Quote by the line
Machines, tables and stands, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up every machine at your factory and train operators and mechanics on patterns, clamps and thread tension.
- 04
Parts and maintenance
Genuine Jack spare parts and annual maintenance contracts for every machine on the floor.
What the JK-T1900G does on a factory floor
40 × 30 mm sewing area
Belt loops, pockets and flies under one clamp

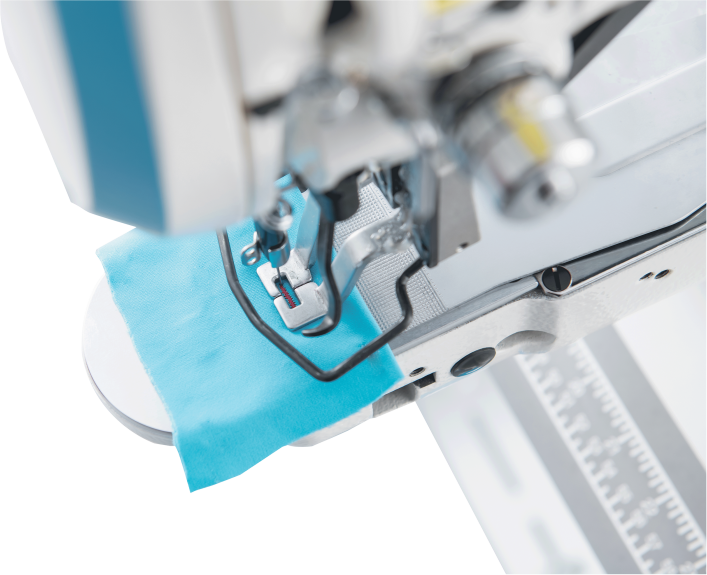

The clamp moves the fabric through a 40 × 30 mm area under the needle, so the same machine sews short bartacks, crosses, circles and small patterns. Jack rates the GS version for light and medium fabric at 3,200 stitches a minute.
On the factory floorBecause the clamp moves the fabric through a 40 × 30 mm area, one machine sews belt loops, pocket corners and flies as short bartacks, crosses or circles.
Heavy fabric version (GH)
Bartacks on jeans and heavy cloth
The GH version takes a heavier DP×17 #19 needle and runs at up to 2,700 stitches a minute. Jack shows the series bartacking jeans belt loops, luggage and fishing net.
On the factory floorBecause the GH version takes a heavier DP×17 #19 needle, the line can bartack jeans belt loops and luggage in heavy cloth.
Knit version (GM)
Bartacks on knits without thread breaks
The GM version, with a DP×5 #11 needle, is set up for knitted fabric. Jack names underwear, bras and other knitwear for it and says it sews knits without breaking thread.
On the factory floorBecause the GM version is set up for knitted fabric with a DP×5 #11 needle, knitwear and underwear lines bartack stretch fabric without breaking thread.
Trims and wipes by itself
Every version lifts the foot, trims and wipes the thread. Jack states the thread tail is tacked in, so the bartack needs no hand trimming.

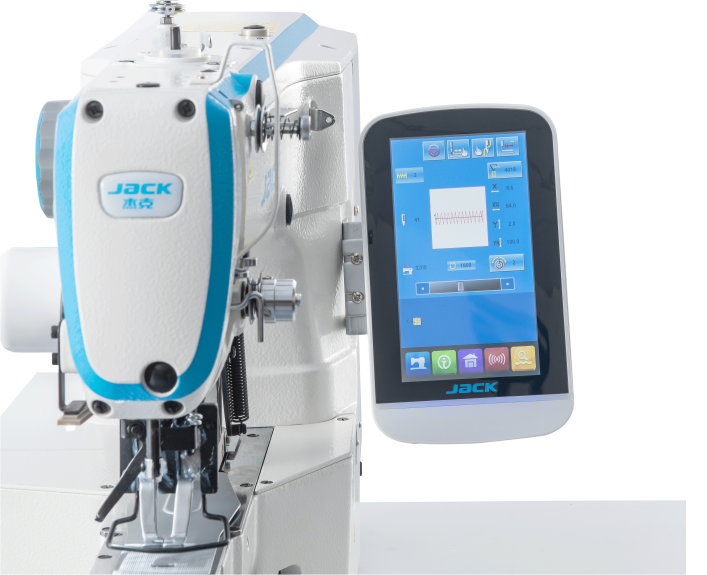

Touch screen or dot-matrix panel
The panel shows the pattern and its settings, so operators do not have to remember them.
Bartack or buttons (K versions)
On the GSK, GHK and GMK, Jack quotes about one minute to change between bartacking and button sewing.
Other versions in the series: GY for cap holes, GN for fishing net, GL for socks, and the JK-T1906GS and JK-T1906GP with a 60 × 50 mm area for small patterns and elastic joining.
See the JK-T1900G sew
Jack JK-T1900G specifications
Sewing
| Max sewing speed | 3,200 stitches/min (GS, GSK); 2,700 stitches/min (GH, GM) |
|---|---|
| Sewing area (X × Y) | 40 × 30 mm |
| Needle | DP×5 #16 (GS); DP×17 #19 (GH); DP×5 #11 (GM) |
| Presser foot lift | 13 mm |
| Other versions | GSXK short thread; GY cap holes; GN fishing net; GL socks; JK-T1906GS/GP with a 60 × 50 mm area |
Drive and control
| Machine type | Computerised lockstitch bartack, 1 needle, 2 threads |
|---|---|
| Automatic functions | Presser foot lift, thread trimmer, thread wiper |
| Control panel | Touch screen or dot-matrix panel |
| Bartack to buttons | About 1 minute on K versions (GSK, GHK, GMK) |
Build
| Model | JK-T1900G series: GS light and medium fabric, GH heavy fabric, GM knits; K versions also sew buttons |
|---|---|
| Machine size | 805 × 405 × 525 mm |
| Weight | 55 kg net, 64 kg gross |
Figures from Jack's JK-T1900G/1903G/1906G catalogue (2024 edition) and the JK-T1900G product pages on chinajack.com.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
How the JK-T1900G compares
| Feature |
 |
 |
 |
This machine
 |
|---|---|---|---|---|
| Best for | Belt loops, pockets and stress points on trousers, jeans and uniforms | Shirt, uniform and trouser buttons; GR adds a feeder | Shirt, uniform and trouser button lines | Trouser, jeans and uniform bartacks; K versions sew buttons |
| Stitch | Lockstitch bartack | 1-needle lockstitch | 1-needle lockstitch | 1-needle lockstitch bartack |
| Max speed | 3,300 spm | 2,700 spm | 2,700 spm | 3,200 spm (GS); 2,700 spm (GH, GM) |
| Size range | Sewing area 40 × 30 mm | Flat buttons 8-30 mm (GR 9-22 mm) | Flat buttons 8-32 mm | Sewing area 40 × 30 mm |
| Patterns | 100 built in, 999 can be input | 2-hole and 4-hole patterns on the panel | 50 built in, 999 stored | Bartacks, crosses, circles and small patterns |
| Drive and feed | 550 W direct-drive servo | Integrated servo; auto foot lift, trimmer and wiper | Direct-drive servo, stepping-motor lifter | Integrated servo; auto foot lift, trimmer and wiper |
| Link | View LK-1900C Series | View JK-T1903 | View LK-1903C | You are here |
Questions about the Jack JK-T1900G
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Jack JK-T1900 the same machine as the JK-T1900G?
Yes. JK-T1900, JK-1900 and JK-T1900G are names for the same Jack bartack series, and JK-T1900G is Jack's current name. The letters after it give the version: GS for light and medium fabric, GH for heavy fabric, GM for knits. A K at the end (GSK, GHK, GMK) means the machine also converts to button sewing.
What is the price of the Jack JK-T1900G in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the version, the quantity, the table and stand, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Jack JK-T1900G in Ghana, Kenya or Ethiopia?
It depends on the version, the quantity, the table and stand, and delivery to your city. Send us those on WhatsApp and we reply with one quotation in AED covering the machines, delivery to your factory and installation, usually within one working day.
Is the JK-T1900G suited to a factory production line?
Yes. The GS version sews at up to 3,200 stitches a minute, and every version lifts the foot, trims and wipes the thread by itself, so the operator only positions the garment. Trouser and uniform lines usually run one or more bartackers beside the buttonhole and button machines.
Can you equip a whole line, not just the bartack machine?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for each line, from lockstitch, overlock and interlock to buttonhole, button sewing and bartacking machines, and can visit your factory for an assessment first.
Which JK-T1900G version do I need for jeans?
The GH or GHK, with a DP×17 #19 needle for heavy fabric, at up to 2,700 stitches a minute. Jack shows it on jeans belt loops and bags. For shirts, trousers and uniform cloth the GS version is enough, and it runs faster, at 3,200.
Can the same machine sew buttons?
Yes, if you order a K version. Jack sells the pair as JK-T1900GSK and JK-T1903GSK and quotes about one minute to switch between bartacking and button sewing. For a full-time button line, the JK-T1903GS or the JK-T1903GR with its automatic button feeder is the better buy.
Do you deliver the Jack JK-T1900G to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?
Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install every machine at your factory and train your operators and mechanics. After that we support you with genuine Jack spare parts and annual maintenance contracts.
Do you supply the JK-T1900G manual, parts book and error codes?
Yes. We can send Jack's instruction manual and parts list for your exact version on WhatsApp, and we supply spare parts. If the panel shows an error code, send us the code and your machine's version and we help you clear it.
What warranty does the Jack JK-T1900G carry?
Every Jack machine from Al Borj carries a 2-year warranty, handled by our own service team, with genuine Jack parts.
Can I see the JK-T1900G working before I buy?
Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring the garment you bartack, such as a pair of jeans or uniform trousers, to test it.
