Jack JK-T1903G Computerised Button Sewing (Button Attaching) Machine
Also listed as 1903, JK-1903, JK 1903, 1903G, JK-T1903, JKT1903G, JK-T1903GS, JK-T1903GSK and JK-T1903GR
A computerised button sewing machine for shirt, uniform and workwear lines. It sews 2-hole and 4-hole buttons of 8 to 30 mm at up to 2,700 stitches a minute, and the GR version adds an automatic button feeder.
Built for Garment factoriesUniform factoriesAbaya and kandoora production
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 2,700spmMax speed
- 8-30mmButton diameter
- 2.4-6.8mmHole spacing
- 10sButton change (GR)
- 5,000+factories supplied by Al Borj in the Middle East and Africa

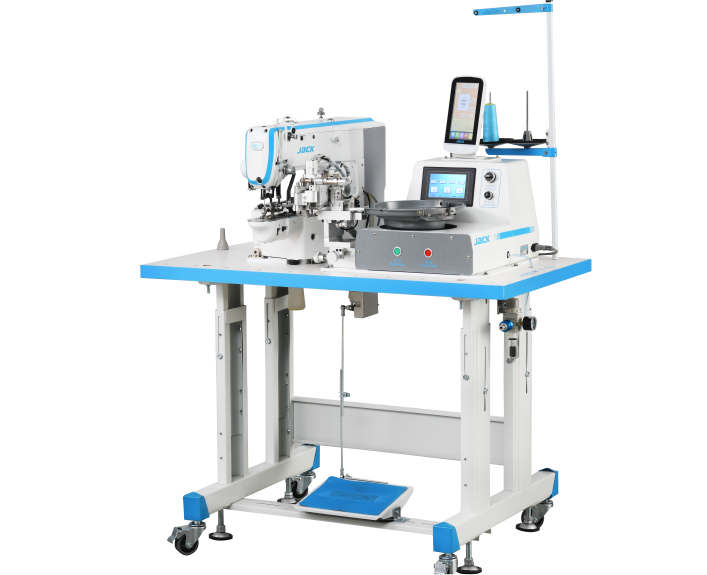

The JK-T1903G up close
4 photos · tap to enlargeThe Jack JK-T1903G in 30 seconds
What it is

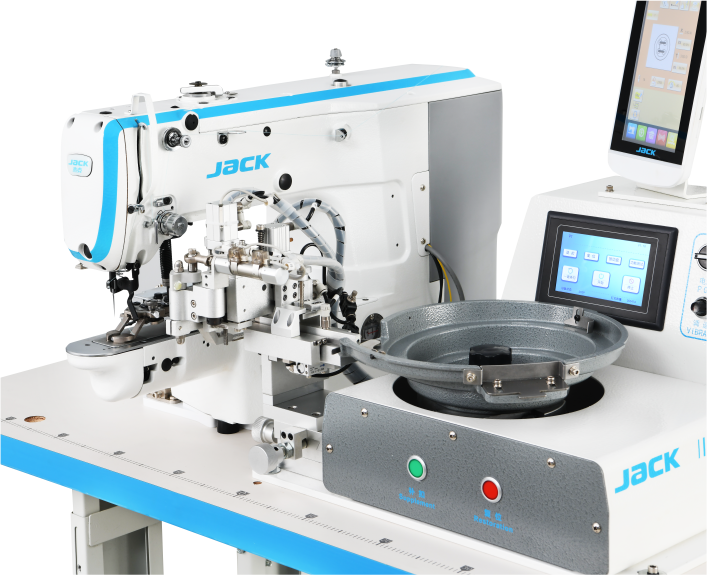

A single-needle, two-thread lockstitch button sewer with automatic presser foot lift, thread trimmer and wiper. The GS sews buttons only, the GSK also converts to bartacking, and the GR adds a vibrating bowl and a feeder arm that load the buttons.
Who it's for
Shirt, uniform, workwear and trouser factories in the UAE, the GCC and Africa, from Ghana and Benin to Kenya and Ethiopia, that sew buttons by the thousand every day.
Why this model
Pick it over the single-thread JK-T1377GK when buttons have to stay on through repeated washing: it sews a two-thread lockstitch. Pick the GR when one button size runs for hours and loading buttons by hand holds the line back.
Setting up a button section with the JK-T1903
On a shirt or uniform line the button sewer works next to the buttonhole machine. We size the section to your daily output and work out with you where the GR feeder pays for itself and where the GS is enough.
- 01
Factory assessment
We look at your garments, button sizes and daily output, then recommend the button and buttonhole machines for each line.
- 02
Quote by the line
Machines, tables and stands, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up every machine at your factory and train operators and mechanics on clamps, patterns and the feeder.
- 04
Parts and maintenance
Genuine Jack spare parts and annual maintenance contracts for every machine on the floor.
What the JK-T1903G does on a factory floor
Button clamp
Flat buttons from 8 to 30 mm
The clamp holds 2-hole and 4-hole buttons of 8 to 30 mm on the GS and GSK, with hole spacing from 2.4 to 6.8 mm each way. The machine sews at up to 2,700 stitches a minute, then trims and wipes the thread at the end of each button.
On the factory floorBecause the GS and GSK clamp takes 2-hole and 4-hole buttons from 8 to 30 mm, one machine sews both small and large buttons.

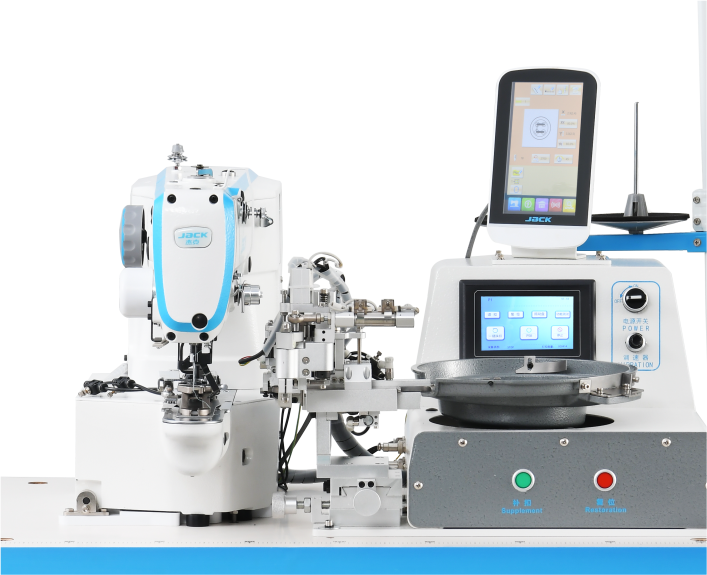

Automatic button feeder (GR)
The feeder loads the buttons, the operator handles the garment
On the JK-T1903GR a vibrating bowl lines the buttons up and an arm places each one in the clamp, the right side up. Jack rates the feeding at three times the speed of loading by hand and puts the overall gain at 50%.
On the factory floorBecause the GR feeder lines up each button and places it in the clamp, the operator keeps both hands on the garment instead of picking up buttons.

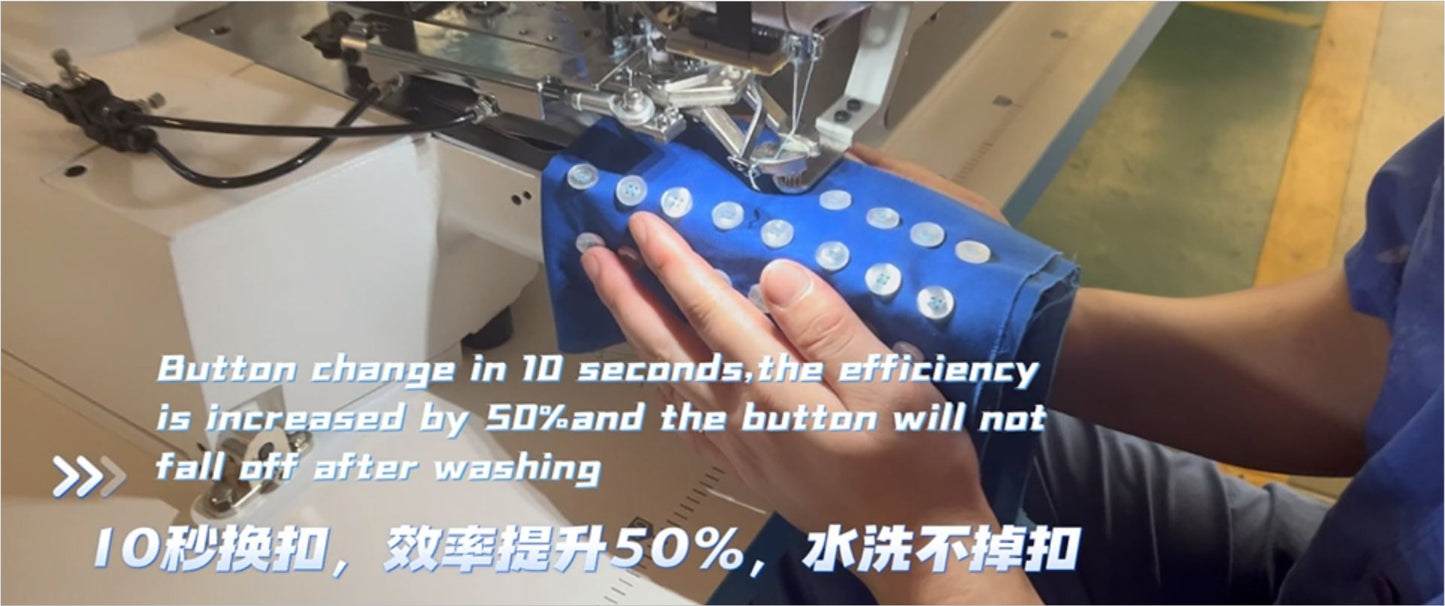

One-key button change (GR)
A new button size in about ten seconds
To change button size on the GR, the operator presses One Key Button Change on the screen and swaps the buttons in the bowl, and the feeder track sets its own width and height. Jack quotes about ten seconds per change. Repair and reset keys deal with a faulty or misfed button.
On the factory floorBecause one key and a bowl swap change the button size in about ten seconds, lines that switch buttons during a shift lose little time.
Trims and wipes by itself
The foot lifts, the thread is trimmed and the wiper clears it after every button, on all versions.
Button or bartack (GSK)
The GSK converts to bartacking. Jack quotes about one minute for the change, so one machine can cover both jobs on a small line.
Patterns on the panel
2-hole and 4-hole patterns, parallel, crossed and Z-shaped, are chosen on the operation panel.
Jack also makes the JK-T1903GAK for press and hidden snap buttons. Ask us if you need it.
See the JK-T1903G sew
Jack JK-T1903G specifications
Sewing
| Max sewing speed | 2,700 stitches/min |
|---|---|
| Button diameter | 8-30 mm (GS, GSK); 9-22 mm (GR) |
| Button hole spacing | X 2.4-6.8 mm, Y 2.4-6.8 mm |
| Needle | DP×17 #14 |
| Presser foot height | 10 mm (GS, GSK); 13 mm (GR) |
Drive and control
| Machine type | Computerised lockstitch button sewer, 1 needle, 2 threads |
|---|---|
| Automatic functions | Presser foot lift, thread trimmer, thread wiper |
| Button feeder (GR) | Vibrating bowl and feeder arm, one-key button change |
Build
| Model | JK-T1903G series: GS buttons only, GSK buttons and bartacks, GR with automatic button feeder |
|---|---|
| Machine size | 805 × 405 × 525 mm (GS, GSK); 1020 × 870 × 1390 mm (GR) |
| Weight | 55 kg net, 64 kg gross (GS, GSK); 131 kg net, 177 kg gross (GR) |
Figures from Jack's JK-T1900G/1903G/1906G catalogue (2024 edition), Jack's JK-T1903GR leaflet and the JK-T1903GR product pages on chinajack.com.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)

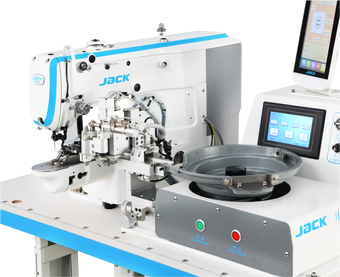

How the JK-T1903 compares
| Feature |
 |
 |
 |
This machine
 |
|---|---|---|---|---|
| Best for | Shirt, uniform and trouser button lines | Flat and shank buttons on shirts and workwear | Flat buttons on shirts and blouses, simple mechanical machine | Shirt, uniform and trouser buttons; GR adds a feeder |
| Stitch | 1-needle lockstitch | Single-thread chainstitch | Single-thread chainstitch | 1-needle lockstitch |
| Max speed | 2,700 spm | 1,500 spm | 1,500 spm | 2,700 spm |
| Size range | Flat buttons 8-32 mm | Buttons 10-28 mm flat, 10-22 mm shank | Buttons 10-28 mm | Flat buttons 8-30 mm (GR 9-22 mm) |
| Patterns | 50 built in, 999 stored | 3 patterns, changed with one key | 8, 16 or 32 stitches | 2-hole and 4-hole patterns on the panel |
| Drive and feed | Direct-drive servo, stepping-motor lifter | Integrated direct drive; motor-lifted foot | 200 W general-purpose motor | Integrated servo; auto foot lift, trimmer and wiper |
| Link | View LK-1903C | View JK-T1377GK Button Sewing Machine | View MB-1370 Series | You are here |
Questions about the Jack JK-T1903G
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Jack JK-T1903 the same machine as the JK-T1903G?
Yes. JK-T1903, JK-1903 and JK-T1903G are names for the same Jack button sewing series. The letters after it give the version: GS sews buttons only, GSK also converts to bartacking, and GR comes with the automatic button feeder on a larger table.
Is a button attaching or button fixing machine the same as the JK-T1903?
Yes. Button sewing, button attaching and button fixing machine are names for the same job. The JK-T1903 sews 2-hole and 4-hole buttons, of 8 to 30 mm on the GS and GSK, and the GR version feeds the buttons by itself.
What is the price of the Jack JK-T1903 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the version (GS, GSK or GR), the quantity, the table and stand, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Jack JK-T1903 in Ghana, Kenya or Ethiopia?
It depends on the version (GS, GSK or GR), the quantity, the table and stand, and delivery to your city. Send us those on WhatsApp and we reply with one quotation in AED covering the machines, delivery to your factory and installation, usually within one working day.
Is the JK-T1903 suited to a factory production line?
Yes. It sews at up to 2,700 stitches a minute and lifts the foot, trims and wipes the thread by itself, so the operator only places the garment. With the GR feeder the operator no longer loads each button by hand.
Can you equip a whole line, not just the button sewing machine?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for each line, from lockstitch, overlock and interlock to buttonhole, button sewing and bartacking machines, and can visit your factory for an assessment first.
Do I need the GR automatic feeder?
The GR suits lines that sew one button size for long runs, such as shirt fronts. Jack rates its feeding at three times the speed of loading by hand and the overall gain at 50%. It takes buttons of 9 to 22 mm and needs more floor space: 1020 × 870 × 1390 mm against 805 × 405 × 525 mm for the GS. For mixed, short runs the GS is usually enough.
Will the buttons stay on after washing?
The JK-T1903 sews a two-thread lockstitch, which does not run back the way a single-thread chainstitch can when a thread breaks. Jack states that buttons sewn on the GR do not come off after washing. For uniforms that go through industrial laundry, we can test your buttons and fabric before you order.
Do you deliver the Jack JK-T1903 to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?
Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install every machine at your factory and train your operators and mechanics. After that we support you with genuine Jack spare parts and annual maintenance contracts.
Do you supply the JK-T1903 manual, parts list and error codes?
Yes. We can send Jack's instruction manual and parts list for your exact version on WhatsApp, and we supply spare parts. If the panel shows an error code, send us the code and your machine's version and we help you clear it.
What warranty does the Jack JK-T1903 carry?
Every Jack machine from Al Borj carries a 2-year warranty, handled by our own service team, with genuine Jack parts.
Can I see the JK-T1903 working before I buy?
Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring your own buttons and fabric to test the clamp and stitch pattern.
