JackJK-9820 Eyelet Buttonhole Machine

Also listed as JK-T9820, T9820, JK9820, 9820 and JK 9820

A computerised eyelet buttonhole machine for jackets, jeans, trousers and workwear. It sews the round-ended buttonhole, so heavier garments get a durable hole instead of a straight one.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

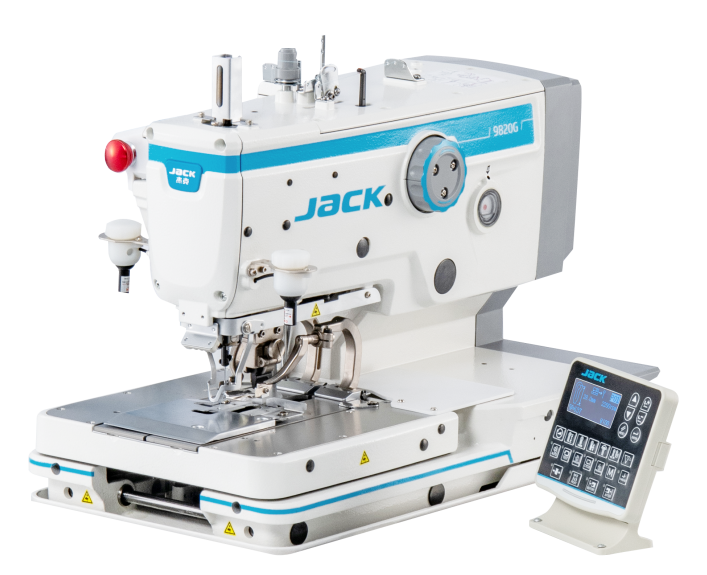

Jack JK-9820 eyelet buttonhole machine, full view of the head, panel and bed
  • 2,500rpmMax speed
  • 0.5-2.0mmStitch length
  • 1.5-5.0mmZig-zag width
  • 12-16mmFoot lifter height
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

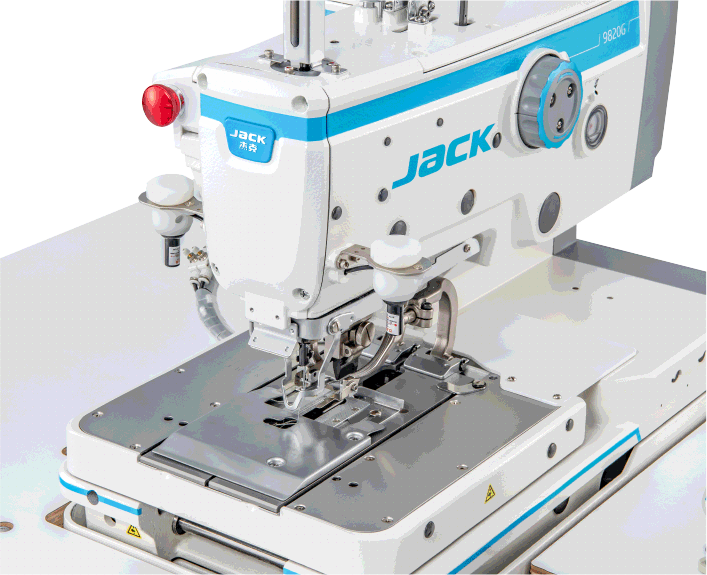

The JK-9820 up close

4 photos · tap to enlarge

The Jack JK-9820 in 30 seconds

What it is

A computerised eyelet buttonhole machine with an LCD panel, servo-controlled cloth feed and a laser start point.

Who it's for

Jacket, jeans, trouser and workwear factories in the UAE, the GCC and Africa.

Why this model

Pick it when the garment needs a round-ended eyelet buttonhole. For straight buttonholes on shirts, look at the Jack JK-T781G.

Setting up a factory line with the JK-9820

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the JK-9820 does on a factory floor

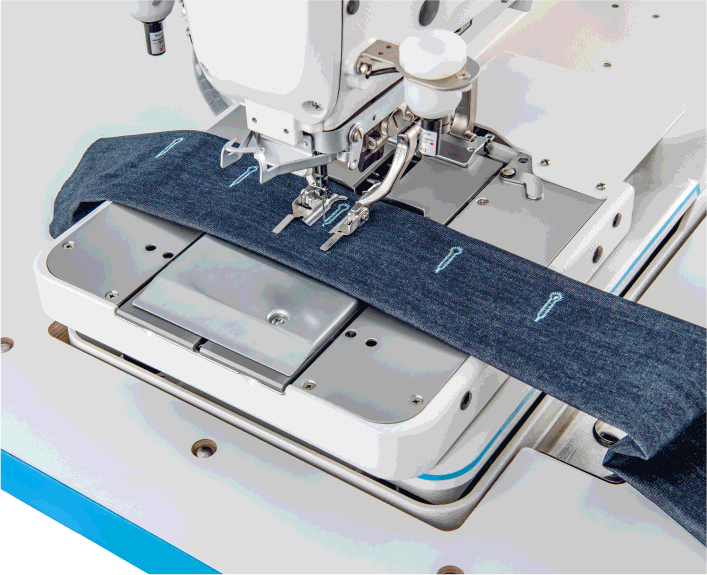

Jack JK-9820 eyelet buttonhole machine with a strip of denim under the foot

Eyelet buttonhole

The round-ended buttonhole for heavier garments

Jack shows the machine on men's and casual clothing, suits, jeans and trousers. It comes as the -01 for jackets and casual clothing and the -02 for jeans and trousers.

On the factory floorBecause the hole has a round end, heavier garments such as jeans and jackets get the buttonhole they are normally made with.

Jack JK-9820, Eyelet Buttonhole Machine

Servo-controlled feed

Accurate patterns at high speed and on heavy cloth

Jack states the servo-controlled cloth feed keeps patterns accurate at high speed and on heavy material, without the misalignment common to electronic machines. It also avoids the initial position check.

On the factory floorBecause the feed is servo controlled, each buttonhole keeps its shape when the machine runs fast or sews heavy cloth.

Jack JK-9820, Eyelet Buttonhole Machine

Laser start point

The laser marks where each hole begins

A laser marks the start point before sewing begins. The machine has a 120 mm deep cavity and a 310 mm wide feeding platform.

On the factory floorBecause the laser marks the start point, every buttonhole lands in the same place on the garment.

  • Quiet running

    Jack states noise is below 80 dB, from gears and cams made by a special process.

  • LCD panel

    Icons and text show the pattern. Knife spacing and position are adjusted on the panel.

  • Double hook thread clamp

    Jack improved the bobbin thread clamp so the thread does not fall off.

Jack JK-9820 specifications

Sewing

Stitch length0.5-2.0 mm
Zig-zag width1.5-5.0 mm
Needle system558
Footlifter height12-16 mm
Max sewing speed2,500 rpm

Build

Variants-01 jackets and casual clothing; -02 jeans and trousers
Cavity and platform120 mm deep cavity, 310 mm wide feed platform
Package size122 × 94 × 143 cm
Weight210 kg net, 255 kg gross

Figures from Jack's JK-9820 catalogue and product page.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Jack JK-9820Full specifications from Jack, PDF Download

Questions about the Jack JK-9820

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Jack JK-9820 the same as the JK-T9820?

Yes. JK-9820 and JK-T9820 are the same Jack eyelet buttonhole machine. Jack builds it as the -01 and the -02, so tell us the garment and we confirm which.

Which version is for jeans?

Jack builds the -01 for men's and casual clothing and jackets, and the -02 for jeans and trousers, with a different thread trimming set-up.

How loud is it?

Jack states the noise is below 80 dB.

What is the price of the Jack JK-9820 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Jack JK-9820 and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Jack JK-9820 before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Jack JK-9820?

A 2-year warranty, handled by our own service team, who also install the machine.

Spare parts

Genuine Jack spare parts

The wear parts for the Jack machines we sell, with Jack's own part numbers: 69 parts listed. We supply thousands more: send us the part number, the machine model or a photo of the old part.
