Cuts and sews clean buttonholes without manual thread trimming.

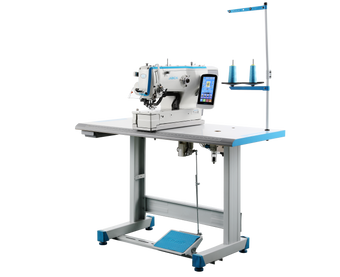

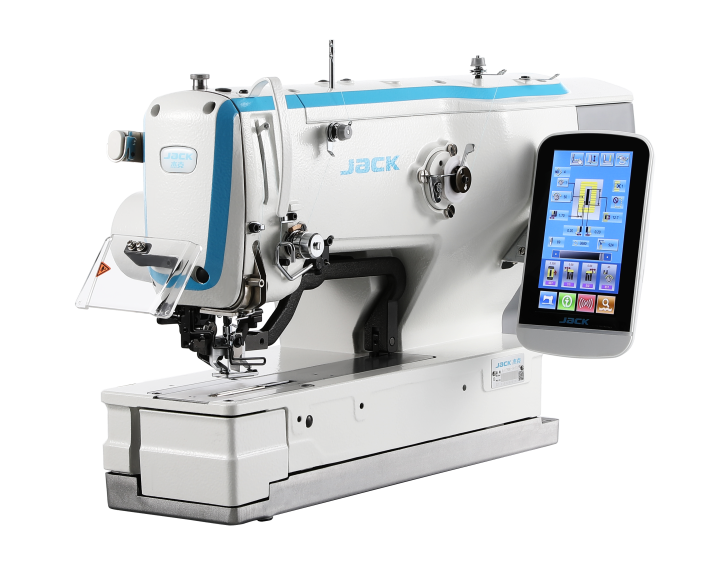

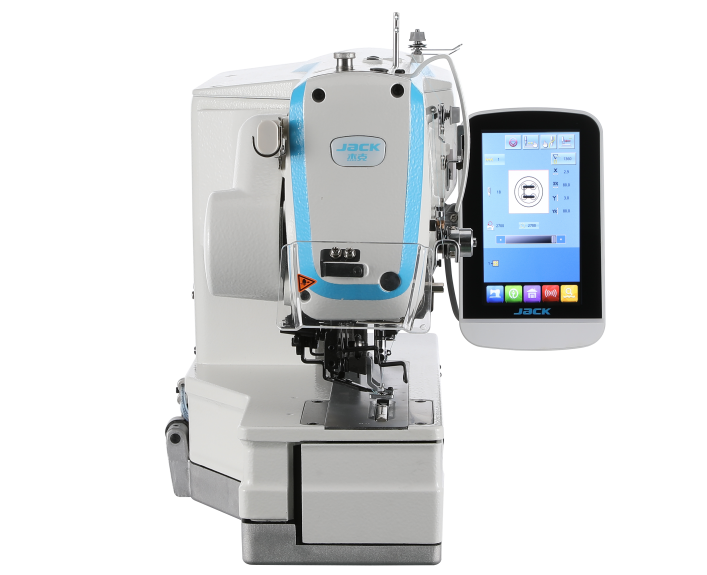

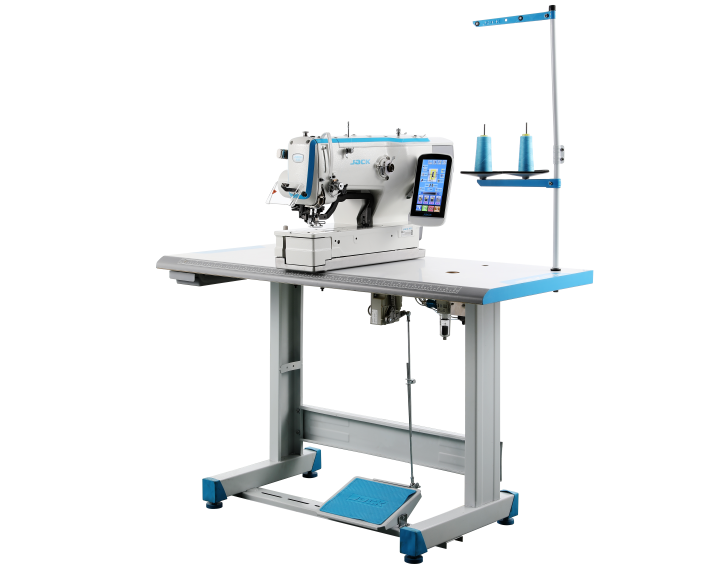

The Jack JK-1790 is a computerised buttonhole machine. It sews, cuts, and trims a buttonhole in one automatic cycle, leaving thread ends short enough to skip hand trimming on light fabric. UAE shirt and uniform makers use it for shirt fronts, cuffs, and workwear closures. It also suits abaya and kandoora placket buttonholes on woven and knit fabric.

Key features

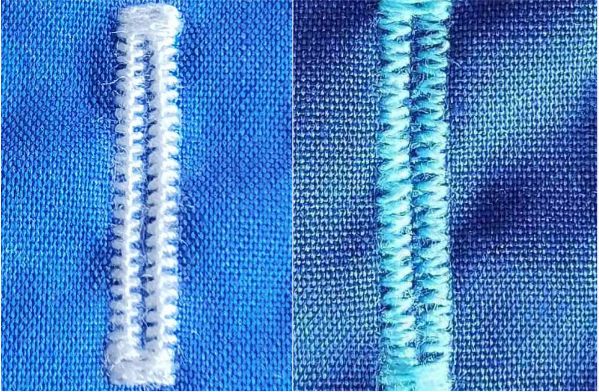

  • Thread-cleanness sewing keeps the remaining thread under 2.5mm on light woven fabric, so hand trimming is not needed
  • Continuous sewing function stitches multiple buttonholes in one pass, up to a 120mm sewing range
  • Special presser foot and needle plate options for high-elastic knitted fabric
  • Closed-loop motor control on cloth feed, needle swing, and cutting knife for stable sewing
  • Semi-dry head and hook design prevents oil marks on fabric
  • Cooling fan extends machine life
  • LCD touch panel for simple pattern and parameter set-up

Specifications

Spec Detail
Current model name JK-T1790G series
Buttonhole size 25mm x 4mm up to 120mm x 5mm, depending on model
Needle DP x 5 12# (woven) / DP x 5KN 11# (knit)
Needle count 1
Thread count 2
Stitch density (parallel interspace) 0.2mm-2.5mm
Presser foot lifter height 17mm
Max speed 4,200 stitches per minute
Machine dimensions 880mm x 390mm x 635mm
Weight 66-78kg
