Juki LK-1903C Computer-Controlled Button Sewing (Button Attaching) Machine

Also listed as LK-1903, LK 1903, LK1903, LK 1903C, LK1903C and LK-1903CSS

A computer-controlled lockstitch button sewing machine for shirt, uniform and trouser factories. It sews flat 2-hole and 4-hole buttons from 8 to 32 mm at up to 2,700 stitches a minute, and with the BR35 feeder it places each button by itself.

Built for Garment factoriesUniform factoriesMilitary and police uniforms

Get the AED price on WhatsApp Request a factory assessment

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki LK-1903C catalogue (PDF)Full specifications from Juki Juki LK-1903C catalogue pages and key figuresEvery machine catalogue in one library

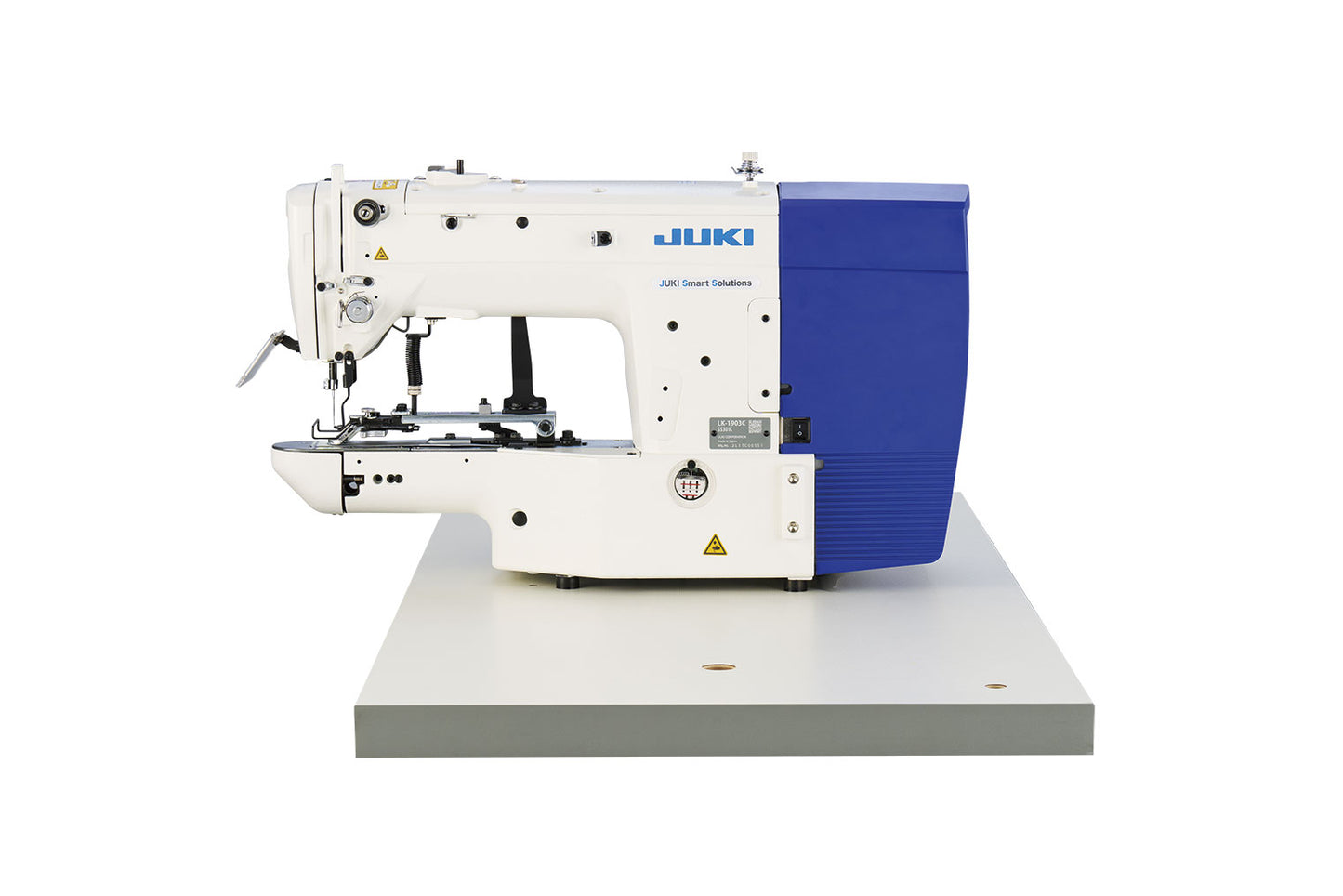

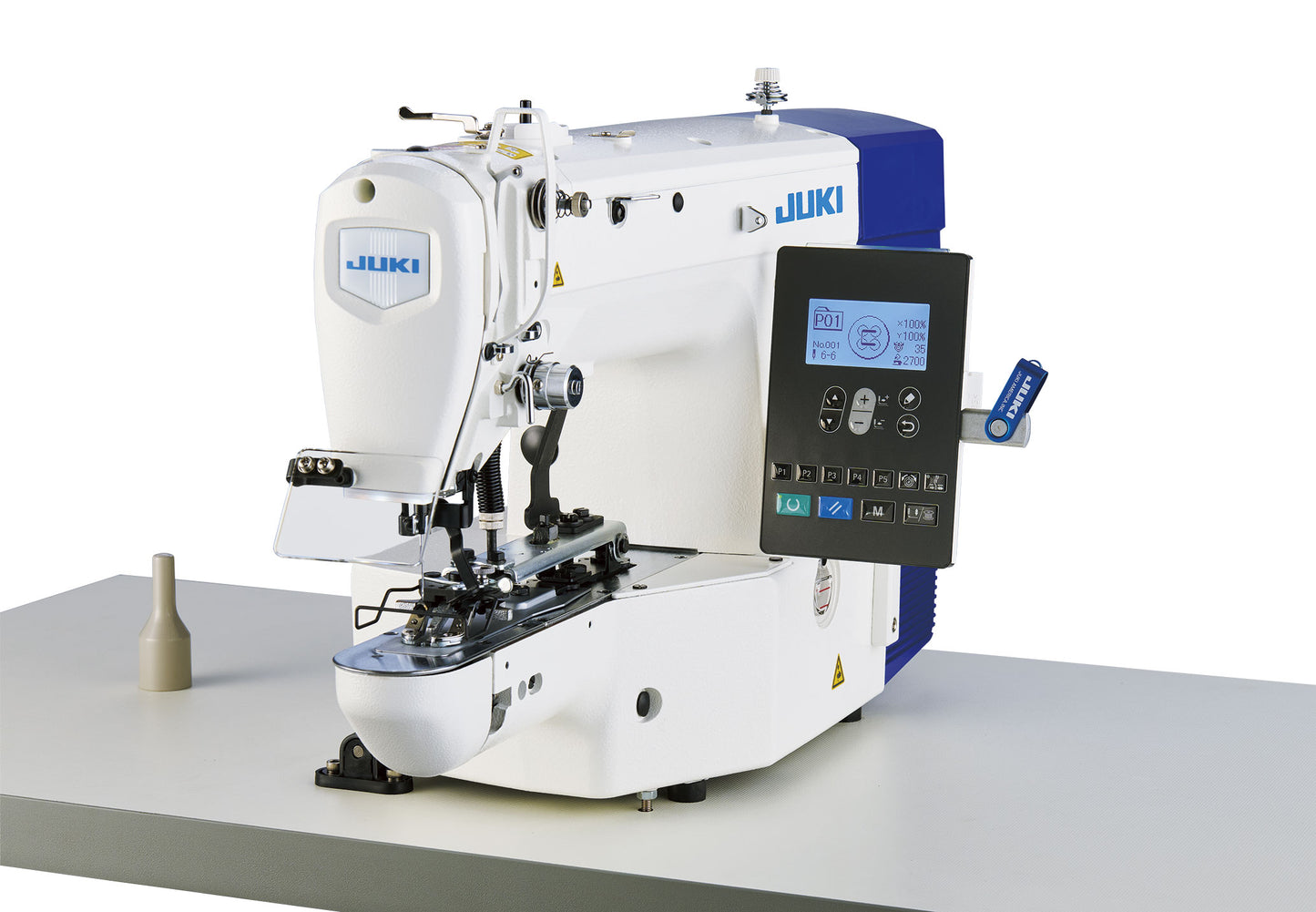

Juki LK-1903C computer-controlled lockstitch button sewing machine on its table top
  • 2,700spmMax speed
  • 8-32mmButton size
  • 999patternsIn memory
  • 13mmMax clamp lift
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The LK-1903C up close

4 photos · tap to enlarge
LK-1903C Get a quote

The Juki LK-1903C in 30 seconds

What it is

A single-needle lockstitch button sewing machine with a direct-drive servo motor, a stepping-motor auto-lifter, Juki's electronic active tension, and the control box and panel built into the head.

Who it's for

Shirt, uniform, workwear and trouser factories that sew flat buttons in volume, in the UAE and the GCC, in Nigeria, Ghana and Kenya, and in Sri Lanka, India and Bangladesh.

Why this model

Choose it over the single-thread chainstitch Juki MB-1370 when you want a lockstitch button with stored patterns, adjustable stitch size and electronic tension, or an automatic button feeder.

Button sewing on a factory line with the LK-1903C

Button sewing comes near the end of the line, after the buttonholer. We size the button sewing station to your output and supply it with the rest of the line.

Request a factory assessment Plan your production line
  1. 01

    Factory assessment

    We look at what you make, your daily output and the buttons on each garment, then work out how many button sewers the line needs, with or without feeders.

  2. 02

    Quote by the line

    Machines, tables and stands, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts and annual maintenance contracts for every machine on the floor.

What the LK-1903C does on a factory floor

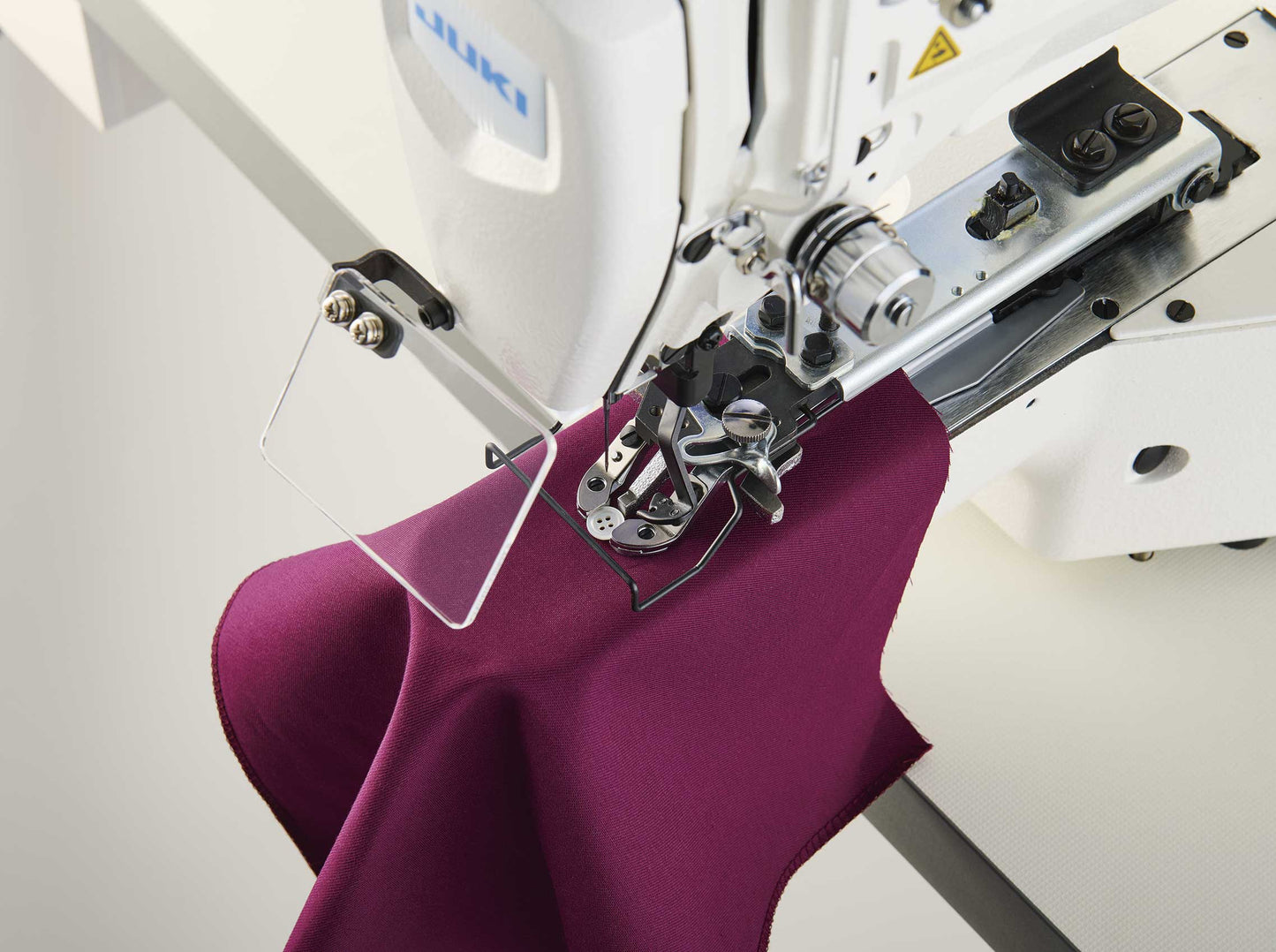

Juki LK-1903C button clamp holding a button on a garment panel at the needle

Button clamp

Flat 2-hole and 4-hole buttons from 8 to 32 mm

Juki builds the head with a clamp for extra-small and small buttons (301, 8-20 mm) or medium buttons (302, 10-20 mm), and offers a large-button clamp for 15-32 mm. The stepping-motor lifter raises the clamp up to 13 mm, in one stroke or two.

On the factory floorJuki offers clamps for buttons from 8 to 32 mm, so a clamp change, not a second machine, covers shirt, trouser and jacket buttons.

Juki BR35 automatic button feeder on the LK-1903C, with the button bowl and the index

BR35 button feeder

The feeder sets each button, the operator sets the fabric

On the LK-1903C/BR35 a vibrating bowl sorts the buttons and Juki's horizontal forced-feed mechanism places each one in the clamp. It takes round flat buttons of 9-20 mm, 1.8-3.5 mm thick, in automatic, small-lot or machine-only mode.

On the factory floorThe bowl sorts the buttons and the feeder places each one in the clamp, so the operator only positions the fabric and presses the pedal.

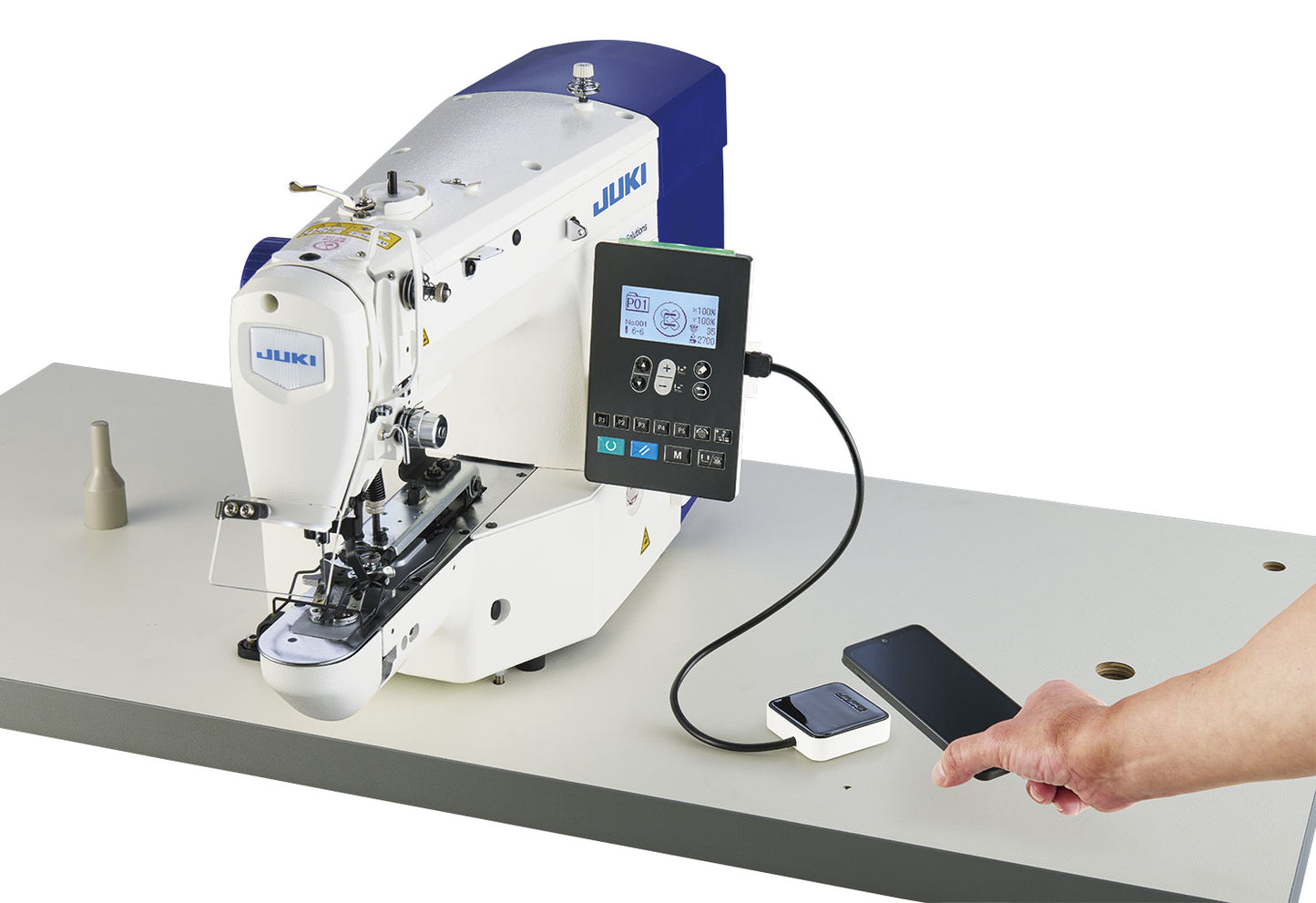

Juki LK-1903C with the operation panel on the head and an Android phone reading settings over NFC

Panel on the head

50 patterns built in, 999 in memory

The control box and an upright panel are built into the machine head, so the operator reads it without looking away from the button and the table stays clear. It stores 999 patterns and 500,000 stitches, with a USB port as standard and an optional NFC terminal for Android devices.

On the factory floorThe panel sits on the head and stores 999 patterns, so the operator reads it without looking away and a new style's settings go to other machines by USB.

  • Active tension

    Needle thread tension is set and stored on the panel, and can differ at the start, the middle and the fastening stitches of each button.

  • Dry head

    The needle bar and thread take-up run without oil. Only the hook gets a small amount of clean oil, so oil stays off the fabric.

  • LED hand light

    White, light-bulb colour or a mix of both, with five illumination levels and ten dimming levels for long shifts.

Also built in: correction of the first needle position in X and Y, a needle thread grasping device (off at delivery), a bobbin thread counter and 20-200% pattern scaling. Juki states noise is about 40% lower and power use about 26% lower than the previous model, measured on the bartacking version.

Juki LK-1903C specifications

Sewing

Max sewing speed2,700 stitches/min
Button typeRound flat button, 2-hole or 4-hole
Button size8-32 mm (301: 8-20, 302: 10-20, option 15-32)
With BR35 feeder9-20 mm buttons, 1.8-3.5 mm thick
Stitch length0.1-10 mm (0.1 mm steps)
NeedleDP×17 #14
Needle bar stroke45.7 mm

Drive and control

Machine head driveCompact AC servo motor, direct drive
Work clamp liftUp to 13 mm (11 mm with BR35), stepping motor
Needle thread tensionActive tension (electronic)
Patterns50 standard, 999 stored (500,000 stitches)
Pattern scaling20-200% in 1% steps
DataUSB as standard, NFC terminal optional

Build

HookStandard shuttle hook
LubricationHook only, minute quantity
PowerSingle-phase 220-240 V, 230 VA (3-phase and 100-120 V versions)
Weight56.9 kg head with control box, motor and panel; 146 kg with BR35
Compressed airNot needed

Figures from Juki's LK-1903C Series catalogue (information current as of May 2026, Rev06) and Juki America's LK-1903C product page.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki LK-1903CFull specifications from Juki, PDF Download

How the LK-1903C compares

Jack JK-T1903GR button sewing machine with automatic button feeder
Jack JK-T1903
Juki MB-1377 single-thread chainstitch button sewing machine
Juki MB-1370 Series
Jack JK-T1377GK button sewing machine
Jack JK-T1377GK Button Sewing Machine 		This machine
Juki LK-1903C
Juki LK-1903C
Best forShirt, uniform and trouser buttons; GR adds a feederFlat buttons on shirts and blouses, simple mechanical machineFlat and shank buttons on shirts and workwearShirt, uniform and trouser button lines
Stitch1-needle lockstitchSingle-thread chainstitchSingle-thread chainstitch1-needle lockstitch
Max speed2,700 spm1,500 spm1,500 spm2,700 spm
Size rangeFlat buttons 8-30 mm (GR 9-22 mm)Buttons 10-28 mmButtons 10-28 mm flat, 10-22 mm shankFlat buttons 8-32 mm
Patterns2-hole and 4-hole patterns on the panel8, 16 or 32 stitches3 patterns, changed with one key50 built in, 999 stored
Drive and feedIntegrated servo; auto foot lift, trimmer and wiper200 W general-purpose motorIntegrated direct drive; motor-lifted footDirect-drive servo, stepping-motor lifter
View JK-T1903View MB-1370 SeriesView JK-T1377GK Button Sewing MachineYou are here

Questions about the Juki LK-1903C

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the LK1903C the same machine as the Juki LK-1903C?

Yes. LK1903C, LK-1903C and LK 1903C are the same Juki machine. Order codes such as LK-1903CSS301 add the clamp and button-size options, and the LK-1903C/BR35 is the version with the automatic button feeder.

What is the price of the Juki LK-1903C in the UAE?

It depends on the version (with or without the BR35 feeder), the button clamp, the quantity, the table and stand, and where it is delivered. For a factory we quote the button sewers together with the rest of the line. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki LK-1903C button sewing machine in Nigeria, Ghana or Kenya?

It depends on the version (with or without the BR35 feeder), the button clamp, the quantity, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Is the LK-1903C suited to a factory production line?

Yes. Juki rates it at 2,700 stitches a minute and has shortened the start, stop, thread trimming and lifting times to cut the cycle on each button. Patterns come back from the panel, and with the BR35 feeder the operator only places the garment and presses the pedal.

Can you equip a whole line, not just the button sewer?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch, overlock and interlock to buttonhole, button sewing and bartacking machines, and can visit your factory for an assessment first.

What changed from the LK-1903BN?

Going by Juki's catalogues, the LK-1903C stores 999 patterns and 500,000 stitches against 200 patterns and 20,000 stitches on the LK-1903BN, and puts the control box and panel on the machine head. Juki states noise is about 40% lower and power use about 26% lower than the previous model. Both run at 2,700 stitches a minute and take buttons of 8-32 mm.

Can it sew shank buttons or thick buttons?

Yes, with optional parts. Juki lists a shank button kit, with a pick-up device, needle bar and TQ×3 needle, that sews shank buttons at up to 1,500 stitches a minute, and a part for thick buttons of 2.5-5.0 mm.

Is a button sewing machine the same as a button stitch or button attaching machine?

Yes. Button sewing, button stitch and button attaching machine all describe the LK-1903C: it sews round flat 2-hole and 4-hole buttons from 8 to 32 mm onto shirts, uniforms and trousers, at up to 2,700 stitches a minute by Juki's figure.

Where can I find the LK-1903C manual and error list?

Send us the model and version from your machine's plate on WhatsApp and we send Juki's instruction manual and parts list for that exact version, including the older LK-1903A and LK-1903BN. If the operation panel shows an error code, send the code with a photo of the panel and our technicians will help. We supply spare parts for the LK-1903C.

Do you deliver the LK-1903C to Lagos, Accra, Nairobi and Riyadh?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Lagos, Accra, Nairobi, Cotonou and Lomé. We also have an office in Accra. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the LK-1903C working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring your own fabric and buttons to test.
