Juki LK-1900C Computer-Controlled Bartack Machine
Also listed as LK-1900, LK 1900, LK1900, LK 1900C, LK1900C, LK-1900CS, LK-1900CSS, LK-1900CH and LK-1900CHS
A computer-controlled bartacking machine for jeans, trouser, uniform and workwear factories. It reinforces belt loops, pocket corners and flies at up to 3,300 stitches a minute, with 100 built-in patterns and room for 999.
Built for Garment factoriesUniform factoriesMilitary and police uniforms
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 3,300spmMax speed
- 40 × 30mmSewing area
- 100patternsBuilt in
- 999patternsIn memory
- 5,000+factories supplied by Al Borj in the Middle East and Africa

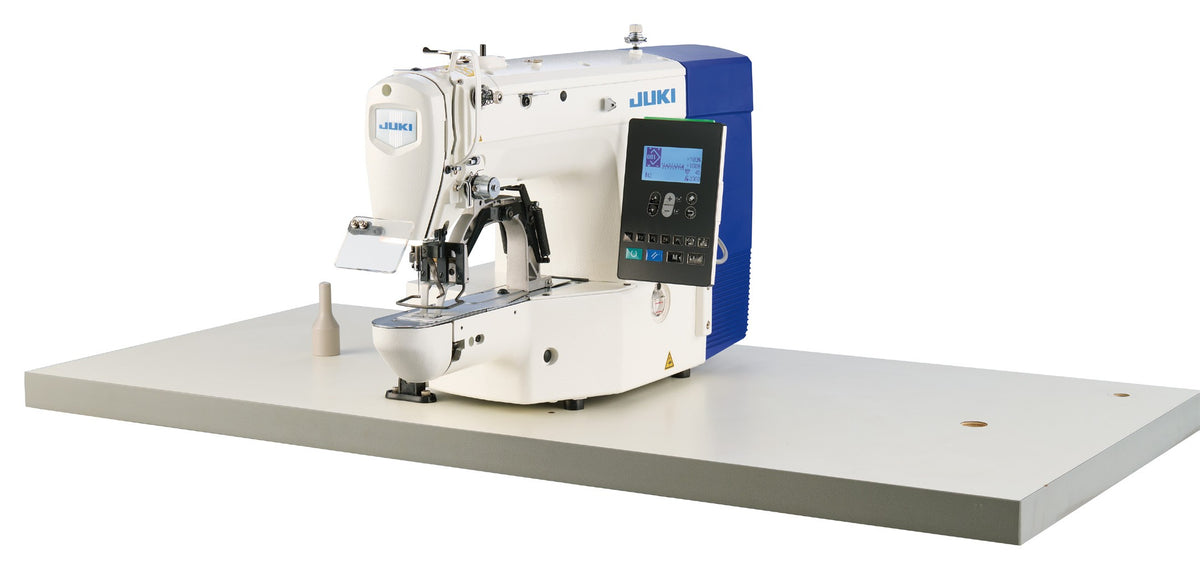

The LK-1900C up close
6 photos · tap to enlargeThe Juki LK-1900C in 30 seconds
What it is
A computer-controlled lockstitch bartacker with a 550 W direct-drive servo motor, a stepping-motor auto-lifter, Juki's electronic active tension, a dry head, a green LED marking light, and the control box and LCD panel built into the machine head.
Who it's for
Jeans, trouser, uniform, workwear and lingerie factories in the UAE, Saudi Arabia and the rest of the GCC, and in Ghana, Kenya and Ethiopia.
Why this model
Choose it when a line needs strong, repeatable bartacks on belt loops, pockets and flies. Order the type for the fabric: CS for medium-weight fabric, CH for heavy fabric, CF for foundation garments or CW with a 1.8-fold capacity hook. It replaces the Juki LK-1900BN.
Bartacking on a factory line with the LK-1900C
One bartacker usually serves several operations on a trouser or jeans line. As the authorised Juki distributor, we work out how many your output needs and supply them with the rest of the line.
- 01
Factory assessment
We look at what you make, your daily output and the bartacks on each garment, then work out how many bartackers the line needs and which type.
- 02
Quote by the line
Machines, tables and stands, delivery and installation in one quotation. Price on request.
- 03
Installation and training
Our technicians set up every machine at your factory and train your operators and mechanics on site.
- 04
Warranty, parts and maintenance
Juki machines from Al Borj come with a 1-year warranty. After that, genuine spare parts and annual maintenance contracts for every machine on the floor.
What the LK-1900C does on a factory floor
3,300 stitches a minute
A shorter cycle on every bartack
Juki rates the LK-1900C at 3,300 stitches a minute (3,000 on the CW type) and has made thread trimming faster to cut the total cycle time. Juki states a new, more rigid drive mechanism and a revised lubrication system allow the higher speed.
On the factory floorThe head runs faster and trims sooner, so each bartack cycle is shorter and an operator finishes more belt loops, pockets and flies per hour.
Control box in the head
The panel sits beside the needle, the table stays clear
Juki has built the control box into the machine head and fitted the upright LCD panel on the side of the head, where the operator sees it without looking away from the bartack. The panel has a USB port, and an optional NFC terminal shares settings with an Android device running the JUKI Smart App.
On the factory floorSettings move between machines by USB, or by NFC with the optional terminal, so every bartacker on the line sews the same bartack and a style change is loaded, not set by hand.
Green LED marking light
The bartack position shows on the fabric
A green LED marking light, standard on the LK-1900C, shines the bartack position onto the fabric, and the width of the light can be adjusted. Juki notes that some work clamp feet can hide the light.
On the factory floorThe operator sees where the bartack will land before the clamp comes down, so belt loops and pocket corners are placed in one move instead of being nudged into position.
Active tension
Needle thread tension is set on the panel for the start, middle and end of each seam and stored with the pattern, so the same bartack comes back after every style change.
Two-step auto-lifter
A stepping motor lifts the work clamp 14 mm, or 17 mm with reverse-rotation needle-up. A two-step stroke with an intermediate stop, set on the panel, gives the operator time to position the work.
Dry head
The needle bar and thread take-up need no oil. Only the hook gets a minute quantity of clean oil, so oil stays off the fabric.
Also built in: an LED hand light in white, light-bulb colour or both mixed, with five illumination levels and ten dimming levels, correction of the sewing start point, a needle thread grasping device (off at delivery), a bobbin thread counter and 20-200% pattern scaling. Options include a movable eye guard, an NFC terminal and a kit that turns the bartacker into a button sewing machine. Juki also builds the LK-1901C for eyelet buttonhole bartacks, the LK-1902C for attaching belt loops and the LK-1905C with a 60 × 50 mm sewing area. The LK-1900C replaces the Juki LK-1900BN, and we now supply the LK-1900C in its place.
See the LK-1900C sew
Juki LK-1900C specifications
Sewing
| Max sewing speed | 3,300 stitches/min (CW 3,000) |
|---|---|
| Sewing area | 40 mm (X) × 30 mm (Y) |
| Stitch length | 0.1-10 mm (0.1 mm steps) |
| Needle | DP×5 #14 (CS); DP×17 #21 (CH, CW); DP×5 #11 (CF) |
| Needle bar stroke | 41.2 mm |
| Work clamp lift | 14 mm (17 mm with reverse-rotation needle-up) |
| Marking light | Green LED, standard |
Drive and control
| Machine head drive | 550 W compact AC servo motor, direct drive |
|---|---|
| Auto-lifter | Stepping motor, one or two steps |
| Needle thread tension | Active tension (electronic) |
| Patterns | 100 standard, up to 999 can be input |
| Memory | Up to 500,000 stitches, internal memory |
| Data | USB port on the standard LCD panel; NFC terminal optional |
Build
| Model | LK-1900CS medium-weight, CH heavy-weight, CF foundation, CW 1.8-fold capacity hook for heavy-weight |
|---|---|
| Replaces | Juki LK-1900BN |
| Hook | Standard shuttle hook (CW: 1.8-fold capacity shuttle hook) |
| Lubrication | Hook only, minute quantity (JUKI New Defrix Oil No. 2) |
| Power supply | Single-phase 220-240 V, or 3-phase 200-240 V / single-phase 100-120 V |
| Power consumption | 230 VA |
| Compressed air | Not used (Juki lists no air consumption) |
| Weight | Machine head with control box, motor and panel 56.9 kg |
Figures from Juki's LK-1900C Series catalogue (May 2026 edition, Rev09), Juki's LK-1900C product page and Al Borj's Juki catalogue 2026-27, page 28.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
How the LK-1900C compares
| Feature |
 |
 |
This machine
 |
|---|---|---|---|
| Best for | Trouser, jeans and uniform bartacks; K versions sew buttons | Shirt, uniform and trouser button lines | Belt loops, pockets and stress points on trousers, jeans and uniforms |
| Stitch | 1-needle lockstitch bartack | 1-needle lockstitch | Lockstitch bartack |
| Max speed | 3,200 spm (GS); 2,700 spm (GH, GM) | 2,700 spm | 3,300 spm |
| Size range | Sewing area 40 × 30 mm | Flat buttons 8-32 mm | Sewing area 40 × 30 mm |
| Patterns | Bartacks, crosses, circles and small patterns | 50 built in, 999 stored | 100 built in, 999 can be input |
| Drive and feed | Integrated servo; auto foot lift, trimmer and wiper | Direct-drive servo, stepping-motor lifter | 550 W direct-drive servo |
| Link | View JK-T1900 | View LK-1903C | You are here |
Questions about the Juki LK-1900C
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the LK1900 the same machine as the Juki LK-1900C?
LK1900, LK-1900 and LK 1900 are used for Juki's whole family of computer-controlled bartackers. The LK-1900C is Juki's current model and the one on this page: the LK-1900CS, CH, CF and CW are its versions by fabric.
What is the price of the Juki LK-1900C in the UAE?
Price on request. It depends on the type, the quantity, the table and stand, and where it is delivered. For a factory we quote the bartackers together with the rest of the line. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the price and delivery time, usually within one working day.
What is the price of the Juki LK-1900C bartack machine in Ghana, Kenya or Ethiopia?
Price on request. It depends on the type, the quantity, the table, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with one quotation that covers the machines, delivery and installation.
Is the LK-1900C suited to a jeans or trouser factory line?
Yes. Juki rates it at 3,300 stitches a minute with faster thread trimming, so one bartacker keeps up with belt loops, pockets and flies on a line. For denim and heavy cloth order the CH type: Juki has increased its needle penetrating force and fits a DP×17 #21 needle. The CW type adds a 1.8-fold capacity hook, so the operator stops to change the bobbin less often.
Can you equip a whole line, not just the bartacker?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch, overlock and interlock to buttonhole, button sewing and bartacking machines, and can visit your factory for an assessment first.
Which LK-1900C type do I need?
CS for medium-weight fabric such as suit pocket lips, CH for heavy fabric such as the crotch of jeans, CF for foundation garments such as bra straps, and CW, with a 1.8-fold capacity hook, for heavy fabric with fewer bobbin changes. For knits Juki sells a kit that converts the S type to its knit setting. Juki lists no compressed air for any of the four types.
Does the LK-1900C replace the LK-1900BN?
Yes. The LK-1900C replaced the LK-1900BN in 2024, and we now supply the LK-1900C in its place. We still supply spare parts for LK-1900BN machines already working in factories.
Where can I find the LK-1900C manual and error list?
Send us the model and type from your machine's plate on WhatsApp and we send Juki's instruction manual and parts list for that exact machine. If the operation panel shows an error code, send the code with a photo of the panel and our technicians will help. We supply genuine spare parts for the LK-1900C.
Do you deliver the LK-1900C to Riyadh, Accra, Nairobi and Addis Ababa?
Yes. As the authorised Juki distributor, we ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in Sharjah and Accra and a presence in Kenya. We install every machine at your factory and train your operators and mechanics. Juki machines from Al Borj come with a 1-year warranty, then genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.
Can I see the LK-1900C working before I buy?
Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring your own fabric or a cut garment part to test. Tell us the type you need when you book, so we can confirm a machine is ready for you.
