Seiko Catalogue and specifications
Seiko LSWN-8BL-3 catalogue (PDF)
Seiko's catalogue for the LSWN single-needle series, including the LSWN-8BL-3 walking foot machine for medium to heavy fabric, leather, vinyl and laminated material. Upholstery, tarpaulin and bag workshops use it for long heavy seams that must stay flat and even.
2 pages, Seiko Sewing Machine Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Seiko LSWN-8BL-3 catalogue covers
Two pages in English: the series with its models and applications, then the features and specifications, with a 10 mm stitch and a 3-6 mm walking foot movement.
The twin-needle LSWN-28BL-3 has its own catalogue page. Al Borj supplies, installs and services the LSWN-8BL-3 from Sharjah and Accra.
Machine type: Single-needle heavy duty walking foot machine.
- Maximum sewing speed
- 2,800 s.p.m.
- Maximum stitch length
- 10 mm
- Walking foot movement
- 3-6 mm (standard 4 mm)
- Presser foot clearance
- 16 mm (knee), 8.5 mm (hand)
- Needle system
- DPx17 (#22) or 135x17 (#140)
- Hook type
- Large vertical axis hook (2.0 times)
Figures from the Seiko catalogue.
Pages from the Seiko LSWN-8BL-3 catalogue

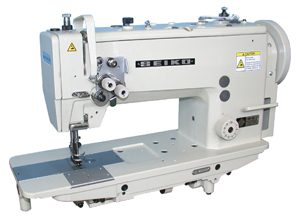

Seiko LSWN-8BL-3, Heavy-Duty Walking Foot Machine
