Seiko Catalogue and specifications
Seiko BBWP Series catalogue (PDF)
Covers BBWP-8BL and BBWP-28BL
Seiko's catalogue for the BBWP Series post bed walking foot machines. The raised post lets the operator turn and stitch around bulky, curved parts, so car upholstery, bag and leather goods makers sew medium to heavy leather, vinyl and laminated material.
4 pages, Seiko Sewing Machine Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Seiko BBWP Series catalogue covers
Four pages in English: the series with its models and applications, two pages of features, and the specifications. We supply the single-needle BBWP-8BL and the twin-needle BBWP-28BL with a 3/8 inch gauge.
Al Borj supplies, installs and services the BBWP from Sharjah and Accra, for upholstery and leather workshops in the GCC and Africa.
Machine type: Post bed walking foot machine.
- Maximum sewing speed
- 2,500 s.p.m.
- Maximum stitch length
- 9 mm
- Walking foot movement
- 1-7 mm
- Presser foot clearance
- 9 mm (manual), 16 mm (automatic)
- Needle bar stroke
- 34 mm
- Hook type
- Large vertical axis hook (2.0 times)
Figures from the Seiko catalogue.
Pages from the Seiko BBWP Series catalogue

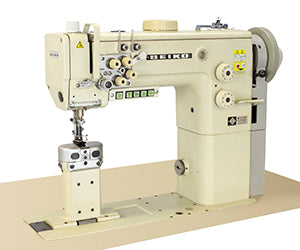

Seiko BBWP Series, Post Bed Walking Foot Machine
