Seiko Catalogue and specifications
Seiko SLH-2B-FH-1 catalogue (PDF)
Seiko's catalogue for the SLH series extra heavy duty long arm machines, including the SLH-2B-FH-1. It sews super heavyweight material, so makers of safety belts, cargo slings, harnesses, buffing wheels and construction barriers get high-strength seams.
2 pages, Seiko Sewing Machine Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Seiko SLH-2B-FH-1 catalogue covers
Two pages in English: the series with its models and applications, then the features and specifications. The table covers the SLH-2B-1 and the SLH-2B-FH-1, which has the higher 32 mm foot lift for extra heavy material.
The large oscillating shuttle hook carries the thick thread these seams need. Al Borj supplies, installs and services the SLH-2B-FH-1 from Sharjah and Accra.
Machine type: Extra heavy duty long arm lockstitch machine.
- Max. sewing speed
- 700 s.p.m.
- Max. stitch length
- 15mm
- Presser foot lift
- 32mm (FH-1)
- Needle bar stroke
- 56.7mm
- Hook
- Large oscillating shuttle hook
- Arm length / working space
- 413mm
Figures from the Seiko catalogue.
Pages from the Seiko SLH-2B-FH-1 catalogue

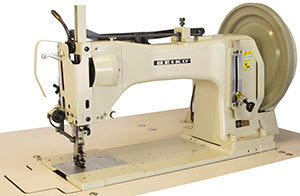

Seiko SLH-2B-FH-1, Extra Heavy Duty Long Arm Machine
