Seiko Catalogue and specifications
Seiko LSWNH-8BL-20-1-TA-BTFL catalogue (PDF)
Seiko's catalogue for the LSWNH series 20 inch long arm machines, including the LSWNH-8BL-20-1-TA-BTFL with automatic back tack and presser foot lift. Tent, cover, sail, awning, tarpaulin and car upholstery makers sew leather, vinyl and coated material with less hand work at each seam end.
2 pages, Seiko Sewing Machine Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Seiko LSWNH-8BL-20-1-TA-BTFL catalogue covers
Two pages in English: the series with its models and applications, then the features and specifications, with a 516 × 150 mm working space and compound feed with walking foot.
Al Borj supplies, installs and services the LSWNH from Sharjah and Accra, for technical textile and upholstery workshops in the GCC and Africa.
Machine type: Long arm walking foot machine with automatic back tack and foot lift.
- Max. sewing speed
- 1,500 s.p.m.
- Max. stitch length
- 10mm
- Working space
- 516 x 150mm
- Needle bar stroke
- 37mm
- Hook
- Large vertical axis hook (2.0 times)
- Needle
- DPx17 #22 or 135x17 #140
Figures from the Seiko catalogue.
Pages from the Seiko LSWNH-8BL-20-1-TA-BTFL catalogue
Download the Seiko LSWNH-8BL-20-1-TA-BTFL catalogue (PDF, 445 KB)

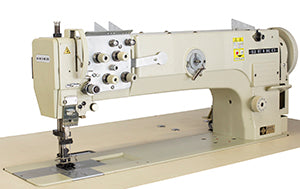

Seiko LSWNH-8BL-20-1-TA-BTFL, Long Arm Walking Foot Machine
