Seiko Catalogue and specifications
Seiko JW-28BL-30-3 catalogue (PDF)
Seiko's catalogue for the JW series long arm walking foot machines, including the two-needle JW-28BL-30-3. The 30 inch arm gives room to turn large panels, so tent, truck cover, awning and marine cover makers sew canvas, vinyl and coated fabric with one operator.
2 pages, Seiko Sewing Machine Co., Ltd. catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Seiko JW-28BL-30-3 catalogue covers
Two pages in English: the JW series with its models and applications, then the features and specifications, including the 762 × 153 mm working space and a 23 mm foot lift by pedal.
The single-needle JW-8BL-30-3 is in the same catalogue. Al Borj supplies, installs and services the JW-28BL-30-3 from Sharjah and Accra.
Machine type: Long arm heavy duty walking foot machine.
- Max. sewing speed
- 1,200 s.p.m.
- Max. stitch length
- 10mm (25/64 inch)
- Working space
- 762 x 153mm (30 x 6-1/32 inch)
- Presser foot clearance
- 23mm by pedal / 20mm by hand
- Walking foot movement
- 6-9mm (standard 6mm)
- Needle gauge (two-needle)
- 3/8 inch (9.5mm)
Figures from the Seiko catalogue.
Pages from the Seiko JW-28BL-30-3 catalogue

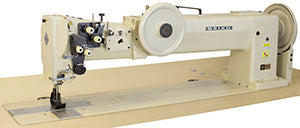

Seiko JW-28BL-30-3, Long Arm Heavy Duty Sewing Machine
