Built for stitching around thick, bulky parts other machines can't turn.

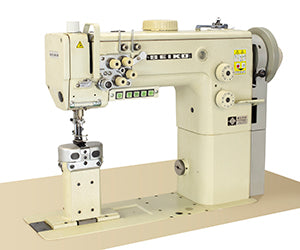

The Seiko BBWP series is a post bed walking foot lockstitch machine for medium to heavy leather, vinyl and laminated material. Its raised post bed lets it turn and stitch around bulky, curved parts, which suits UAE auto upholstery, bag and leather goods work. Al Borj supplies the single needle BBWP-8BL and the twin needle BBWP-28BL, set up with a 3/8 in needle gauge.

Key features

  • Post bed shape reaches into curved and bulky parts
  • Compound feed and walking foot pull heavy layers through evenly
  • Large vertical axis hook (2.0 times) cuts down bobbin-change stops
  • Stitch length up to 9 mm, forward and reverse
  • Available as single needle or twin needle (3/8 in gauge) build
  • Optional auto back tack, auto foot lift, climbing device and dual stitching device

Specifications

Model Seiko BBWP-8BL (single needle) / BBWP-28BL (twin needle, 3/8 in gauge)
Bed type Post bed, compound feed and walking foot
Maximum sewing speed 2,500 s.p.m.
Maximum stitch length 9 mm
Needle system 135x17 (Nm110-Nm200, standard Nm180) or DPx17 (#18-#25, standard #24)
Hook type Large vertical axis hook (2.0 times)
Walking foot movement 1-7 mm
Presser foot clearance 9 mm (manual), 16 mm (automatic)
Needle bar stroke 34 mm
Lubrication Semi-automatic
