Jack A5E-B AMH2 Industrial AI Lockstitch Sewing Machine
Also listed as A5E, A5E-B, A5EB, A5E AMH2, A5E-B AMH2, A5E-B-AMH2 and A5E B AMH2
Jack's top industrial lockstitch, for shirt, trouser and uniform lines. It senses each fabric and every change in thickness and sets itself as it sews, so operators go from light to heavy fabric without stopping to re-set it. It also trims the thread at the end of every seam, and its sealed oil pan means it never leaks oil.
Built for Garment factoriesUniform factoriesAbaya and kandoora production
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 5,000spmMax speed
- 11.3N·mMotor torque
- 305mmArm space
- 1-13mmFoot lift
- 5,000+factories supplied by Al Borj in the Middle East and Africa
The A5E-B AMH2 up close
6 photos · tap to enlargeThe Jack A5E-B AMH2 in 30 seconds
What it is
Jack's top single-needle lockstitch, with the most features of the Jack lockstitch machines we supply: a built-in direct-drive motor, automatic thread trimmer, digital presser foot lift, voice guidance, an oil-free head and Jack's AMH2 adaptive fabric system, which senses each fabric and sets the machine for it.
Who it's for
Garment, uniform and workwear factories in the UAE, the GCC and Africa, from Ghana and Benin to Kenya and Ethiopia, sewing shirts, trousers and uniforms on production lines. Smaller garment workshops use it too, because it sets itself for each fabric they sew.
Why this model
Pick it when you want Jack's top lockstitch on the line. It has more features than the Jack A2C and A4C, and it is the one that senses each fabric and sets itself as it sews. For operators who want no automatic features, we supply the Jack F6.
Setting up a factory line with the A5E-B
Most A5E-B machines go onto factory production lines. We quote by the line and stay with you after the machines are running.
- 01
Factory assessment
We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.
- 02
Quote by the line
Machines, tables and stands, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians set up every machine at your factory and train your operators on site.
- 04
Parts and maintenance
Genuine spare parts and annual maintenance contracts for every machine on the floor.
What the A5E-B AMH2 does on a factory floor

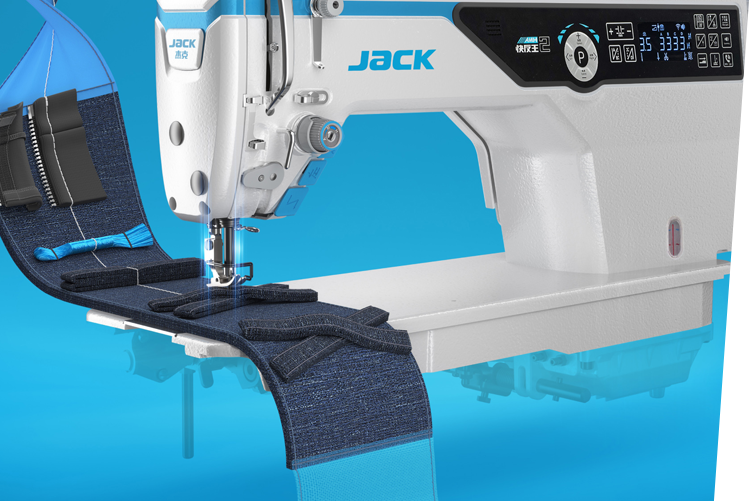

AMH2 adaptive fabric system
It feels the fabric change and adjusts itself
Jack's dual-core Octopus AI chip reads the fabric and seams under the foot and sets the machine for them as it sews, with no manual adjustment. Jack quotes 22 million device data models and 100,000 operations a second.
On the factory floorBecause the machine reads the fabric and seams under the foot and sets itself, operators keep sewing through fabric changes with no manual adjustment.

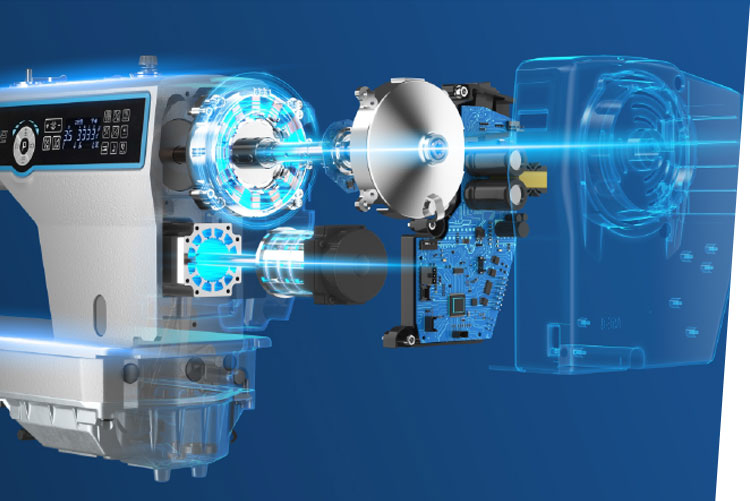

Dual-drive APE motor
11.3 N·m of torque for thick seams
Jack rates its response at four times faster than a standard motor, with 22.5% higher power density. Jack shows it sewing through 18 layers of denim.
On the factory floorBecause the motor gives 11.3 N·m of torque and responds quickly, the machine keeps stitching steadily through thick seams such as layered denim.

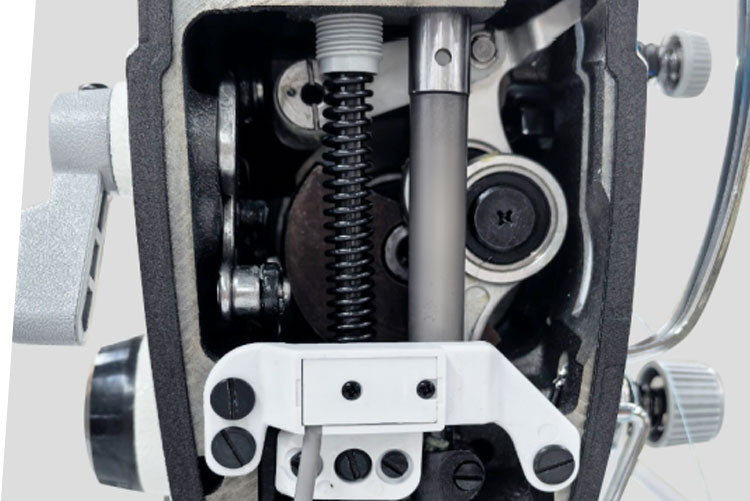

Oil-free head
A sealed oil pan, so it never leaks oil
The head runs dry. Only the hook is lubricated, from a sealed oil pan that also keeps dust out. Jack states it sews 10,000 m without losing a drop.
On the factory floorIts sealed oil pan means it never leaks oil, so the head stays dry and clean through every shift, whatever colour the line is sewing.
Automatic thread trimmer
Trims the thread at the end of every seam, so there is less hand trimming down the line.
Digital presser foot lift
Driven by a stepper motor and set in 13 levels from the control panel, one setting per fabric.
305 mm arm
Jack gives it 305 mm of space under the arm for long panels and bulky garments.
Also built in: a simplified control panel and voice guidance that talks operators through functions and error messages.
See the A5E-B AMH2 sew
Jack A5E-B AMH2 specifications
Sewing
| Max sewing speed | 5,000 stitches/min |
|---|---|
| Stitch length | Up to 5 mm |
| Needle | DBx1, sizes 11-18 |
| Threads | 2 |
| Presser foot height | 1-13 mm, 13 digital levels |
| Fabric range | Thin to medium-thick |
Drive and control
| Motor | Dual-drive APE, 11.3 N·m peak torque |
|---|---|
| Thread trimmer | Automatic |
| Lubrication | Oil-free head, hook fed from a sealed oil pan |
| Machine type | Industrial single-needle lockstitch, direct drive |
Build
| Model | A5E-B (AMH2) |
|---|---|
| Arm space | 305 mm |
| Machine size | 690 × 295 × 550 mm |
| Weight | 42.5 kg net, 48.6 kg gross |
Figures from Jack's A5E-B AMH2 catalogue and Jack's product page.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Jack lockstitch machines side by side
| Feature |
 |
 |
 |
This machine
 |
|---|---|---|---|---|
| Best for | Operators who want no automatic features | Fast output with auto trimmer | Mixed fabrics, digital controls | Jack's top lockstitch: senses each fabric and sets itself |
| Fabric sensing | No | No | AI fabric system | AMH2, dual-core AI |
| Thread trimmer | No | Yes | Yes, short trim | Yes |
| Motor | Direct drive, energy-saving | Direct drive | Direct drive, 550 W | Dual-drive APE, 11.3 N·m |
| Max speed | 5,000 spm | 5,000 spm | 5,000 spm | 5,000 spm |
| Fabric range | Thin to medium | Thin to medium-thick | Thin to medium-thick | Thin to medium-thick |
| Link | View F6 | View A2C | View A4C | You are here |
Questions about the Jack A5E-B AMH2
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Jack A5EB the same machine as the A5E-B AMH2?
Yes. A5EB, A5E-B and A5E-B AMH2 all mean the same Jack machine. AMH2 is the name of its adaptive fabric system.
Is the Jack A5E the same as the A5E-B AMH2?
When a factory asks us for a Jack A5E, we supply the A5E-B AMH2, the A5E model we sell today. AMH2 is Jack's second-generation adaptive fabric system, with a dual-core AI chip and the 11.3 N·m dual-drive motor, and Jack builds the A5E-B with an oil-free head.
What is the price of the Jack A5E-B in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the quantity, the table and stand, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Jack A5E-B in Ghana, Kenya or Ethiopia?
It depends on the quantity, the table and stand, and delivery to your city. Send us those on WhatsApp and we reply with one quotation in AED covering the machines, delivery to your factory and installation, usually within one working day.
Is the A5E-B suited to a factory production line?
Yes. It runs at up to 5,000 stitches a minute, trims the thread automatically and adjusts itself to each fabric, so operators do not stop to re-set it when the fabric changes. We supply it by the line, with tables, stands, installation and operator training.
Jack A5E-B AMH2 or Juki DDL-7000A for shirts and trousers?
Both are direct-drive lockstitch machines with an automatic thread trimmer, and both run at up to 5,000 stitches a minute on light and medium fabric. The A5E-B is Jack's top lockstitch and has more features: its AMH2 system senses each fabric and sets the machine as it sews, it has a digital presser foot lift and voice guidance, and its sealed oil pan means it never leaks oil. We supply both, so send us your fabric and daily output and we quote either.
Can you equip a whole line, not just this machine?
Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch to overlock, interlock and special machines, and can visit your factory for an assessment first.
Does the A5E-B leak oil onto the fabric?
No. Its sealed oil pan means it never leaks oil. Jack builds it with an oil-free head: there is no oil in the head, and only the hook is lubricated, from that sealed pan. Jack states it sews 10,000 m without losing a drop.
What fabrics can the A5E-B sew?
Thin to medium-thick materials for shirts, trousers, uniforms and workwear. Jack shows it sewing through 18 layers of denim. For heavy materials Jack makes the A5E-B-H-7, with a 7 mm stitch and a heavier needle. Ask us if you need it.
Do you deliver the Jack A5E-B to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?
Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install every machine at your factory and train your operators. After that we support you with genuine spare parts and annual maintenance contracts.
Do you supply the Jack A5E-B manual, parts book and spare parts?
Yes. We can send Jack's instruction manual and parts list for your exact version on WhatsApp, and we supply spare parts. For a part, send us the part number from the parts list or a photo of the part.
What warranty does the Jack A5E-B AMH2 carry?
Every Jack machine from Al Borj carries a 2-year warranty, handled by our own service team, with genuine Jack parts.
Can I see the A5E-B working before I buy?
Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own fabric to test.
Spare parts for the Jack A5E-B AMH2
14 parts for this machine are listed with their part numbers, and 69 Jack parts in all. We supply thousands more: send us the part number, the machine model or a photo of the old part.
