JackA2C Lockstitch Machine with Automatic Thread Trimmer

Also listed as A2C, A2C-C, A2C C, A 2C and Jack A2C

A single-needle lockstitch machine for garment and uniform lines that cuts the thread at the end of every seam. The operator goes straight to the next piece, so the line loses less time to hand trimming.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Jack A2C single-needle lockstitch sewing machine, full front view
  • 5,000spmMax speed
  • 5.5N·mMotor torque
  • 1-13mmFoot lift
  • 5mmStitch length
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The A2C up close

3 photos · tap to enlarge

The Jack A2C in 30 seconds

What it is

A direct-drive single-needle lockstitch machine with an automatic thread trimmer, a 5.5 N·m motor and a computerised control panel.

Who it's for

Garment and uniform factories in the UAE, the GCC and Africa that sew thin to medium-thick fabric in volume, and workshops that want a trimmer without the digital extras of the A4C.

Why this model

Choose it when a line runs the same kind of fabric all day and thread trimming is the saving you want. When the fabric changes through the shift, the A4C or the A5E-B adjusts itself to it.

Setting up a factory line with the A2C

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the A2C does on a factory floor

Jack A2C, Single-Needle Lockstitch Machine

Automatic thread trimmer

The machine cuts the thread, so the operator does not

The trimmer is triggered from the back of the pedal. Jack states that it raises efficiency by 30% and leaves a thread tail of about 4 cm, against about 7 cm when the thread is cut by hand.

On the factory floorBecause the thread is cut at the end of each seam, operators do not reach for scissors between pieces and the line keeps its rhythm.

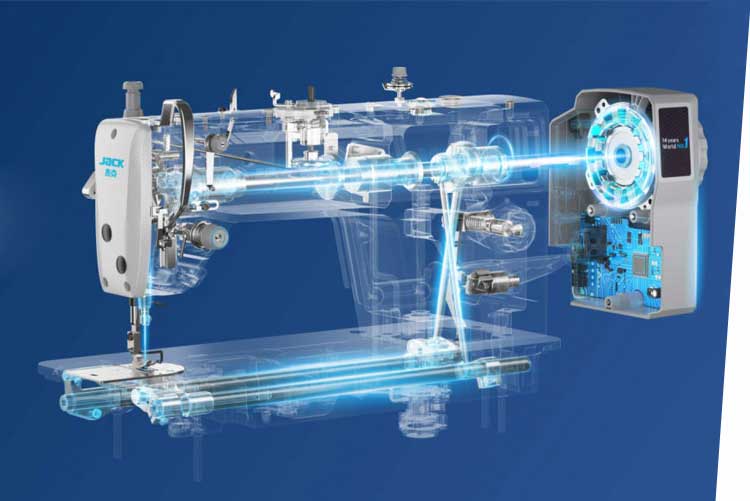

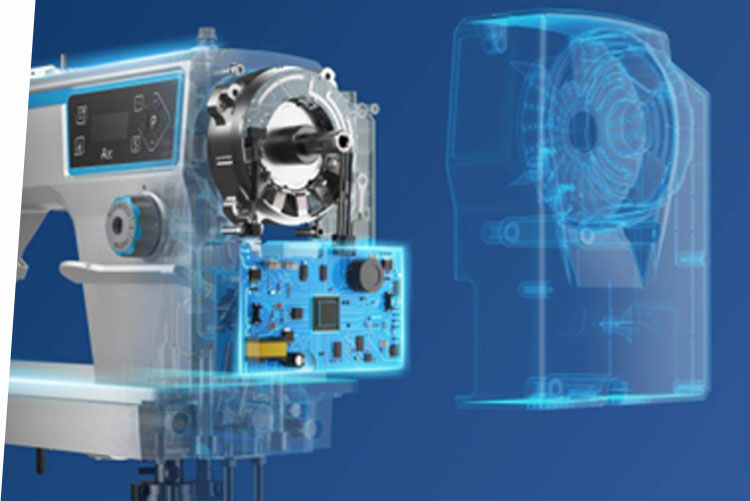

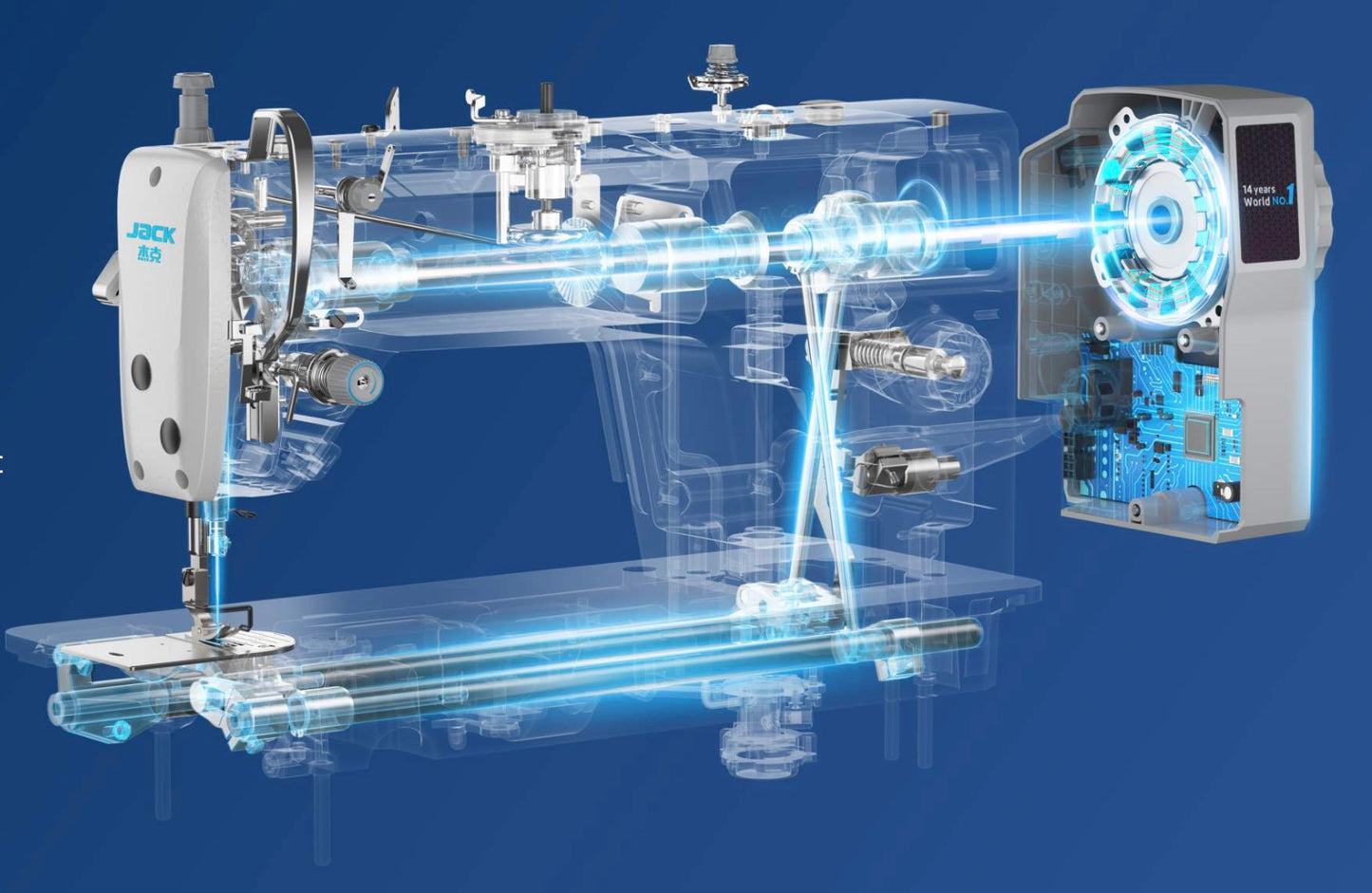

Jack A2C X-ray view of the direct-drive motor and electric control board

Mighty Ape motor

5.5 N·m of torque for cross seams

Jack states that the direct-drive motor pierces 100 layers of paper, lifts the machine's cross-seam and thick-fabric ability by 14% and raises overall efficiency by 3.7%.

On the factory floorBecause the motor has this much torque, the needle keeps driving through thick cross seams without the machine slowing down.

Jack A2C, Single-Needle Lockstitch Machine

Fortress electric control

It keeps running when the power is uneven

Jack states that the electric control works across a voltage range of 110 V to 295 V and withstands airborne static of up to 12,000 V.

On the factory floorBecause the control tolerates wide voltage swings, the machine keeps stitching steadily where the supply is not stable.

  • Needle up and down

    The computerised panel sets the needle stop position, so each seam ends with the needle where the operator wants it.

  • Dimmable LED light

    Three brightness levels let the operator light the work area to suit the fabric.

  • Knee presser foot lift

    The knee lifts the foot, so both hands stay on the fabric.

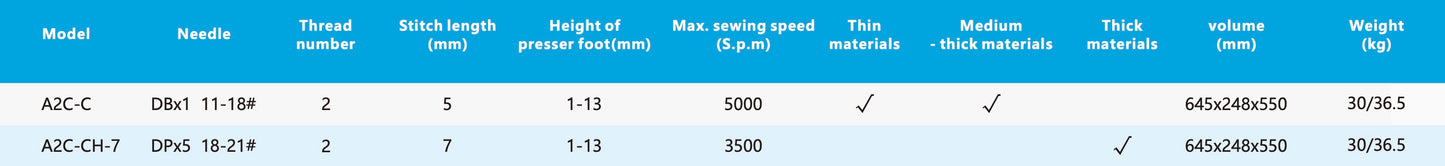

Jack A2C specifications

Sewing

ModelA2C-C
NeedleDBx1, sizes 11-18
Threads2
Stitch length5 mm
Presser foot height1-13 mm
Max sewing speed5,000 spm
Material rangeThin to medium-thick

Drive and control

MotorMighty Ape direct drive, 5.5 N·m
Thread trimmerAutomatic, from the back of the pedal
Voltage range110-295 V
LightLED, 3 brightness levels

Build and heavy version

Machine size645 x 248 x 550 mm
Weight30 kg net, 36.5 kg gross
A2C-CH-7 (thick material)DPx5 18-21 needle, 7 mm stitch, 3,500 spm

Figures from Jack's A2C catalogue and Jack's product page.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Jack A2CFull specifications from Jack, PDF Download

Questions about the Jack A2C

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Jack A2C the same as the A2C-C?

Yes. A2C-C is Jack's full code for the standard A2C. The A2C-CH-7 is the heavy version of the same machine, with a 7 mm stitch and a top speed of 3,500 spm.

What is the difference between the Jack A2C and the A4C?

Both trim the thread automatically at up to 5,000 spm. The A4C adds Jack's AI fabric system, a digital presser foot lift and an automatic digital bartack, so it adjusts itself when the fabric changes. The A2C suits lines that run one kind of fabric and want the trimmer.

Can the A2C sew thick fabric?

The standard A2C-C is rated for thin to medium-thick material. For thick material Jack lists the A2C-CH-7, with a DPx5 needle system and a 7 mm stitch at up to 3,500 spm. Tell us the fabric and we confirm which version you need.

What is the price of the Jack A2C in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Jack A2C and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Jack A2C before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Jack A2C?

A 2-year warranty, handled by our own service team, who also install the machine.

Spare parts

Genuine Jack spare parts

The wear parts for the Jack machines we sell, with Jack's own part numbers: 69 parts listed. We supply thousands more: send us the part number, the machine model or a photo of the old part.
