Jack JK-5559F, Digital Lockstitch with Edge Cutter

Jack JK-5559F, Digital Lockstitch with Edge Cutter

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

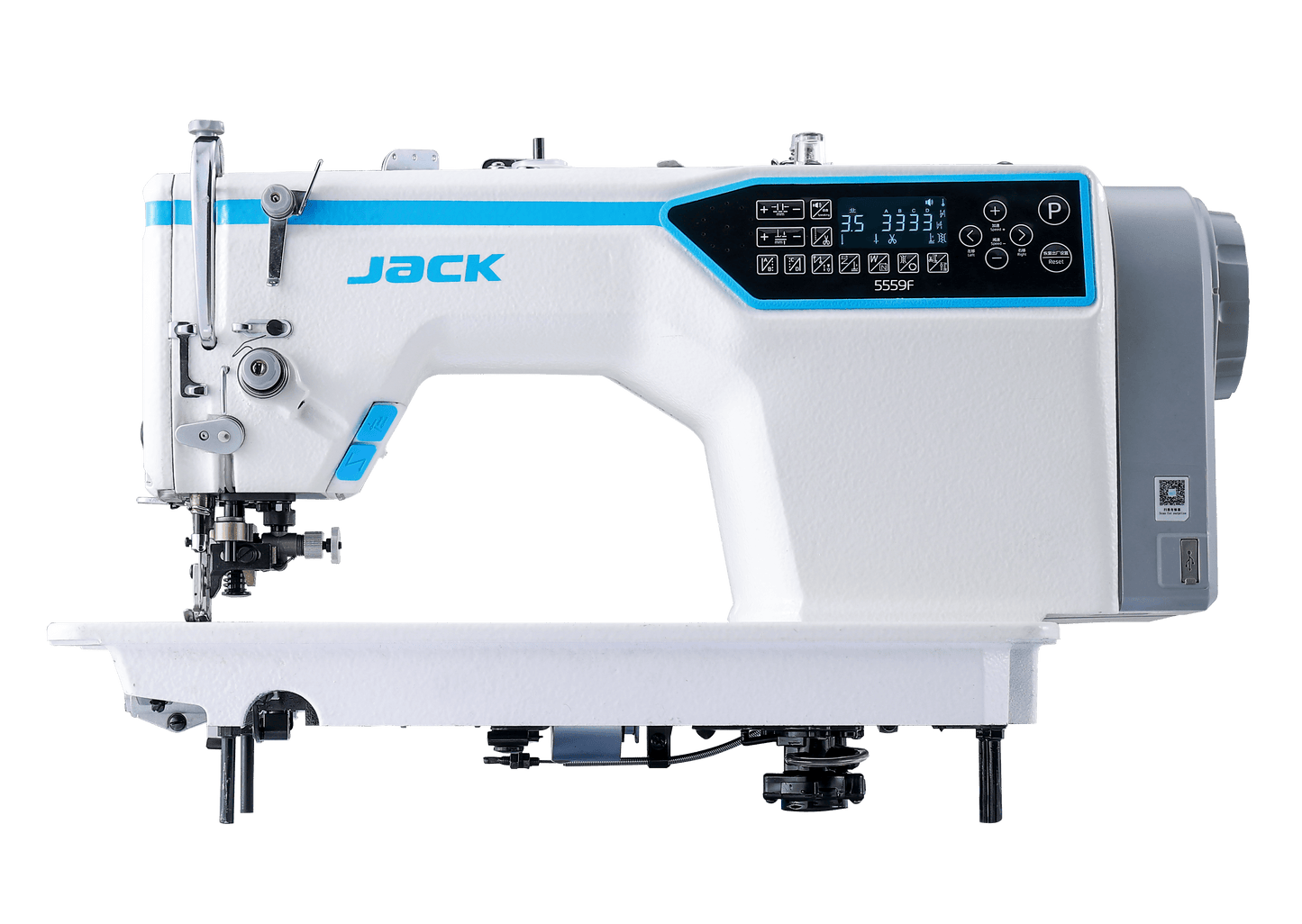

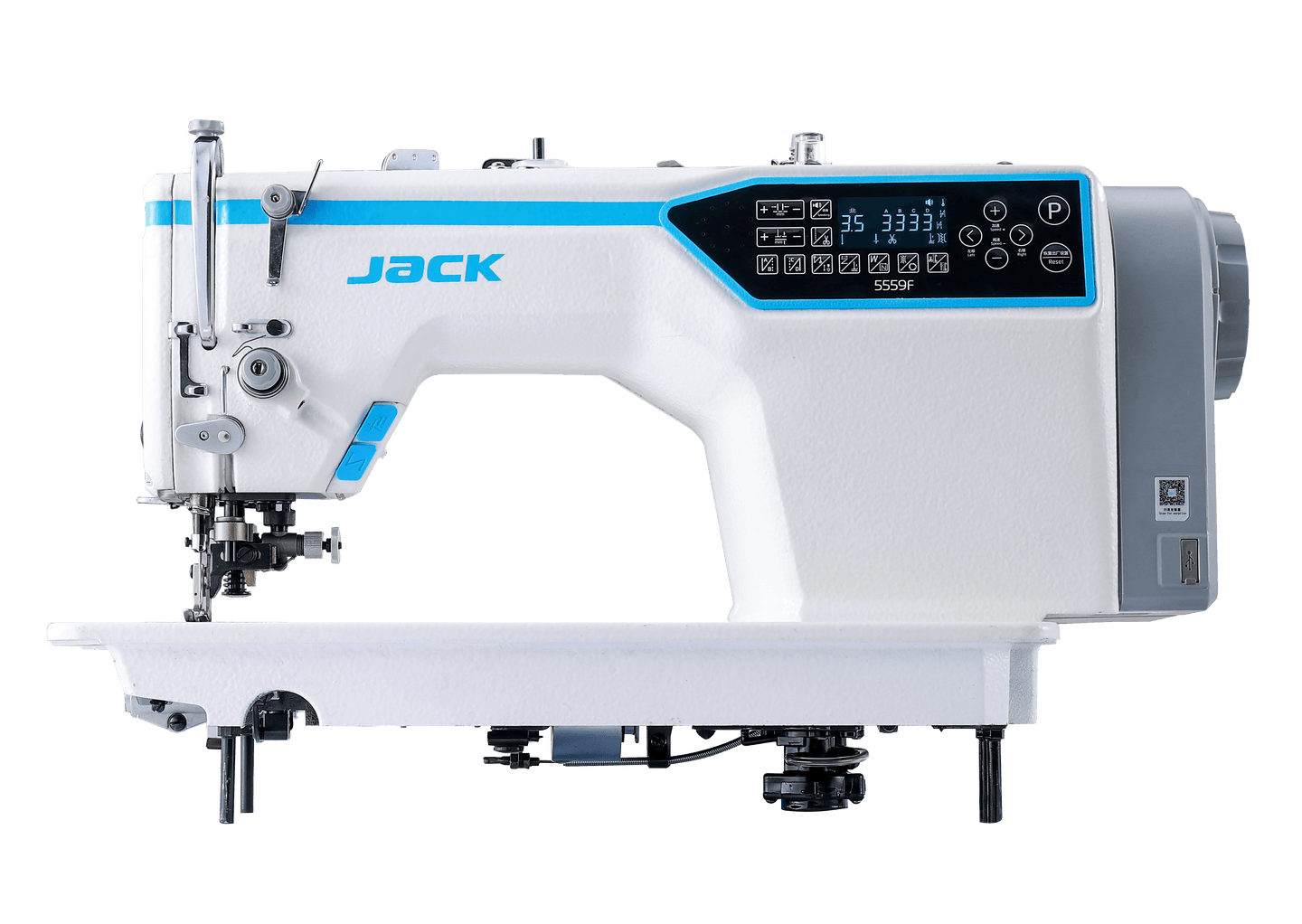

A digital lockstitch machine that sews and trims the fabric edge together.

The Jack JK-5559F pairs a direct-drive digital lockstitch head with a built-in edge cutter, so the seam is sewn and trimmed in one pass. Stitch length and foot lift are both digitally controlled, which helps workshops hold a consistent seam allowance across long production runs of uniforms and workwear for UAE and GCC garment makers.

Key features

  • Built-in edge cutter sews and trims the fabric edge in one operation
  • Digital stitch length control down to 0.1 mm via stepper motor, with a length-lock function

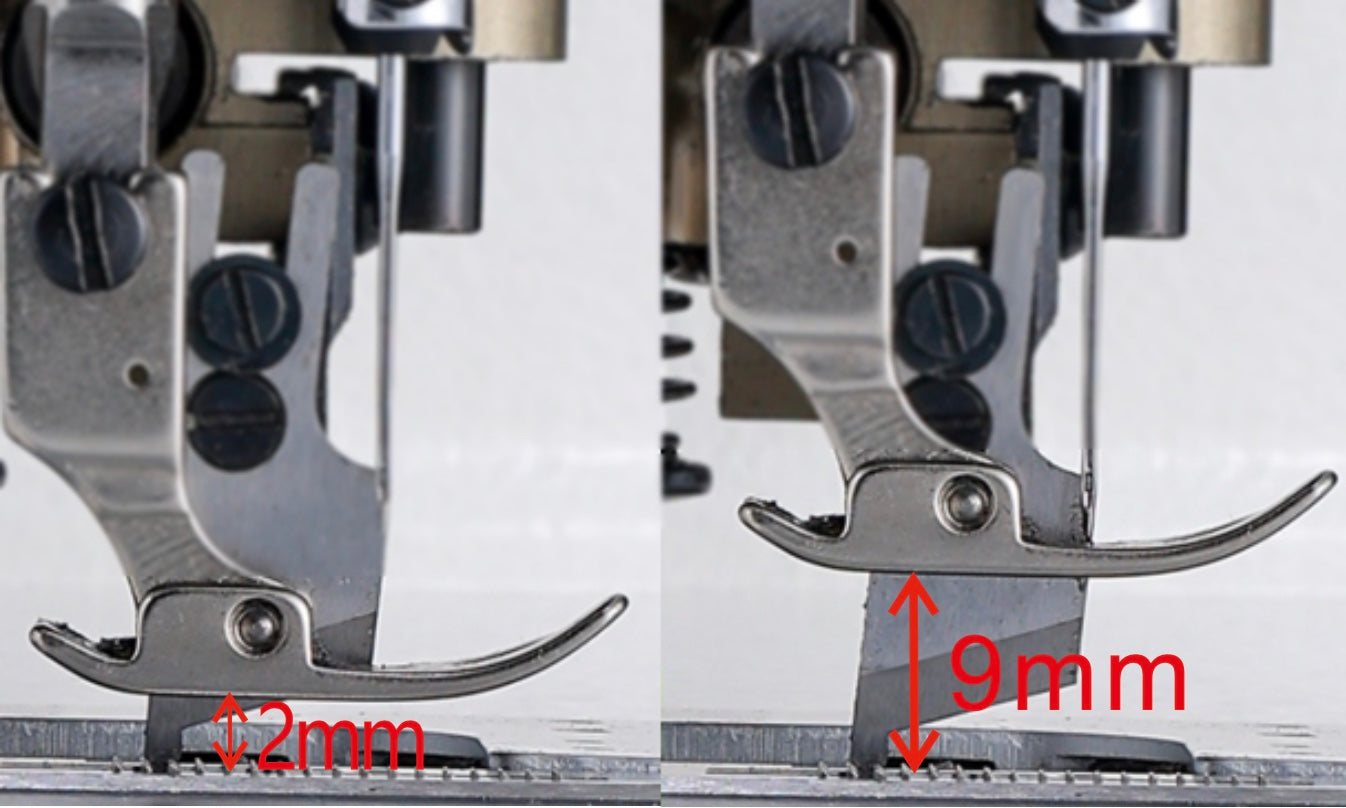

  • Digital footlifter, adjustable up to 9 mm from the control panel
  • Silent digital bartacking reduces noise from the stepper-motor structure
  • Sewing motifs function creates ornamental stitches using alternating stitch length
  • Voice guide walks the operator through machine functions and flags errors with troubleshooting tips
  • Semi-dry head lubrication keeps oil away from the fabric

Specifications

Spec Detail
Model JK-5559F-W
Stitch type Single needle lockstitch, digital, edge cutter
Needle system DB×1, size 11-18
Thread count 2
Stitch length 5 mm
Presser foot lift 0-9 mm
Max sewing speed 4,000 s.p.m.
Knife distance 1/8 inch
Machine head dimensions 695 × 295 × 550 mm
Weight (net/gross) 40 / 46 kg
Request a quote

Get a price for the Jack JK-5559F, Digital Lockstitch with Edge Cutter

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
