Jack Catalogue and specifications
Jack JK-T9270D and JK-T9280D catalogue (PDF)
Covers JK-T9270D and JK-T9280D
Jack's shared catalogue for the JK-T9270D and JK-T9280D feed-off-the-arm double chainstitch machines. The seam passes around the cylinder arm instead of under a flat bed, so jeans, shirt, workwear and uniform lines close side seams, sleeves and inseams flat.
2 pages, Jack Technology Co., Ltd. catalogue, Al Borj edition, October 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.
What the Jack JK-T9270D and JK-T9280D catalogue covers
Two pages in English: the cover, then the advantages, the stitch types and the technical parameter table. The JK-T9270D comes with 2 or 3 needles; the JK-T9280D is the 3-needle, 6-thread build for heavyweight denim and workwear.
Tell us the seam and the fabric weight, because heavy builds move from TVx64 to TVx5 needles. Al Borj supplies, installs and services both from Sharjah and Accra.
Machine type: Feed-off-the-arm double chainstitch machines.
- Needles
- 2 or 3 (JK-9270); 3 needles, 6 threads (JK-9280D)
- Needle system
- TVx64 12# (standard); TVx5 21# (heavy-duty variants)
- Max sewing speed
- 3,500 s.p.m
- Presser foot lift
- 10 mm (JK-9280D)
- Net / gross weight
- 40 / 55 kg (standard); 56 / 60 kg (heavy-duty variants)
Figures from the Jack catalogue.
Pages from the Jack JK-T9270D and JK-T9280D catalogue
Download the Jack JK-T9270D and JK-T9280D catalogue (PDF, 2.2 MB)

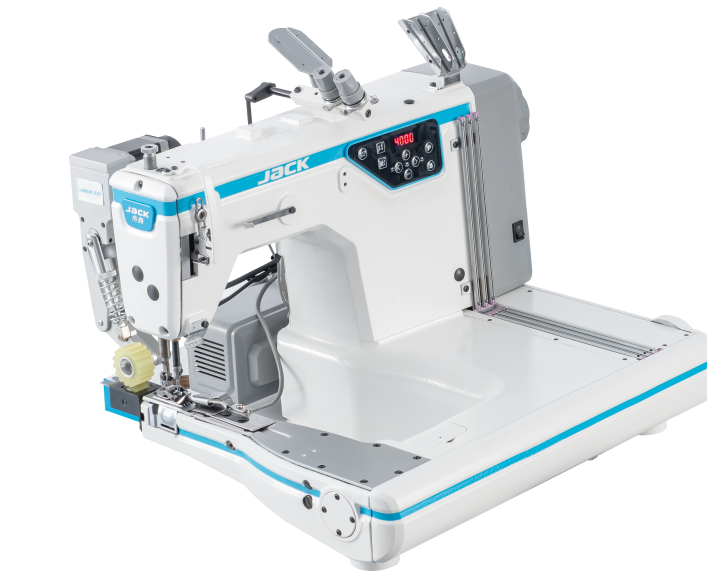

Jack JK-9270, Feed-off-the-Arm Machine

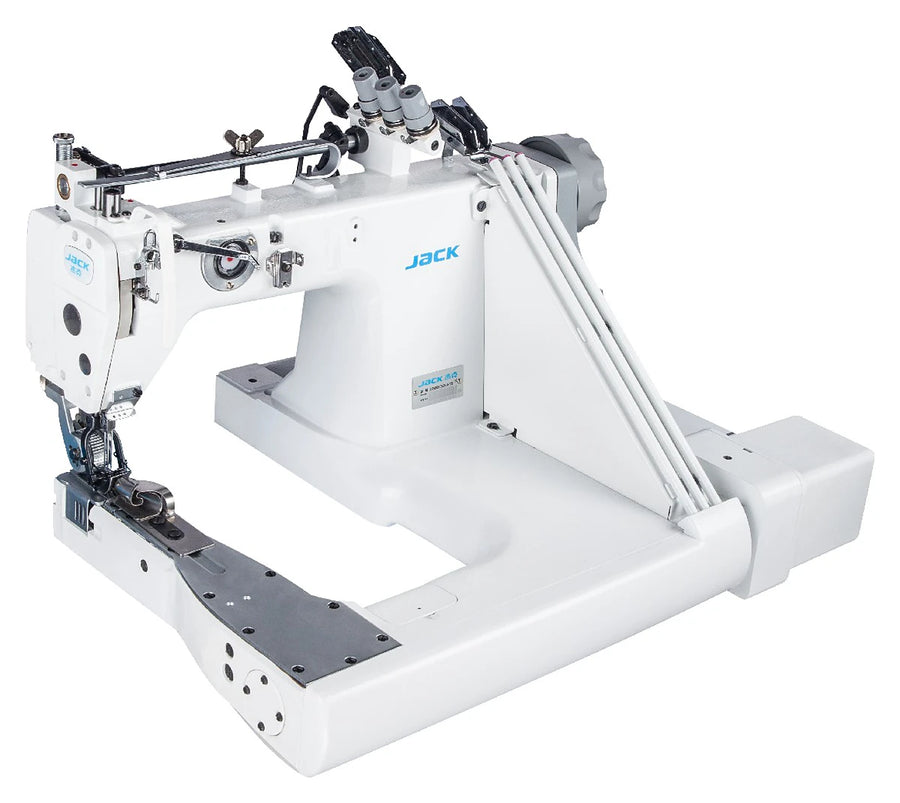

Jack JK-9280D, 3-Needle Feed-off-the-Arm Chainstitch Machine
