Jack Catalogue and specifications

Jack M9 catalogue (PDF)

Jack's catalogue for the M9 template sewing machine, whose head turns through 360°. The stitch keeps the same direction on curves and corners, so garment and uniform factories sew quilted panels and pattern stitching from a template instead of guiding by hand.

Download the catalogue (PDF, 2.2 MB) Jack M9: photos and quote

2 pages, Jack Technology Co., Ltd. catalogue, Al Borj edition, October 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.

Jack M9 catalogue, page 2: front page, the M9 anti-thread breakage template machine

What the Jack M9 catalogue covers

Two pages in English: the front page with Jack's anti-thread breakage design, then the thread control system, the features and the specifications. The sewing area is 1400 × 950 mm.

A 700 kg machine with a 2200 × 1220 mm footprint needs its place planned, so we start from your floor plan. Al Borj supplies, installs and services the M9 from Sharjah and Accra.

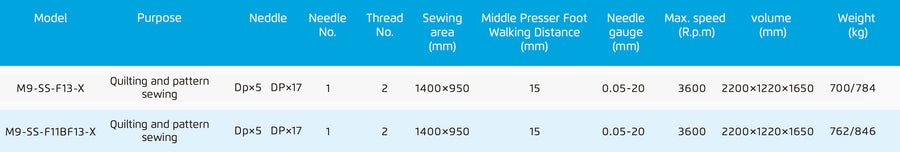

Machine type: Template sewing machine with 360° rotating head.

Sewing area
1400 x 950 mm
Max. speed
3600 rpm
Needle
DPx5 / DPx17
Middle presser foot walking distance
15 mm
Weight
700 / 784 kg (net/gross)

Figures from the Jack catalogue.

Pages from the Jack M9 catalogue

Jack M9 catalogue, page 2: front page, the M9 anti-thread breakage template machine
Page 2
Jack M9 catalogue, page 3: the thread control system, features and specifications
Page 3

Download the Jack M9 catalogue (PDF, 2.2 MB)
