Built for garment lines that finish denim, shirts, and workwear on a curved seam.

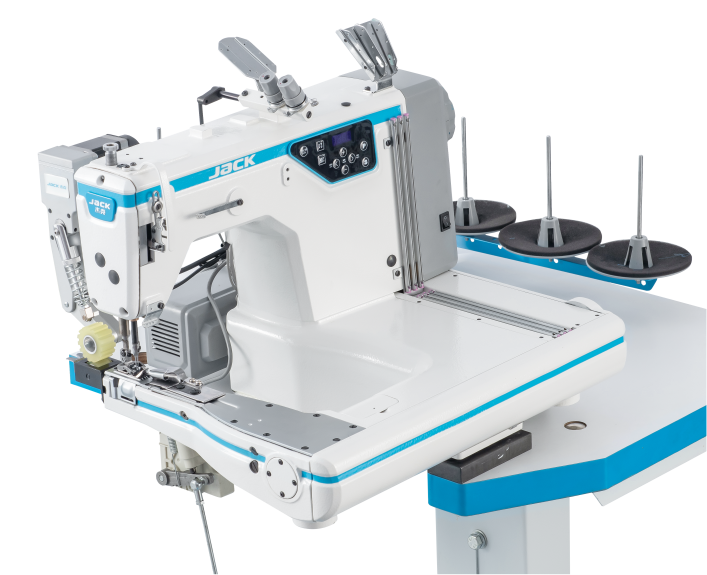

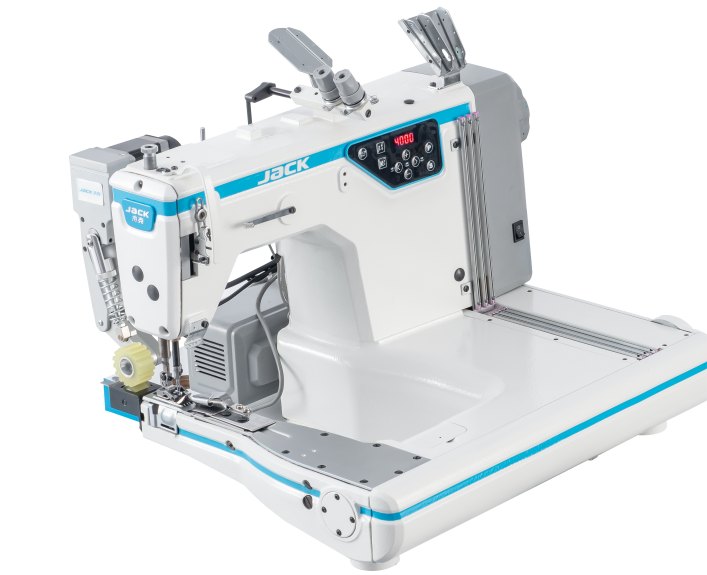

The Jack JK-9270 is a feed-off-the-arm chainstitch machine for cylindrical parts of a garment, such as sleeves, side seams, and waistbands. It suits UAE and GCC garment workshops making uniforms, shirts, and denim, where a clean, flat seam matters. The cylindrical arm bed lets fabric pass around the machine instead of under a flat bed, so curved and tubular seams close without puckering.

Key features

  • Two-needle or three-needle double chainstitch, with automatic needle positioning
  • 750W direct-drive motor with an integrated control panel
  • Push-button stitch length adjustment
  • Built-in motorised puller or external belt-driven puller options for even fabric feed
  • Removable interlock guide for double seams and joint stitching
  • Adjustable LED work light

Specifications

Spec Detail
Stitch type Double chainstitch, feed-off-the-arm
Needle configuration 2-needle or 3-needle
Needle system TVx64 12# (standard); TVx5 21# (heavy-duty variants)
Max sewing speed 3,500 s.p.m
Motor 750W direct-drive, integrated panel
Package dimensions 580 x 535 x 475 mm
Net / gross weight 40 / 55 kg (standard); 56 / 60 kg (heavy-duty variants)
