Jack H2-A catalogue (PDF)

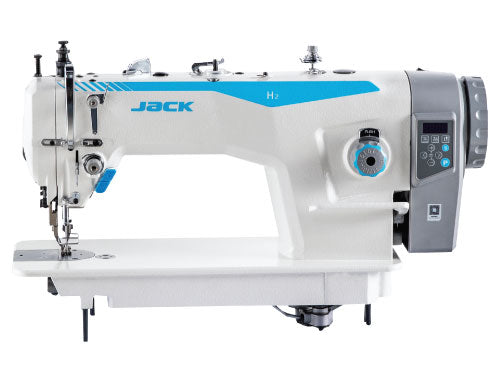

Jack's catalogue for the H2, a top and bottom feed lockstitch machine with the motor built into the head. The top feed moves the upper layer with the lower one, so heavy workwear, bags, leather and upholstery do not shift under the foot on a long seam.

Download the catalogue (PDF, 2.9 MB) Jack H2-A: photos and quote

2 pages, Jack Technology Co., Ltd. catalogue, Al Borj edition, October 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.

Jack H2-A catalogue, page 2: front and back cover, the H2 power saving direct drive top and bottom feed machine

What the Jack H2-A catalogue covers

Two pages in English: the cover, then the features, applications and specification table, which lists the H2-A-CZ for normal material with an 8 mm stitch and the H2-A-CZ-12 with a 12 mm stitch.

Jack states the 750 W motor and the top feed sew 10 layers of medium-light leather. Al Borj supplies, installs and services the H2-A from Sharjah and Accra.

Machine type: Direct-drive top and bottom feed lockstitch machine.

Needle
DP x 17, 20-23# (H2-A-CZ); 22# (H2-A-CZ-12)
Stitch length
8 mm (H2-A-CZ); 12 mm (H2-A-CZ-12)
Presser foot lift
Up to 16 mm
Dimensions
720 x 280 x 570 mm
Net / gross weight
35 / 42 kg

Figures from the Jack catalogue.

Pages from the Jack H2-A catalogue

Jack H2-A catalogue, page 2: front and back cover, the H2 power saving direct drive top and bottom feed machine
Page 2
Jack H2-A catalogue, page 3: features, applications and specifications
Page 3

Download the Jack H2-A catalogue (PDF, 2.9 MB)
