RichpeaceTripleCombinationSpecial Shaped-Hole Perforation, Embroidery and Rotary Stitching Machine

Also listed as RPCE-L-SP+E+S, Richpeace special hole 3 in 1 and Perforation (special-hole) + Embroidery + Sewing

Punches shaped holes such as diamonds, squares, ovals and slots at any angle, then embroiders and sews the same leather panel with a 360° rotary sewing head. For seat and interior plants whose designs need more than round perforation.

Built for Automotive interiorsCar seat upholsteryFurniture upholstery

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

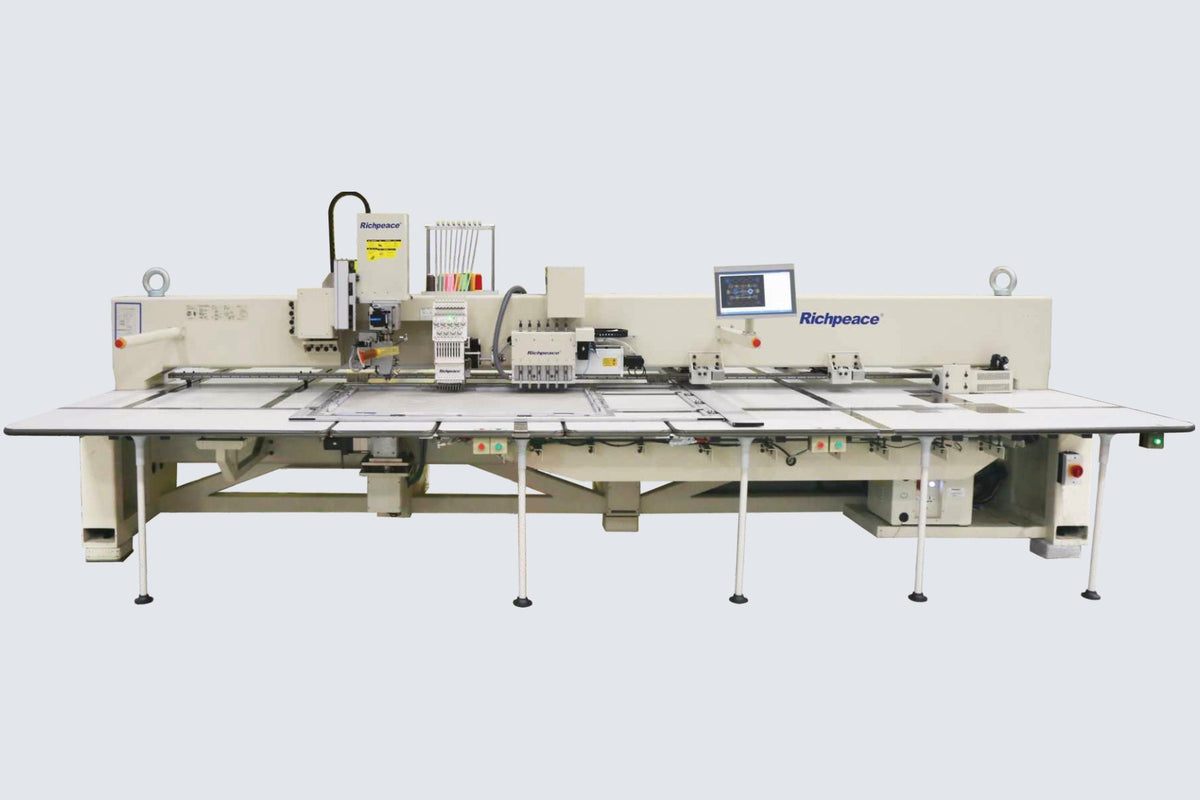

Richpeace Triple Combination Special hole punching, embroidery and rotary sewing machine, full view with the leather frame and control screen
  • 6knivesShaped punching knives in the head
  • 0.8-10mmHole size range
  • 360°Knife and sewing head rotation
  • 1,200stitches/minMax sewing speed
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The Triple Combination Special up close

5 photos · tap to enlarge

The Richpeace Triple Combination Special in 30 seconds

What it is

Richpeace's top triple combination machine: a rotary punching head that holds up to six shaped knives, a 9-colour embroidery head and a 360° rotary sewing head on one bridge, all working on one clamped leather panel.

Who it's for

Car seat, aircraft seat and floor mat makers, furniture upholsterers and leather goods plants in the UAE, GCC and Africa whose designs use diamond, square, oval or other shaped holes.

Why this model

Choose the Special when round holes are not enough. Each knife turns to any angle, so a diamond or a slot can follow the line of the design. If every hole you punch is round, the Rotary or the Basic does the job.

Bringing the Triple Combination Special into your plant

A triple combination machine takes over the separate punching, embroidery and sewing stations for decorated panels. We plan it around your panels and knife shapes and stay with you after it is running.

  1. 01

    Panel review

    Send us your panel drawings, hole patterns and leather. We check them against the Special's working area and hole sizes and recommend the version and size.

  2. 02

    One quotation

    Machine, working area, CAD and options, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians install the machine, connect power and compressed air, and train your operators and pattern maker at your plant.

  4. 04

    Parts and service

    Punches, needles, hooks and other Richpeace parts through us, and service visits once the machine is in production.

What the Triple Combination Special does on a factory floor

Diamond holes punched in red leather by Richpeace's rotary special-hole punching head, each knife turned to follow the circle

Rotary special-hole punching head

Shaped holes, turned to follow the design

The rotary punching mechanism holds up to six shaped knives. A motorised lift switches the knives automatically and a servo motor turns each knife to any angle through 360°. Richpeace makes knives for round, square, rectangular, diamond and elliptical holes and other shapes, from 0.8 to 10 mm.

On the factory floorBecause a servo motor turns each shaped knife to any angle, diamond and rectangular holes can follow a curved line in the design.

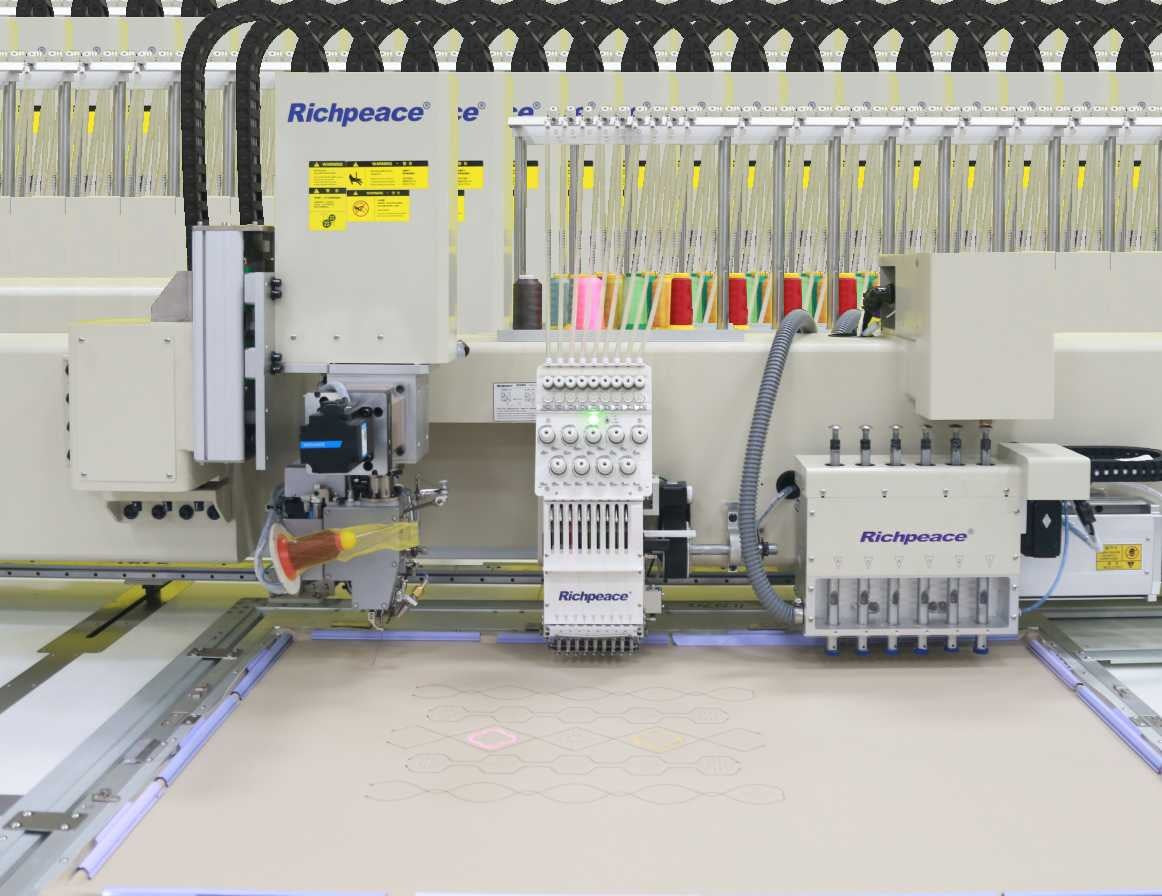

Richpeace Triple Combination Special rotary sewing head, 9-colour embroidery head and special hole punching head

Three heads, one clamping

Punch, embroider and sew in one program

The 360° rotary sewing head, the 9-colour embroidery head and the punching head share one bridge over an aluminium clamping frame made for leather. Richpeace rates it at up to 800 holes, 800 embroidery stitches and 1,200 sewing stitches a minute.

On the factory floorBecause the punching, embroidery and stitching heads share one bridge over one clamping frame, the panel is clamped once and the holes, motif and seams stay in register.

Richpeace special-hole triple combination machine sewing and punching heads over red leather

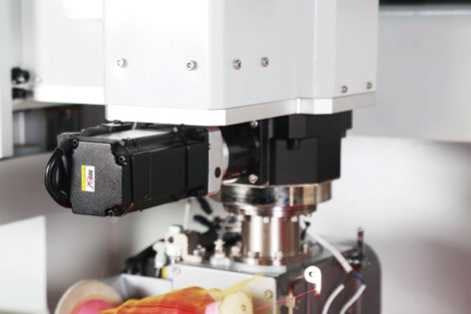

360° rotary sewing head

Even stitches round every curve

The sewing head and its rotary case are turned together by Richpeace's rotating control device, so stitches look the same in every direction. A pneumatic lift raises the sewing head 50 mm on its own, clear of the frame.

On the factory floorBecause the stitching head and its rotary case turn together, curved and diamond seams on seat covers look the same in every direction.

  • Air suction through the punch

    Leather chips are drawn away through the hollow punch bar, with an industrial vacuum cleaner on the machine.

  • 15-inch control screen

    Richpeace's third-generation control on a 15-inch industrial screen, with 8 GB storage and USB pattern input.

  • Standard knife set

    Round 1.0, 1.2, 1.5 and 2.0 mm, square 1.5 mm and diamond 1.0 × 2.0 mm. Other sizes up to 10 mm are made to order.

Options from Richpeace: Intelligent SewPer CAD for pattern design, and a stainless-steel table plate.

Richpeace Triple Combination Special specifications

Punching, embroidery and sewing

Punching headRotary, up to 6 shaped knives, 360° knife rotation
Knife shapesRound, square, rectangular, diamond, elliptical and other shapes
Hole size0.8-10 mm
Standard knivesRound 1.0, 1.2, 1.5, 2.0 mm; square 1.5 mm; diamond 1.0 × 2.0 mm
Punching speedUp to 800 holes/min
Embroidery head9 colours, 9#-16# needles
Embroidery speedUp to 800 stitches/min
Sewing headRotary 360°, DP×17 needles, 18#-23#
Sewing speedUp to 1,200 stitches/min
Stitch length0.1-12.7 mm

Control and drive

ControlRichpeace third-generation control, 15-inch industrial screen
Storage8 GB, USB pattern input
Sewing head liftPneumatic, 50 mm
LubricationAutomatic, rotary hooks, embroidery and sewing heads
Chip removalSuction through the hollow punch bar, industrial vacuum cleaner

Frame, power and size

Working area900 × 600 mm or 1200 × 800 mm
Material fixingAluminium clamping and locking frame for leather
PowerSingle-phase 220 V, 6 kW
Air pressure0.6 MPa
Machine size, 900 × 6004950 × 2175 × 1750 mm
Machine size, 1200 × 8005500 × 2575 × 1750 mm
Model codesRPCE-L-SP+E+S-1-900×600 or 1200×800-B-SP6+F9+IS2-VR1,VR2-LH50,RH360,AO-1P220

Figures from Richpeace's specification sheet for the RPCE-L-SP+E+S (14 December 2022, the catalogue on this page) and Richpeace's current product page. An older Richpeace leaflet for a three-phase build gives a 1-5 mm hole range and 1,000 stitches a minute; the current sheet and page give the figures above.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Richpeace Triple Combination SpecialFull specifications from Richpeace, PDF Download

Richpeace triple combination machines side by side

Feature
Richpeace Triple Combination Basic perforation, embroidery and fixed-head sewing machine
Richpeace Triple Combination Basic (Perforation + Fixed Sewing + Embroidery)
Richpeace Triple Combination Rotary with 360 degree rotary sewing head
Richpeace Triple Combination Rotary (Perforation + Rotary 360° Sewing + Embroidery)
This machine
Richpeace Triple Combination Special
Richpeace Triple Combination Special
Best forRound-hole patterns with straight seams and gentle curvesRound-hole patterns with curves, circles and diamond quiltingShaped holes (diamond, square, oval) at any angle
PerforationRound, 6 needle sizes, 0.8-2.5 mmRound, 6 sizes per head, 0.8-6 mmUp to 6 shaped knives, 0.8-10 mm, turned to any angle
Sewing headFixed head, up to 1,000 rpm360° rotary head, up to 1,200 stitches/min360° rotary head, up to 1,200 stitches/min
Embroidery9 colours, up to 850 rpm9 colours, up to 850 stitches/min9 colours, up to 800 stitches/min
Working area900 × 600 or 1200 × 800 mm900 × 600 or 1200 × 800 mm900 × 600 or 1200 × 800 mm
Power and airSingle-phase 220 V, 5.5 kW, 0.6 MPaSingle-phase 220 V or three-phase 380 V, 4.5-4.8 kW, 0.4 MPaSingle-phase 220 V, 6 kW, 0.6 MPa
LinkView Triple Combination Basic (Perforation + Fixed Sewing + Embroidery)View Triple Combination Rotary (Perforation + Rotary 360° Sewing + Embroidery)You are here

Questions about the Richpeace Triple Combination Special

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Richpeace RPCE-L-SP+E+S the same as the Triple Combination Special?

Yes. RPCE-L-SP+E+S is Richpeace's model code: SP for special-hole punching, E for embroidery and S for sewing. Richpeace calls it the Automatic Perforation (special-hole) + Embroidery + Sewing (rotating head) Machine.

What is the price of the Richpeace Triple Combination Special in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the working area, the options such as Richpeace's CAD, and where it is delivered. Richpeace builds each machine to order. Send us your panels and your city on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Richpeace Triple Combination Special in Ghana, Kenya or Ethiopia?

It depends on the working area, the options, and delivery to your city. Send us your panels and your city on WhatsApp and we reply with one quotation in AED covering the machine, delivery to your plant and installation, usually within one working day.

Is it suited to a car seat or aircraft seat factory?

Yes, for decorated panels with shaped perforation: seat inserts, backs, headrests and trim. Richpeace lists car seats, aircraft seats, foot mats and furniture among its uses. The panel is clamped once and leaves the machine punched, embroidered and sewn, ready for assembly.

Can you equip the rest of the line, not just this machine?

Yes. Tell us what you make and your daily output. We quote the cutting, the heavy-duty and walking-foot sewing machines that close the covers, and the finishing, and we can visit your plant for an assessment first.

What hole shapes and sizes can it punch?

Richpeace makes knives for round, square, rectangular, diamond and elliptical holes and other shapes, from 0.8 to 10 mm. The standard set is round 1.0, 1.2, 1.5 and 2.0 mm, square 1.5 mm and diamond 1.0 × 2.0 mm; other sizes are made to order. Up to six knives sit in the head at once.

Special, Rotary or Basic: which one do I need?

If every hole in your designs is round, the Rotary (360° sewing head) or the Basic (fixed sewing head) is enough. Choose the Special when you need diamonds, squares, slots or ovals, or holes that turn with the design. All three embroider in 9 colours and come with a 900 × 600 or 1200 × 800 mm working area.

Do you deliver the Richpeace Triple Combination Special to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?

Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install the machine at your plant, connect power and compressed air, and train your operators and the person who draws the patterns. Richpeace specifies single-phase 220 V, 6 kW, and compressed air at 0.6 MPa for this machine.

Can I see the Triple Combination Special before I order?

Book a meeting with our Richpeace specialist at our showroom in Industrial Area 4, Sharjah. Bring your panels and patterns. We go through the three versions with you, show Richpeace's videos of the machine at work and quote in AED. The Triple Combination Special is built to order, so ask us whether one can be seen running.
