For car-seat and leather upholstery makers whose stitch lines curve: the sewing head turns through 360° so every stitch sits the same way round the curve.

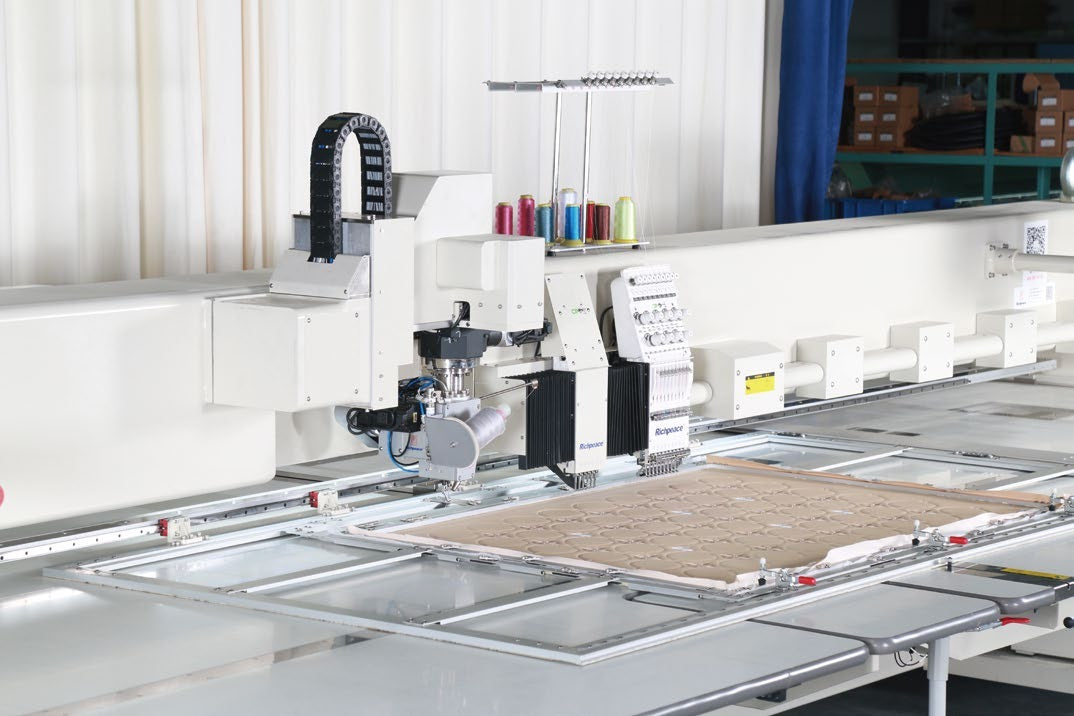

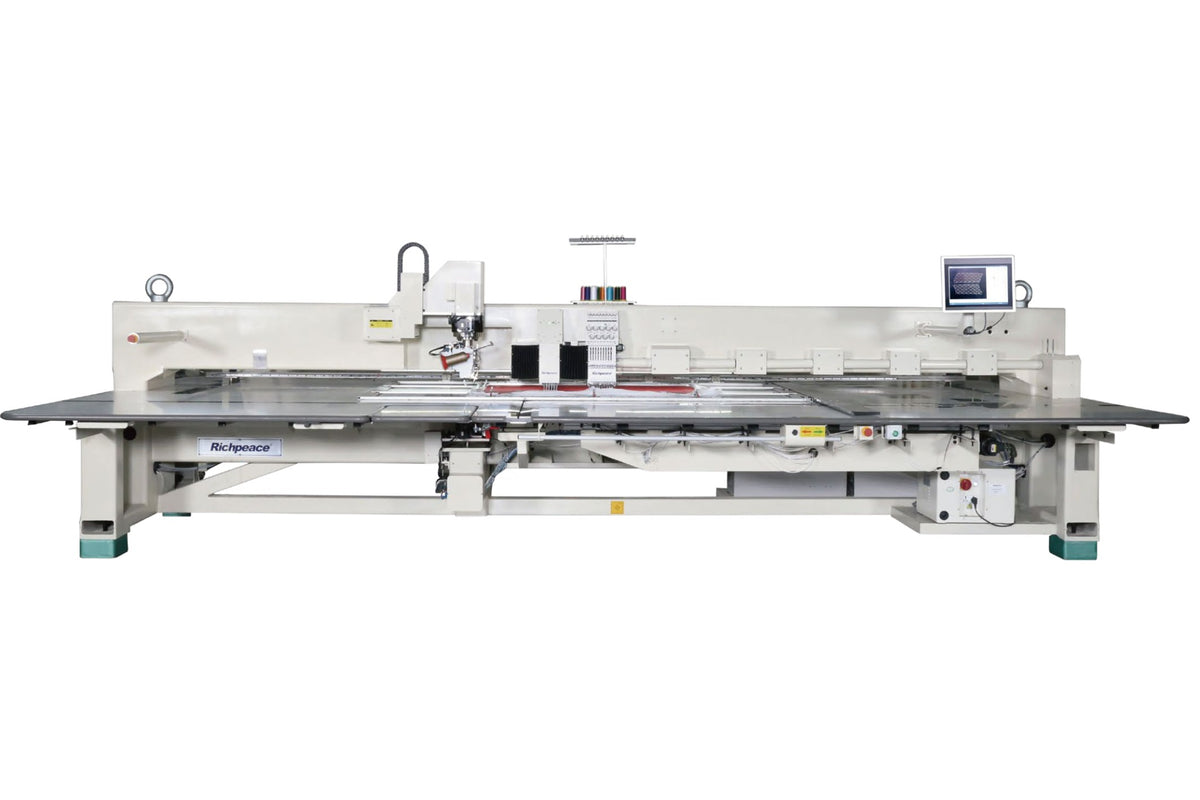

The Richpeace Triple Combination Rotary (model RPCE-L-P+E+S with the RH360 rotary head) does the same three jobs as the Triple Combination Basic: it punches round holes, embroiders in up to 9 colours and sews the same leather panel in one cycle. The difference is the sewing head. The head and its rotary hook base are driven independently and rotate together through 360°, following the seam. That removes the visible difference between stitches sewn in opposite directions on curves, circles and diamond quilting. If you need square, diamond, oval or other shaped holes, look at the Triple Combination Special.
Key features

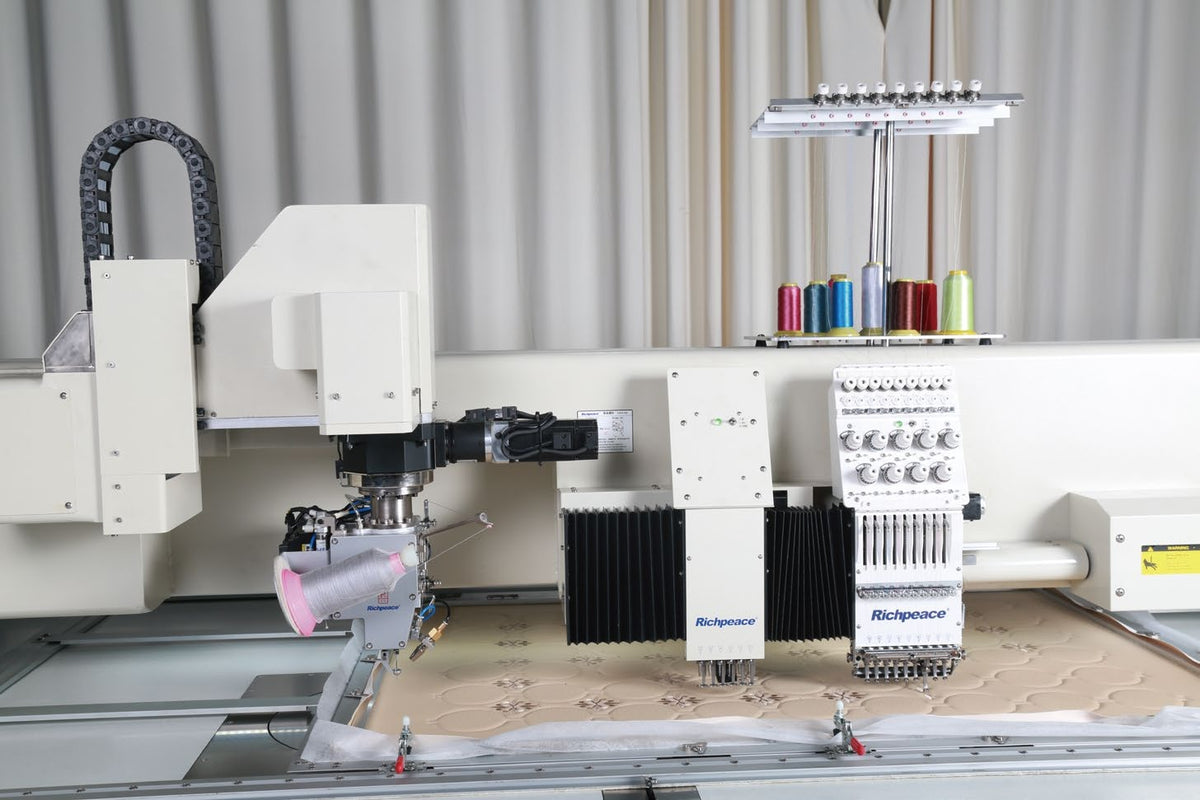

Rotary 360° sewing head: the head and the hook base rotate in step, each independently driven
Light-duty punching head with 6 puncher sizes; the punchers are hollow and suck the scraps away, and the graded sizes make gradual-change hole patterns easy
9-colour embroidery head with automatic lubrication
Pneumatic lift slide: the sewing head lifts up and down independently, 50 mm stroke
Richpeace control system with servo control, for accurate perforation, embroidery and sewing
Integrated leather frame and a powerful industrial vacuum cleaner
Automatic lubrication for the punching, embroidery and sewing heads
Option: Richpeace SewPer CAD for designing any pattern
Round hole, 0.8 to 6 mm, 6 sizes on each punching head
Stitch length
0.1 to 12.7 mm
Needles
Sewing 19#, 22#; embroidery 11#
Rotary hooks
Sewing 2 × vertical; embroidery 1 × vertical
Sewing head lift
50 mm
Power and air
Single-phase 220 V or three-phase 380 V, 4.5 to 4.8 kW; 0.4 MPa
Setup size (L × W × H)
5138 × 2280 × 1750 mm (900 × 600 model); 5738 × 2680 × 1750 mm (1200 × 800 model)

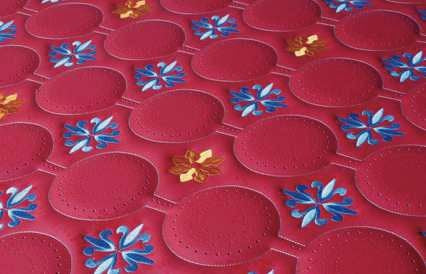

Used for car seats, floor mats, aircraft seats, furniture, sports and leather shoes, leather jackets and leather bags.
The three Richpeace triple combination machines
Richpeace makes the triple combination machine in three versions. All three punch, embroider and sew leather on one frame. They differ in the sewing head and in the holes they punch.
Special hole punching: round, square, rectangular, diamond, oval and other shapes at any angle, 0.8 to 10 mm
RPCE-L-SP+E+S
All three have a 9-colour embroidery head and come in two working areas, 900 × 600 mm and 1200 × 800 mm. Al Borj supplies, installs and services them across the UAE and the GCC.
