Richpeace Car-Interior Flatbed Scanning Digitizer, automotive trim pattern scanning

For automotive trim and upholstery shops that still trace car seat patterns by hand.

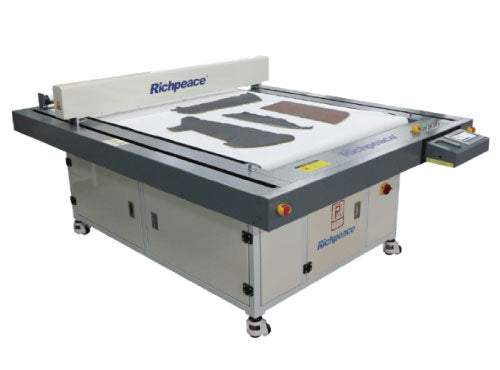

The Richpeace Car-Interior Flatbed Scanning Digitizer turns a paper pattern or a physical sample into a CAD file by scanning it flat on the bed. It is built for car seat panels, door armrests, foot pads, and cushions, where sample shapes are large, irregular, and thick. One button starts the scan, and the machine outputs a standard DXF file that most CAD software opens directly, so the pattern goes straight into the cutting room without being redrawn. Automotive upholstery and trim workshops across the UAE and GCC use it to move a shelf of ageing physical samples into a digital library before those samples distort or get lost.

The bed scans in linear mode rather than photographing the sample, so it needs no extra light compensation and returns the same result on a night shift as on a day shift. Scanning height is set from the touch screen, which lets it read a thick foam cushion as cleanly as a flat paper pattern.

Key features

• Linear scanning mode with no extra light compensation, so results stay consistent in any lighting
• One-button automatic scanning, so an operator needs little training to run it
• 150-300 DPI resolution producing a 1:1 panoramic image that captures contours, notches, and inner holes
• Scanning height set from the touch screen, to suit samples of different thickness
• Background colour switches quickly to hold contrast against light or dark samples
• Outputs standard DXF, compatible with most CAD software already in the pattern room
• Six bed sizes from 1000 x 1200 mm up to 2500 x 1600 mm for long or wide trim panels

Specifications

Richpeace publishes this digitizer as a family of six bed sizes rather than as one fixed model. The full code carries the bed size in the middle, for example RPFP-NM-DI-1-2000x1600-SGSF-NA-1P220 for the 2000 x 1600 mm bed. Tell us the largest sample you need to scan and we will confirm the exact configuration and its installation footprint on the quotation.
