RichpeaceTripleCombinationBasic Automatic Perforation, Embroidery and Sewing Machine
Also listed as RPCE-L-P+E+S, Richpeace 3 in 1 and Perforation + Sewing + Embroidery machine
One machine that punches the perforation pattern, embroiders the motif and sews the decorative seams on a leather panel in a single clamping. Built for car seat cover and interior trim plants that want those three jobs done without moving panels between machines.
Built for Automotive interiorsCar seat upholsteryFurniture upholstery
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 1200 × 800mmLargest working area
- 6sizesRound punching needles, 0.8-2.5 mm
- 9coloursEmbroidery head
- 1,000rpmMax sewing speed
- 5,000+factories supplied by Al Borj in the Middle East and Africa
The Triple Combination Basic up close
5 photos · tap to enlargeThe Richpeace Triple Combination Basic in 30 seconds
What it is

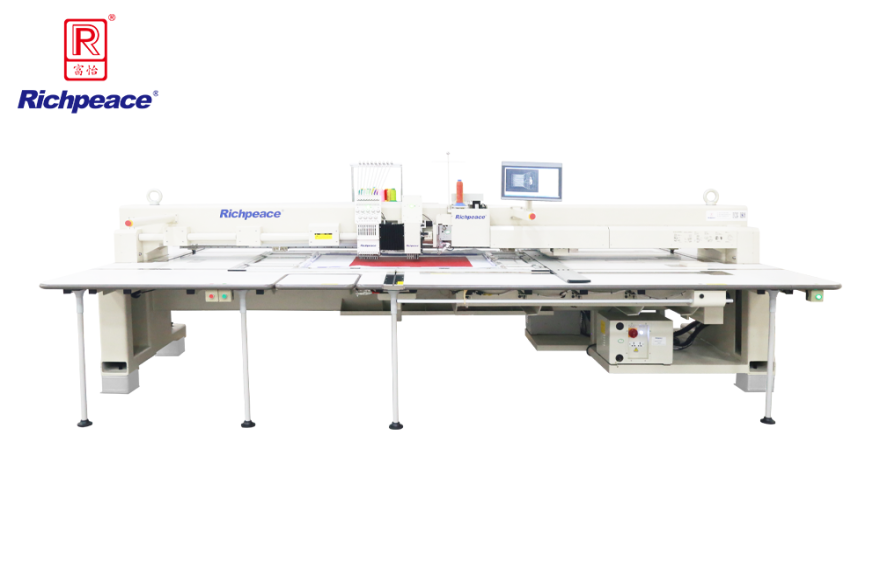

An automatic machine with three heads on one bridge: a perforation head with six round punching needles, a 9-colour embroidery head and a fixed lockstitch sewing head. The leather is clamped once in a frame and one program runs all three jobs.
Who it's for
Car seat cover and automotive interior makers, furniture upholsterers and leather goods workshops in the UAE, GCC and Africa that decorate leather panels with holes, logos and stitch lines.
Why this model
Pick the Basic when your stitch lines are straight or gently curved and your holes are round. For tight curves and circles choose the Rotary; for diamond, square or oval holes choose the Special.
Bringing the Triple Combination Basic into your plant
A triple combination machine takes over the separate perforating, embroidery and sewing stations for decorated panels. We plan it around your panels and stay with you after it is running.
- 01
Panel review
Send us your panel drawings, hole patterns and leather. We check them against the Basic's working area and hole sizes and recommend the version and size.
- 02
One quotation
Machine, working area, CAD and options, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians install the machine, connect power and compressed air, and train your operators and pattern maker at your plant.
- 04
Parts and service
Punches, needles, hooks and other Richpeace parts through us, and service visits once the machine is in production.
What the Triple Combination Basic does on a factory floor
Three heads, one clamping
Perforate, embroider and sew without moving the panel
Richpeace mounts the perforation head, the 9-colour embroidery head and the sewing head side by side on one bridge. Servo motors drive the main shaft and the frame, so the holes, the motif and the seams land where the pattern puts them.
On the factory floorBecause the perforation, embroidery and stitching heads share one bridge, one operator loads a panel once and unloads it finished, with no carrying between machines.
Round perforation, six sizes
Six needle sizes in one pattern

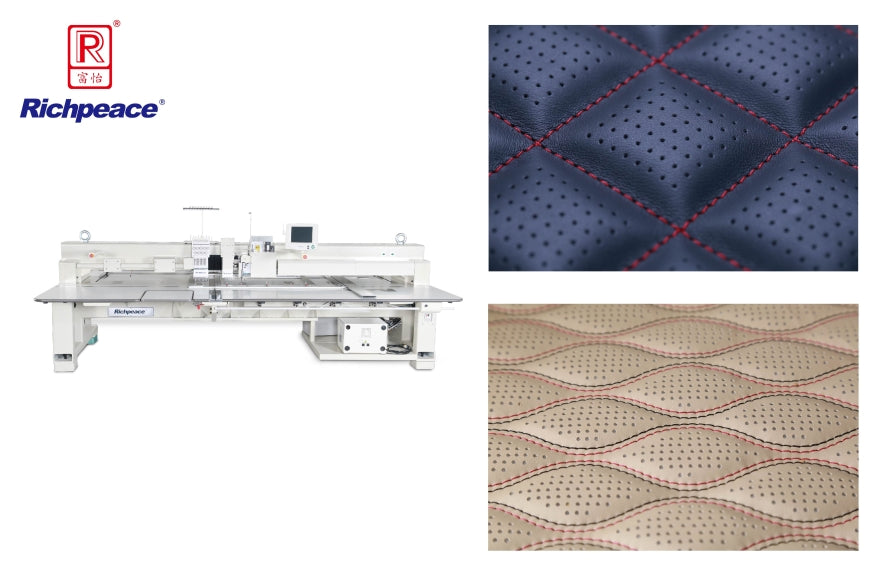

The perforation head carries six round punching needles of 0.8, 1.0, 1.2, 1.5, 2.0 and 2.5 mm, and a pattern can mix them, for example small holes at the edge of an insert growing larger towards the middle. Richpeace fits an automatic vacuum cleaner that takes the leather punchings away.
On the factory floorBecause one perforation head carries six needle sizes that a pattern can mix, seat inserts come off the machine with graded holes and no hand punching.
9-colour embroidery head
Logos and motifs on the same panel

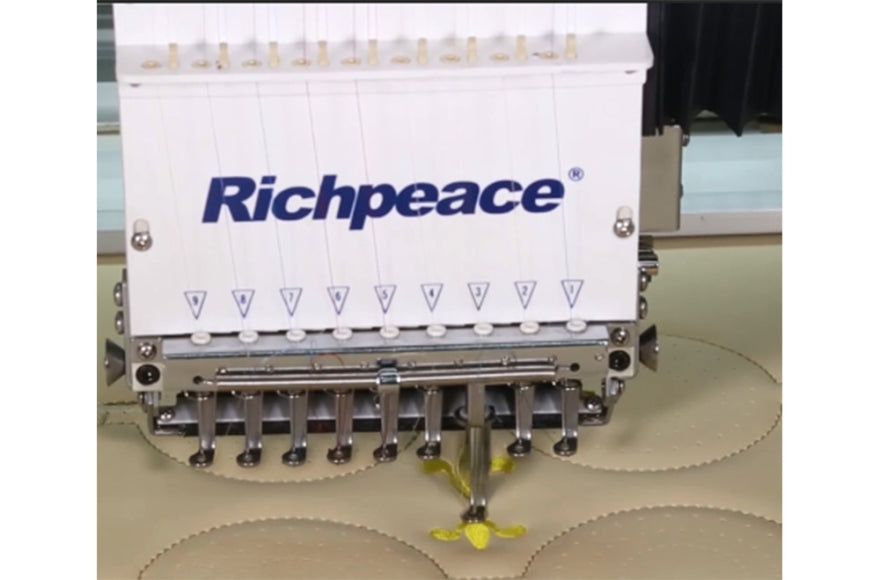

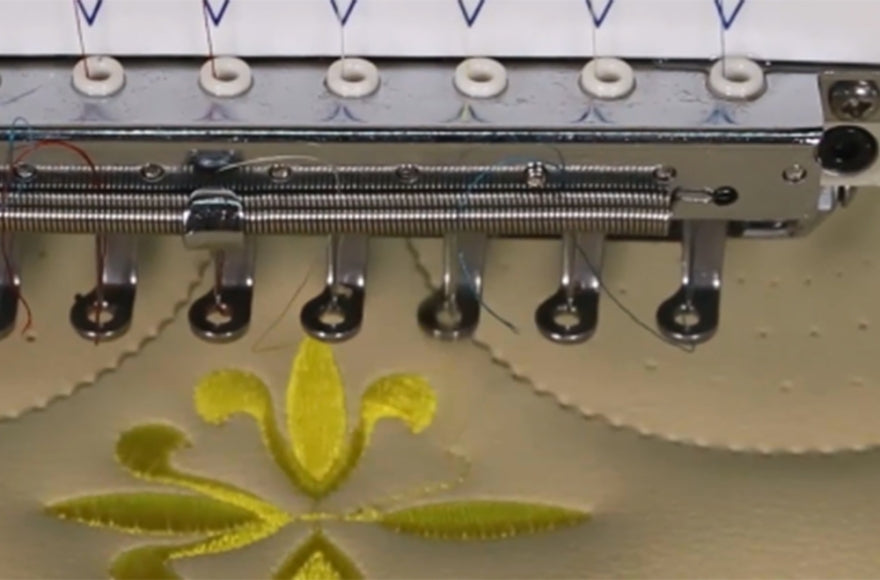

The embroidery head has 9 needles, so a motif can use up to 9 thread colours without re-threading. Richpeace rates it at up to 850 rpm with 11# needles, and the embroidery thread is trimmed by motor.
On the factory floorBecause the embroidery head has 9 needles, a logo in up to 9 colours is stitched in the same cycle as the holes, with no re-threading.
Lifting sewing head
The sewing head lifts 50 mm to clear the frame. Richpeace fits it to prevent frame collisions and unthreading.
Hooks from Japan
A 2X-size rotary hook on the sewing head and a 1X hook on the embroidery head, both original Japanese parts, according to Richpeace.
Automatic lubrication
An automatic lubricating system that Richpeace fits to extend service life and cut manual maintenance.
Options from Richpeace: PerSew CAD for designing combined perforation, embroidery and sewing patterns, and a pattern code scanner.
See the Triple Combination Basic sew
Richpeace Triple Combination Basic specifications
Perforation, embroidery and sewing
| Perforation head | 6 round punching needles |
|---|---|
| Needle sizes | 0.8, 1.0, 1.2, 1.5, 2.0 and 2.5 mm |
| Max perforation speed | 800 rpm |
| Embroidery head | 9 colours, 11# needles |
| Max embroidery speed | 850 rpm |
| Sewing head | Fixed, lockstitch, 18#, 21# or 23# needles |
| Max sewing speed | 1,000 rpm |
| Stitch length | 0.1-12.7 mm |
Control and drive
| Control | Richpeace third-generation computer control |
|---|---|
| Drive | Servo motors on the main shaft and the frame |
| Thread trimming | Embroidery motorised, sewing pneumatic |
| Sewing head lift | 50 mm |
| Rotary hooks | 2X sewing hook, 1X embroidery hook, made in Japan |
| Lubrication | Automatic |
Frame, power and size
| Working area | 900 × 600 mm or 1200 × 800 mm |
|---|---|
| Material fixing | Leather clamping frame |
| Power | Single-phase 220 V, 50 Hz, 5.5 kW |
| Air pressure | 0.6 MPa |
| Installation area, 900 × 600 | 4193 × 2100 × 1650 mm |
| Installation area, 1200 × 800 | 4793 × 2500 × 1650 mm |
| Model codes | RPCE-L-P+E+S-1-900×600 or 1200×800-B-P6+F9+IS2-VR1,VR2-LH50,AO-1P220 |
Figures from Richpeace's specification sheet for the RPCE-L-P+E+S (dated 19 August 2022, the catalogue on this page) and Richpeace's product page. Richpeace confirms the final configuration with each order.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Richpeace triple combination machines side by side
| Feature |
 |
 |
This machine
 |
|---|---|---|---|
| Best for | Round-hole patterns with curves, circles and diamond quilting | Shaped holes (diamond, square, oval) at any angle | Round-hole patterns with straight seams and gentle curves |
| Perforation | Round, 6 sizes per head, 0.8-6 mm | Up to 6 shaped knives, 0.8-10 mm, turned to any angle | Round, 6 needle sizes, 0.8-2.5 mm |
| Sewing head | 360° rotary head, up to 1,200 stitches/min | 360° rotary head, up to 1,200 stitches/min | Fixed head, up to 1,000 rpm |
| Embroidery | 9 colours, up to 850 stitches/min | 9 colours, up to 800 stitches/min | 9 colours, up to 850 rpm |
| Working area | 900 × 600 or 1200 × 800 mm | 900 × 600 or 1200 × 800 mm | 900 × 600 or 1200 × 800 mm |
| Power and air | Single-phase 220 V or three-phase 380 V, 4.5-4.8 kW, 0.4 MPa | Single-phase 220 V, 6 kW, 0.6 MPa | Single-phase 220 V, 5.5 kW, 0.6 MPa |
| Link | View Triple Combination Rotary (Perforation + Rotary 360° Sewing + Embroidery) | View Triple Combination Special (Special Hole Punching + Rotary Sewing + Embroidery) | You are here |
Questions about the Richpeace Triple Combination Basic
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Richpeace RPCE-L-P+E+S the same machine as the Triple Combination Basic?
Yes. RPCE-L-P+E+S is Richpeace's model code for this machine: P for perforation, E for embroidery and S for sewing. Richpeace calls it the Automatic Perforation + Sewing + Embroidery machine, and some buyers call it a 3 in 1. The full code adds the working area, 900×600 or 1200×800.
What is the price of the Richpeace Triple Combination Basic in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the working area, the options such as Richpeace's CAD, and where it is delivered. Richpeace builds each machine to order. Send us your panels and your city on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Richpeace Triple Combination Basic in Ghana, Kenya or Ethiopia?
It depends on the working area, the options, and delivery to your city. Send us your panels and your city on WhatsApp and we reply with one quotation in AED covering the machine, delivery to your plant and installation, usually within one working day.
Is it suited to a car seat cover factory?
Yes, for the decorated panels: seat inserts, backs, headrests and door trim. The leather is clamped once and the machine perforates, embroiders and sews it in one program, so those panels need fewer stations and less handling. The covers are then closed on lockstitch or walking-foot machines.
Can you equip the rest of the line, not just this machine?
Yes. Tell us what you make and your daily output. We quote the cutting, the heavy-duty and walking-foot sewing machines that close the covers, and the finishing, and we can visit your plant for an assessment first.
What hole sizes does the Basic punch?
Round holes in six sizes: 0.8, 1.0, 1.2, 1.5, 2.0 and 2.5 mm, all on one perforation head, and one pattern can combine them. For square, diamond, oval or other shaped holes up to 10 mm, Richpeace makes the Triple Combination Special.
What is the difference between the Basic and the Rotary?
The sewing head. On the Basic it is fixed, which suits straight seams and gentle curves. On the Rotary the sewing head and its hook turn through 360° to follow the seam, so stitches look the same in every direction on circles and diamond quilting. Richpeace rates the Rotary at up to 1,200 stitches a minute, against 1,000 rpm for the Basic.
Do you deliver the Richpeace Triple Combination Basic to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?
Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install the machine at your plant, connect power and compressed air, and train your operators and the person who draws the patterns. Richpeace specifies single-phase 220 V, 5.5 kW and compressed air at 0.6 MPa for this machine.
Can I see the Triple Combination Basic before I order?
Book a meeting with our Richpeace specialist at our showroom in Industrial Area 4, Sharjah. Bring your panels and patterns. We go through the three versions with you, show Richpeace's videos of the machine at work and quote in AED. The Triple Combination Basic is built to order, so ask us whether one can be seen running.
