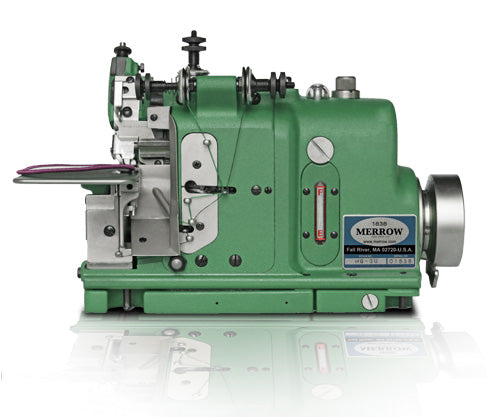

A two thread machine that lays a flat edge on emblems and patches.
The MG-2U finishes the edge of an emblem flat, rather than the raised, high coverage edge produced by the MG-3U. Merrow positions it as a faster and more refined alternative to using an embroidery machine to sew flat edges on patches and emblems.
Merrow states that the machine operates under 90 dBA while running at 5500 RPM, that it uses lightweight moving parts and needle bearings machined to high tolerances so it starts and stops quickly between pieces, and that it carries a ten year warranty. Contact us for the current warranty terms on this model.
Specification published by Merrow
Model
Merrow MG-2U
Operating speed
5500 RPM
Stitch range
20 to 40 SPI
Federal stitch type
505
Number of threads
2
Standard needle
Merrow 4SDT
Needle range
Merrow 3SDT to 5SDT
Motor required
Merrow M12, 1/2 HP, 3450 RPM
Merrow publishes two different stitch widths for this machine on the same page, so we have left that figure out rather than choose one. Ask us and we will confirm it with Merrow for your application.
Al Borj Machinery in Sharjah supplies Merrow machines with installation, operator training and annual maintenance across the UAE, Saudi Arabia and the wider GCC. Send us a sample patch and we will quote this machine set up for your edge.
