JukiLBH-1790AN Computer-Controlled Industrial Buttonhole Machine

Also listed as LBH-1790, LBH 1790, LBH1790, LBH 1790AN, LBH1790AN and LBH-1790ANS

A computer-controlled lockstitch buttonhole machine for shirt, uniform and trouser factories. It sews, cuts and trims each buttonhole in one cycle, and every setting is stored on the panel, so the same buttonhole comes out on every shift.

Built for Garment factoriesUniform factoriesMilitary and police uniforms

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki LBH-1790AN computer-controlled buttonholing machine with its operation panel on the table top
  • 4,200spmMax speed
  • 41mmMax buttonhole
  • 99patternsIn memory
  • 17mmMax clamp lift
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The LBH-1790AN up close

5 photos · tap to enlarge

The Juki LBH-1790AN in 30 seconds

What it is

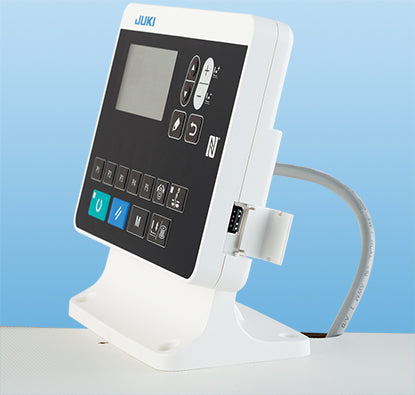

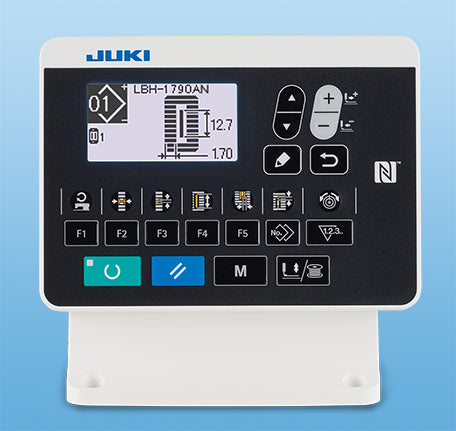

A single-needle lockstitch buttonhole machine with a direct-drive servo motor, stepping motors for the feed, needle swing and knife, Juki's electronic active tension, and an operation panel with USB and NFC.

Who it's for

Shirt, uniform, workwear and trouser factories that sew buttonholes in volume, in the UAE, Saudi Arabia and the rest of the GCC, and in Ghana, Kenya and Ethiopia.

Why this model

Choose it over a mechanical buttonholer such as the Juki LBH-781 when buttonhole sizes change through the day. The knife drops as many times as each size needs, so there is no knife change, and every setting comes back from the panel.

Buttonholing on a factory line with the LBH-1790AN

One buttonholer usually serves a whole line of sewing machines. We work out how many your output needs and supply them with the rest of the line.

  1. 01

    Factory assessment

    We look at what you make, your daily output and the buttonholes on each garment, then work out how many buttonholers the line needs.

  2. 02

    Quote by the line

    Machines, tables and stands, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts and annual maintenance contracts for every machine on the floor.

What the LBH-1790AN does on a factory floor

Juki LBH-1790AN work clamp raised by the stepping-motor auto-lifter above the needle plate

Auto-lifter

The work clamp lifts up to 17 mm

Juki drives the work clamp with a stepping motor. The lift is 14 mm as standard and 17 mm with the reverse-rotation needle-up function. The operator can set an intermediate stop on one pedal, or work with two pedals.

On the factory floorThe work clamp lifts up to 17 mm and can stop halfway, so the operator lines up thick plackets and cuffs under it before sewing.

Juki LBH-1790AN head with the face plate removed, showing the active tension solenoid and needle mechanism

Active tension

Thread tension is set on the panel, not by hand

Juki's electronic tension control sets the needle thread tension separately for the parallel sides and the bartacks of the buttonhole, and for the basting stitch, and stores it with each pattern. Juki states this also helps prevent thread breakage.

On the factory floorNeedle thread tension is stored with each pattern, so a change of fabric means choosing a pattern on the panel, not a mechanic turning tension discs.

Juki LBH-1790AN with the bed cover open, showing the green hook oil tank and the stepping motors

Dry head

Oil only at the hook, so no stains on white shirting

Juki's dry-head design needs no lubrication except at the hook, which takes a small amount of clean oil from a shatter-proof tank. With the optional non-lubricated hook the machine runs fully dry, at up to 3,300 stitches a minute.

On the factory floorOnly the hook takes a little clean oil, from a shatter-proof tank, so oil stays away from the work and white shirts come off the machine clean.

  • Multiple knife-dropping

    The knife drops as many times as the buttonhole length needs, up to 41 mm, so one knife covers every size. Juki offers 70 mm and 120 mm knife mechanisms as options.

  • Cycle and continuous sewing

    Cycle sewing stores 20 programs of up to 30 patterns each. Continuous sewing runs different patterns in one clamping, with optional parts.

  • USB and NFC

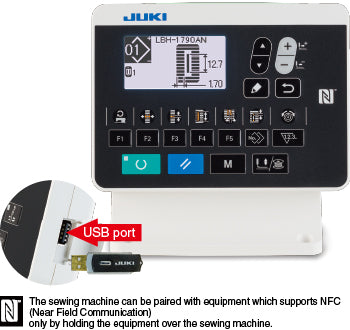

    Settings move between machines on a USB drive, or by NFC to an Android tablet running the JUKI Smart App.

Also built in: an LED light under the arm, an auxiliary table, a basting stitch of up to nine rounds for knits, purl or whip stitching, and single or double stitching with different widths per round.

See the LBH-1790AN sew

Juki LBH-1790AN specifications

Sewing

Max sewing speed4,200 stitches/min (normal 3,600)
With non-lubricated hook3,300 stitches/min
Buttonhole lengthUp to 41 mm (70 mm and 120 mm optional)
Cloth cutting knife6.4-31.8 mm (1/4 to 1-1/4 in)
Bartacking widthUp to 5 mm (10 mm with a special part)
NeedleDP×5 #11J (#11J-#14J)
Needle bar stroke34.6 mm

Drive and control

Machine head driveCompact AC servo motor, direct drive
Feed, needle swing, knifeStepping motors, intermittent feed
Needle thread tensionActive tension (electronic)
Work clamp lift14 mm (17 mm with reverse-rotation needle-up)
Patterns31 standard, up to 99 stored
DataUSB port, NFC with the JUKI Smart App

Build

VersionsLBH-1790ANS standard, LBH-1790ANB short thread, LBH-1795AN 120 mm, LBH-1796AN 220 mm
HookDP type full-rotary; non-lubricated hook optional
LubricationHook only, minute quantity
PowerSingle-phase 220-240 V or 3-phase 200-240 V, 250 VA
WeightHead with motor 55 kg, control box 6 kg

Figures from Juki's LBH-1790AN Series catalogue (December 2021 edition) and Juki America's LBH-1790AN Series product page.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki LBH-1790ANFull specifications from Juki, PDF Download

How the LBH-1790AN compares

Feature
Jack JK-T1790G computerised buttonhole machine
Jack JK-1790
Juki LBH-781 lockstitch buttonholing machine
Juki LBH-781
Jack JK-T781G electronic lockstitch buttonhole machine
Jack JK-T781G Electronic Buttonhole Machine
This machine
Juki LBH-1790AN
Juki LBH-1790AN
Best forShirt, uniform and polo lines, woven or knitStraight buttonholes on shirts and blouses, mechanical set-upStraight buttonholes on shirts and workwear, fixed sizesShirt, uniform and knit lines with frequent size changes
Stitch1-needle lockstitch buttonhole1-needle lockstitch buttonhole1-needle lockstitch buttonhole1-needle lockstitch buttonhole
Max speed4,200 spm3,600 spm3,600 spm4,200 spm
Size rangeButtonholes 25 × 4 to 120 × 5 mmKnife 6.4-19.1 mm (1/4 to 3/4 in)Buttonholes 22 × 4 to 40 × 5 mmButtonholes up to 41 mm, knife 6.4-31.8 mm
PatternsShapes set and stored on a touch screen54-345 stitches, set by gearsStraight buttonholes, set on a dot-matrix panel31 built in, 99 stored
Drive and feedClosed-loop motors on feed, needle swing and knife300 W motor, belt-shifting decelerationIntegrated servo; auto trimmer and foot liftDirect-drive servo, stepping-motor feed and knife
LinkView JK-1790View LBH-781View JK-T781G Electronic Buttonhole MachineYou are here

Questions about the Juki LBH-1790AN

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the LBH1790 the same machine as the Juki LBH-1790AN?

LBH1790, LBH-1790 and LBH 1790 usually mean the Juki LBH-1790AN, the current model of Juki's computer-controlled buttonholer. The older LBH-1790 and LBH-1790A are its predecessors, and LBH-1790ANS is the full order code of the standard machine.

What is the price of the Juki LBH-1790AN in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the version (standard, short-thread or long clamp), the quantity, the table and stand, and where it is delivered. For a factory we quote the buttonholers together with the rest of the line. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki LBH-1790AN button hole machine in Ghana, Kenya or Ethiopia?

It depends on the version, the quantity, the table, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Is the LBH-1790AN suited to a shirt or uniform factory line?

Yes. Juki rates it at 4,200 stitches a minute (3,600 normal), it trims the needle and bobbin threads automatically and recalls every setting from the panel, so one machine keeps up with a line of shirts or uniform tops. For shirt fronts Juki also makes the LBH-1796AN, which sews three buttonholes in one clamping.

Can you equip a whole line, not just the buttonholer?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch, overlock and interlock to buttonhole, button sewing and bartacking machines, and can visit your factory for an assessment first.

Does it sew buttonholes on knits and polo shirts?

Yes, with knit parts. Juki offers a knit work clamp, work clamp foot, throat plate, knife and hook to convert the LBH-1790AN, and its basting stitch, up to nine rounds, keeps the needle thread tucked into the seam on elastic fabric.

Which LBH-1790AN version should I order?

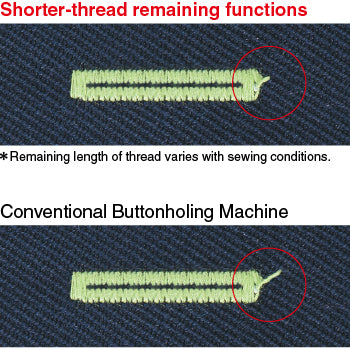

The LBH-1790ANS is the standard machine, for buttonholes up to 41 mm. The LBH-1790ANB trims shorter, leaving bobbin thread ends under 2.5 mm on average by Juki's figures, for buttonholes up to 25 mm. The LBH-1795AN sews up to 120 mm, for example belt holes in car seats, and the LBH-1796AN takes a 220 mm work clamp. Tell us the garment and we confirm the version.

Where can I find the LBH-1790AN manual and error list?

Send us the model and version from your machine's plate on WhatsApp and we send Juki's instruction manual and parts list for that exact version, including the older LBH-1790 and LBH-1790A. If the operation panel shows an error code, send the code with a photo of the panel and our technicians will help. We supply spare parts for the LBH-1790AN.

Do you deliver the LBH-1790AN to Riyadh, Accra, Nairobi and Addis Ababa?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the LBH-1790AN working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring your own fabric and buttonhole sizes to test.

Spare parts

Spare parts for the Juki LBH-1790AN Series

1 parts for this machine are listed with their part numbers, and 66 Juki parts in all. We supply thousands more: send us the part number, the machine model or a photo of the old part.
