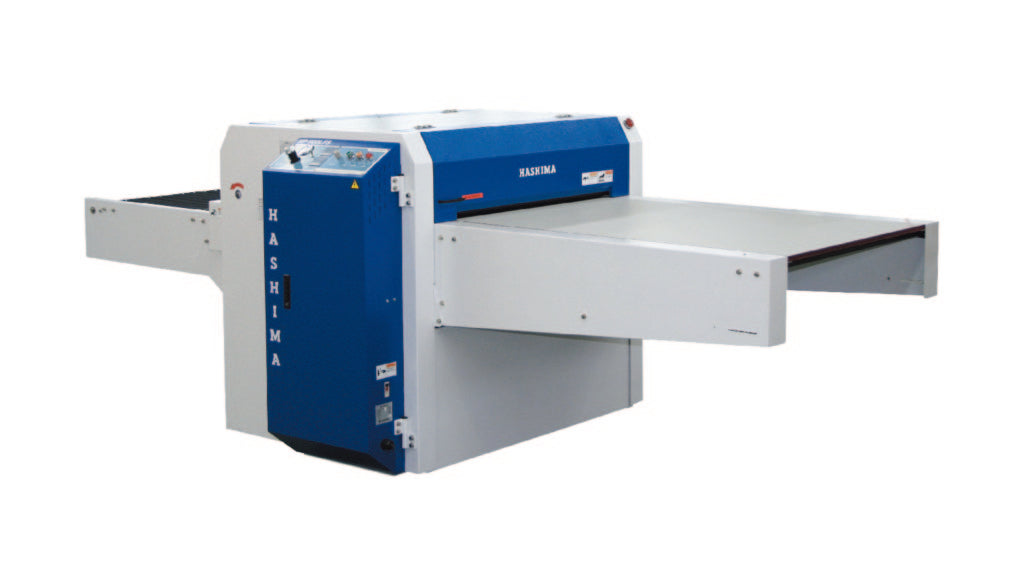

A high-output straight linear fusing press for continuous garment production lines.

The HP-900LFS runs fabric through on a moving belt, so factories can fuse interlining nonstop instead of one piece at a time. Its 900mm belt width suits large panels used in uniform jackets, abayas, and kandooras. Electronic temperature control keeps heat steady within 3°C, which protects fabric quality across long production runs.

Key features

  • Continuous belt-feed design for higher output than flat presses
  • Automatic belt warping prevention keeps the upper and lower belts aligned
  • Electronic thermostat with SSR keeps temperature within ±3°C
  • Silicone rubber-coated pressure rollers separate fully when pressure is off
  • Hard alumite-coated heating plate for durability
  • Adjustable feed-in point for different fabric thicknesses
  • Optional rotary strip-off device and wing tables available

Specifications

Model Hashima HP-900LFS
Type Straight Linear Fusing Press
Voltage 3P 380V
Heater Output 12kW
Motor Output 270W / 295W
Fusing Width 900mm
Max Belt Speed 10.2 m/min
Max Pressure 41N/cm² (4.02 kg/cm²)
Max Temperature 195°C
Heating Time 6-28 seconds
Dimensions 1,200 × 1,490 × 3,300mm
Weight 450kg
