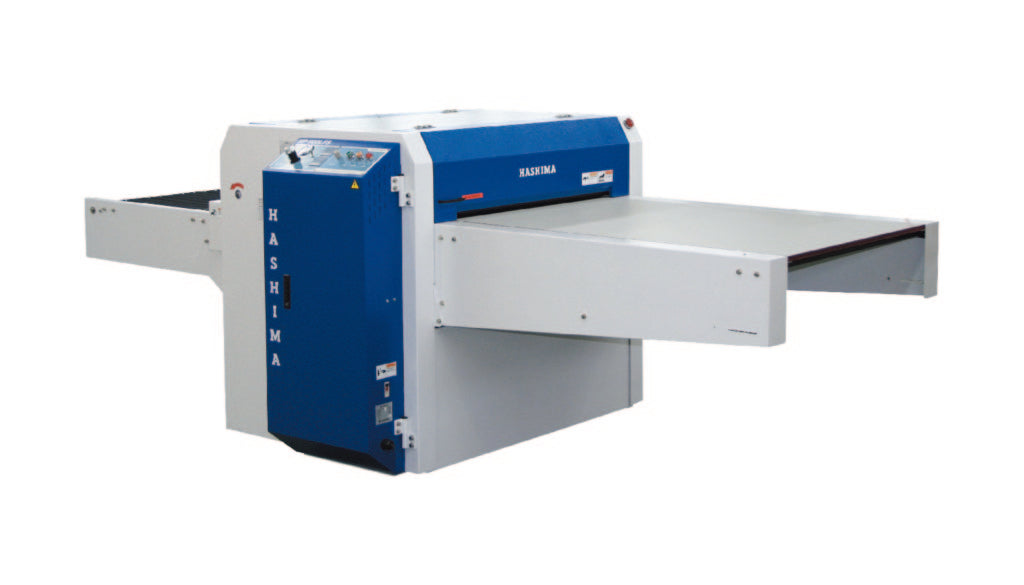

A straight linear fusing press sized for mid-volume garment factories.

The HP-600LFS feeds fabric through on a continuous belt, giving steady fusing results without stopping between pieces. Its 600mm belt width fits collars, cuffs, and mid-size panels common in uniform and workwear production. UAE garment factories choose this size when a full 900mm press is more than the job needs.

Key features

  • Continuous belt-feed design for steady, nonstop fusing
  • Automatic belt warping prevention keeps the upper and lower belts aligned
  • Electronic thermostat with SSR keeps temperature within ±3°C
  • Silicone rubber-coated pressure rollers separate fully when pressure is off
  • Hard alumite-coated heating plate for durability
  • Adjustable feed-in point for different fabric thicknesses
  • Optional rotary strip-off device and wing tables available

Specifications

Model Hashima HP-600LFS
Type Straight Linear Fusing Press
Voltage 3P 380V
Heater Output 8.4kW
Motor Output 250W / 275W
Fusing Width 600mm
Max Belt Speed 10.2 m/min
Max Pressure 62N/cm² (6.04 kg/cm²)
Max Temperature 195°C
Heating Time 6-28 seconds
Dimensions 1,200 × 1,190 × 3,100mm
Weight 380kg
