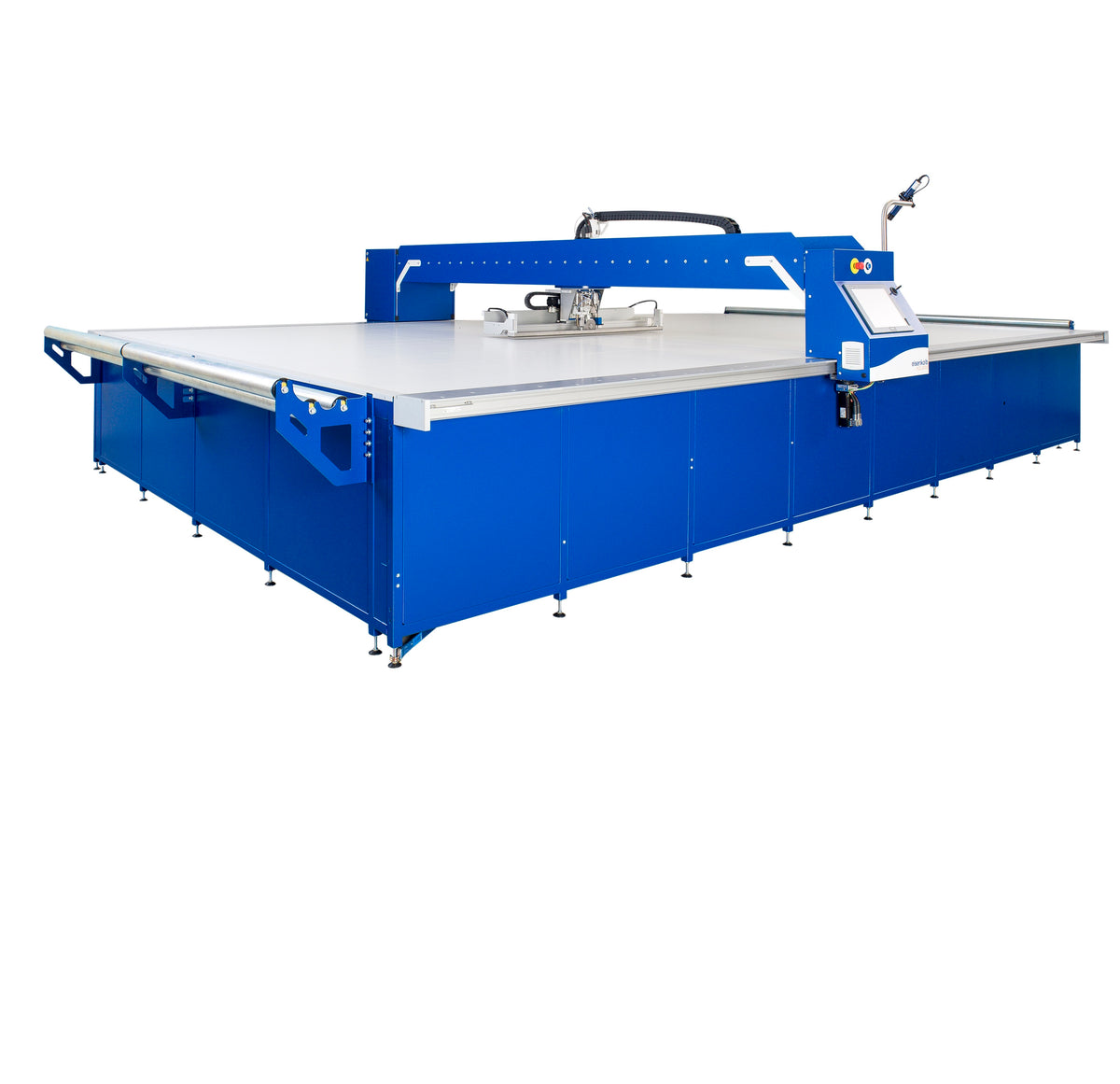

• Eisenkolb PCS-3000 programmable X-Y universal blind cutting table
1 1

Eisenkolb PCS-3000, Programmable X-Y Universal Blind Cutting Table

Eisenkolb PCS-3000, Programmable X-Y Universal Blind Cutting Table

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Download specifications PDF spec sheet

Built for blind makers who cut roman, panel and roller blinds on one table.

The Eisenkolb PCS-3000 is a programmable X-Y cutting table for window coverings. A clamp bar grips the fabric while the head cuts, and Eisenkolb states the clamp bar rotates through 270 degrees, so a panel can be cut across the full surface of the table without being moved. Curtain and blind workrooms in the UAE and the wider GCC use a table of this kind to take hand measuring and hand cutting out of the blind line. Al Borj supplies, installs and services Eisenkolb window covering machinery from Sharjah.

Key features

  • Patented rotating clamp bar that holds the fabric for ultrasonic or knife cutting
  • Cutting and marking width of 3.2 m, with the length built to order in sections of 1.5 m
  • Automatic draw system with pneumatic clamps to unroll and position the fabric
  • Adjustable zero point with a laser pointer for setting up the cutting tool
  • Servo controlled movement
  • Low power alignment laser for squaring panels and patterns
  • Cutting tools offered by Eisenkolb: Rinco 35 kHz ultrasonic cutter, round cutting knife, and an optional Firestar 60 W air cooled laser cutter
  • Options published by Eisenkolb: 180 micron UV ink marker unit, exhaust ventilation with an activated carbon filter, and a barcode interface that reads .txt, .dxf and .xls files

Specification published by Eisenkolb

Model Eisenkolb PCS-3000
Type Programmable X-Y universal blind cutting table
Cutting and marking width 3.2 m
Length Built to order, in sections of 1.5 m
Dimensions 490 cm wide, length built to order
Power supply 380 V, 3 phase, 7500 W, 16 A
Air supply 5 bar, 1 L per cycle
Production capacity Eisenkolb states 15 to 20 Roman blinds per hour on a single cut, and 25 to 30 on a multi cut

Source: Eisenkolb product page for the PCS-3000. Tell us the blind types and panel sizes you make and we will quote the configuration.
