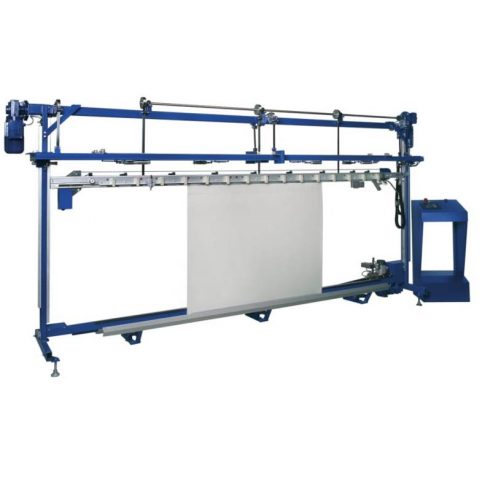

• Eisenkolb AGA-2300DP automatic vertical fabric cutter
  • Eisenkolb AGA-2300 series automatic vertical fabric cutter

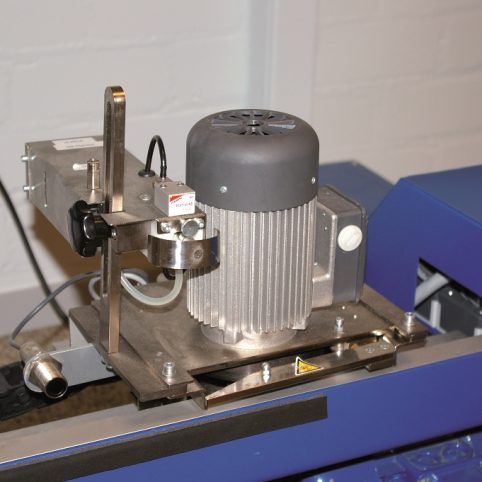

  • Eisenkolb AGA-2300 cutting head detail
1 3

Eisenkolb AGA-2300DP, Automatic Vertical Fabric Cutter

Eisenkolb AGA-2300DP, Automatic Vertical Fabric Cutter

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for cutting curtain panels to exact drop length.

The Eisenkolb AGA-2300DP is an automatic vertical curtain cutting machine. A lifting beam grips the fabric by its lower hem or lead cord and carries it up past a fixed blade, cutting each panel to the same length every time. UAE drapery and interior fit-out workshops use it to replace manual measuring and cutting, so every curtain in an order comes out the same drop, panel after panel. A free-standing touch screen console runs the cutting speed and tension settings.

Key features

  • Universal lifting beam grips fabric by the lower hem or lead cord with spring clamps

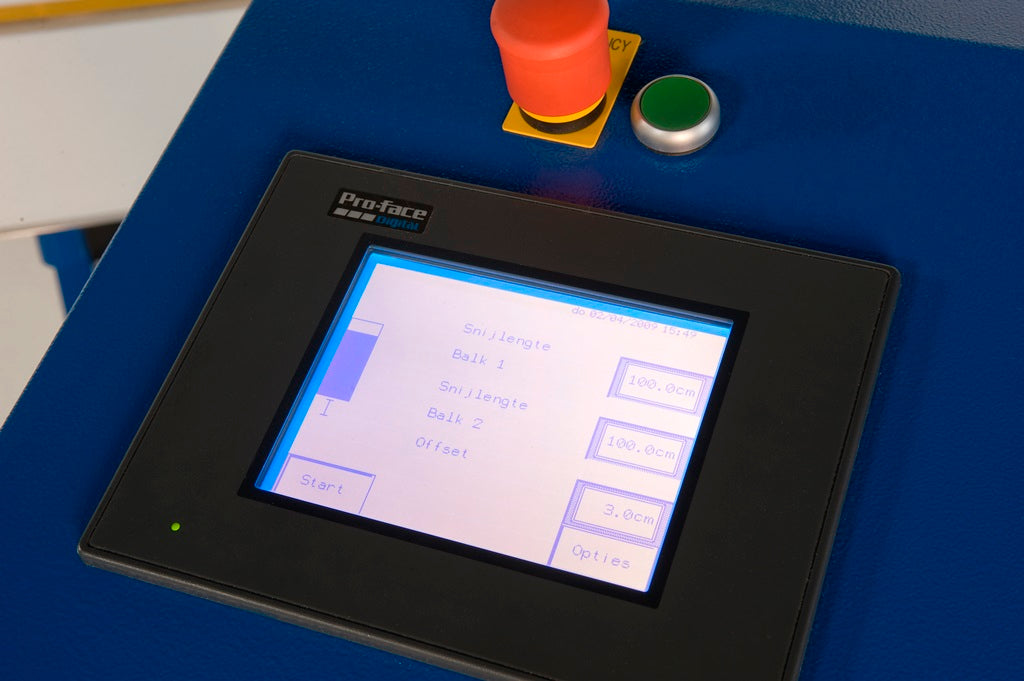

  • Free-standing console with multilingual LCD touch screen
  • Adjustable cutting speed and extra tension function for different fabrics
  • Optional pneumatic clamp lifting beam and UV marking
  • Cuts curtain panels to the same drop length automatically, panel after panel

Specifications

Model Eisenkolb AGA-2300DP
Type Automatic vertical curtain height cutting machine
Max cutting width 1155 cm
Max cutting height 615 cm (545 cm net cutting height)
Power 220V, single phase, 1350W, 16A
Air supply 5 bar, 3 L per cycle
Production capacity Approx. 90 panels per hour (operator-dependent)
Request a quote

Get a price for the Eisenkolb AGA-2300DP, Automatic Vertical Fabric Cutter

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
