Eisenkolb ATS-2400, Automatic Roman Blinds Tunnel Stitching Machine

Eisenkolb ATS-2400, Automatic Roman Blinds Tunnel Stitching Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Download specifications PDF spec sheet

Built for roman blind makers who still stitch tunnels by hand.

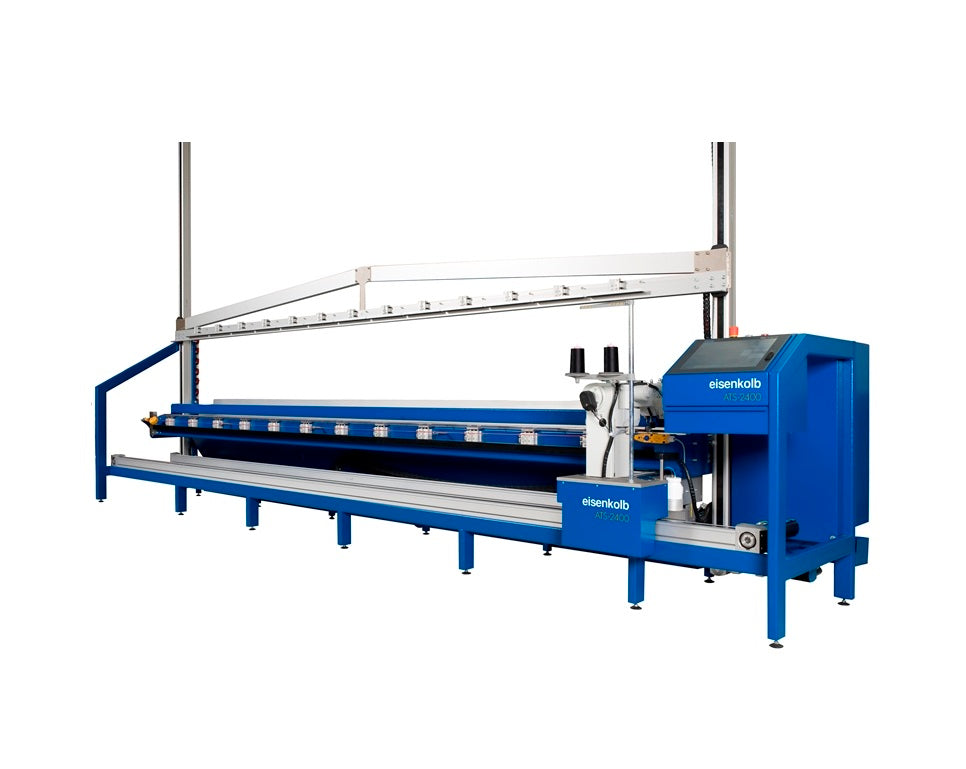

The Eisenkolb ATS-2400 sews the tunnels that carry the rods in a roman blind, and it handles the measuring and positioning itself. The machine is built around a Durkopp Adler single needle post bed sewing head with a reversible top driven roller. Eisenkolb states the effective sewing width is 450 cm, which it presents as wide enough for an extra wide blind or for several blinds stitched at the same time. Al Borj supplies, installs and services Eisenkolb window covering machinery from Sharjah.

Key features

  • Durkopp Adler single needle post bed sewing head with a reversible top driven roller
  • Effective sewing width of 450 cm, for extra wide blinds or several blinds at once
  • Variable tunnel depth from 10 mm to 25 mm
  • Lifting beam with pneumatic clamps to hold the fabric
  • Self supporting frame construction, so the machine can be moved freely
  • Industrial Windows based computer with a 15 inch touch screen and multi language selection
  • Extractable sewing head
  • Thread breakage sensor for the upper thread
  • Remote service connection for technical assistance, fitted as standard

Specification published by Eisenkolb

Model Eisenkolb ATS-2400
Type Automatic Roman blinds tunnel stitching machine
Sewing head Durkopp Adler single needle post bed
Effective sewing width 450 cm
Tunnel depth 10 mm to 25 mm
Machine height 420 cm as standard, can be raised to 620 cm
Dimensions 581 x 140 cm
Power supply 220 V, 1 phase, 3500 W, 16 A
Air supply 7 bar, 3 L per cycle
Production capacity Eisenkolb states 10 blinds per hour

Source: Eisenkolb product page for the ATS-2400. Send us your blind widths and rod spacing and we will quote the machine.
