Juki Catalogue and specifications

Juki LZ-2290C-7 Series catalogue (PDF)

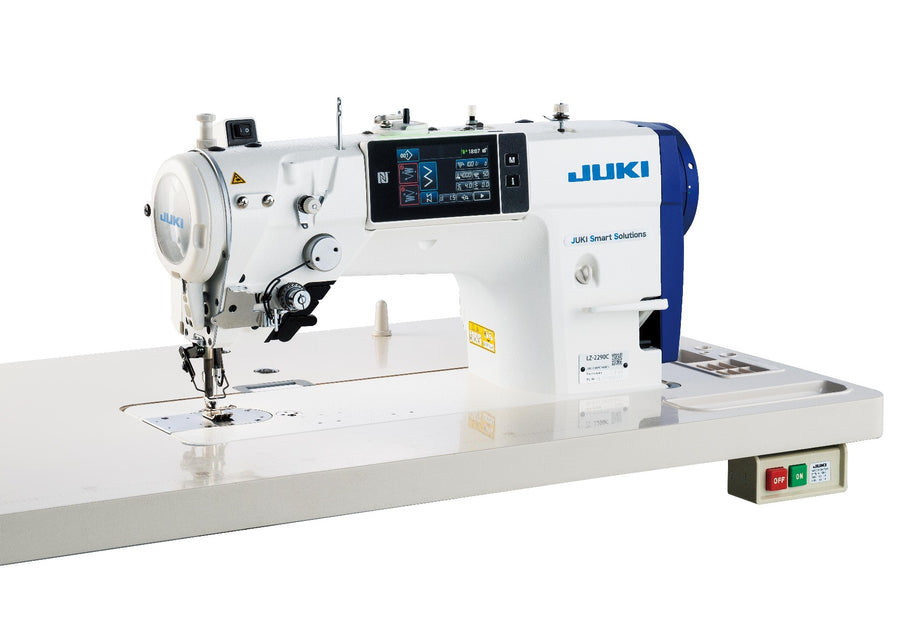

JUKI's catalogue for the LZ-2290C-7 Series, a computer-controlled zigzag machine with 20 built-in patterns and room for 200 of your own. Garment factories use it for topstitching, collar and label work and decorative patterns on jackets, blouses and shirts.

Download the catalogue (PDF, 2.0 MB) Juki LZ-2290C-7 Series: photos and quote

4 pages, JUKI Corporation catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.

Juki LZ-2290C-7 Series catalogue, page 1: front and back cover, the LZ-2290C series, specifications and ordering codes

What the Juki LZ-2290C-7 Series catalogue covers

Four pages in English: the series cover with specifications and ordering codes, the digital zigzag mechanism, the digital functions and the JUKI Smart App, and the options with the list of major gauges.

Patterns are stored in the machine, so a pattern set up once repeats on every garment in the order. Al Borj supplies, installs and services the LZ-2290C-7 from Sharjah and Accra.

Machine type: Computer-controlled digital zigzag machine.

Max sewing speed: 5,000 sti/min (factory-set at 4,000 sti/min)
Zigzag width: Standard 8 mm, expandable to 10 mm with gauge change
Max feed (stitch length): 5.0 mm (factory-set at 2.5 mm)
Stitch patterns: 20 built-in patterns; up to 200 custom patterns (max 500 stitches each)
Motor: Compact AC servo motor, 400 W, direct-drive
