Juki Catalogue and specifications

Juki DDL-7000A Series catalogue (PDF)

Covers DDL-7000AS-7 and DDL-7000AH-7

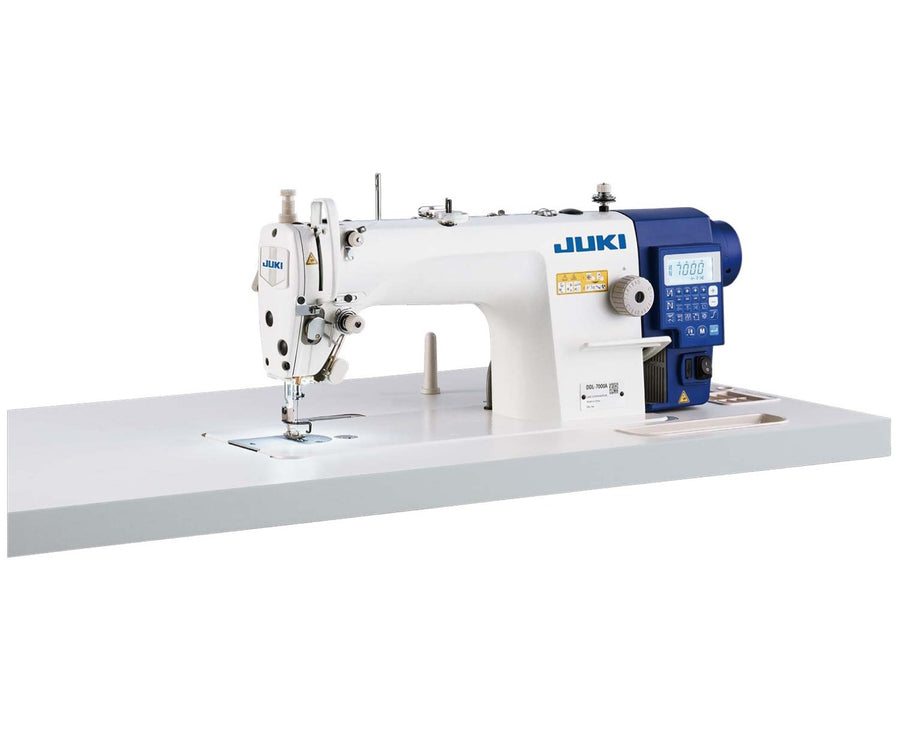

JUKI's catalogue for the DDL-7000A Series, a direct-drive single-needle lockstitch machine with automatic thread trimmer and LED work light. Garment and uniform factories use the AS build on shirts and light to medium cloth and the AH build on denim and workwear.

Download the catalogue (PDF, 677 KB) Juki DDL-7000A Series: photos and quote

2 pages, JUKI Corporation catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.

Juki DDL-7000A Series catalogue, page 1: front page, the DDL-7000A direct-drive lockstitch machine with automatic thread trimmer

What the Juki DDL-7000A Series catalogue covers

Two pages in English: the front page with the machine, then the features, the specification table and JUKI's ordering codes for the light-to-medium DDL-7000AS-7 and the heavy-weight DDL-7000AH-7.

The servomotor drives the head directly and draws 210 VA, with no belt to adjust. Al Borj supplies, installs and services the DDL-7000A from Sharjah and Accra.

Machine type: Direct-drive single-needle lockstitch machine.

Max sewing speed
5,000 sti/min (DDL-7000AS-7); 4,000 sti/min (DDL-7000AH-7)
Max stitch length
5 mm
Needle system
DB x 1, sizes #14-#18 (AS); DP x 5, sizes #20-#23 (AH)
Presser foot lift
By hand 5.5 mm, by knee 13 mm
Power consumption
210 VA

Figures from the Juki catalogue.

Pages from the Juki DDL-7000A Series catalogue

Juki DDL-7000A Series catalogue, page 1: front page, the DDL-7000A direct-drive lockstitch machine with automatic thread trimmer
Page 1
Juki DDL-7000A Series catalogue, page 2: features, specifications and ordering codes
Page 2

Download the Juki DDL-7000A Series catalogue (PDF, 677 KB)

The machine
