JukiLZ-2290C-7Series Digital Zigzag Sewing System

Also listed as LZ2290C, LZ-2290C, LZ-2290CS-7, LZ-2290CF-7 and LZ 2290C

A computer-controlled zigzag machine with a colour touch panel and a memory for 200 custom stitch patterns. Factories set the stitch on the panel, so changing from one garment process to the next takes a few touches.

Built for Garment factoriesUniform factories

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

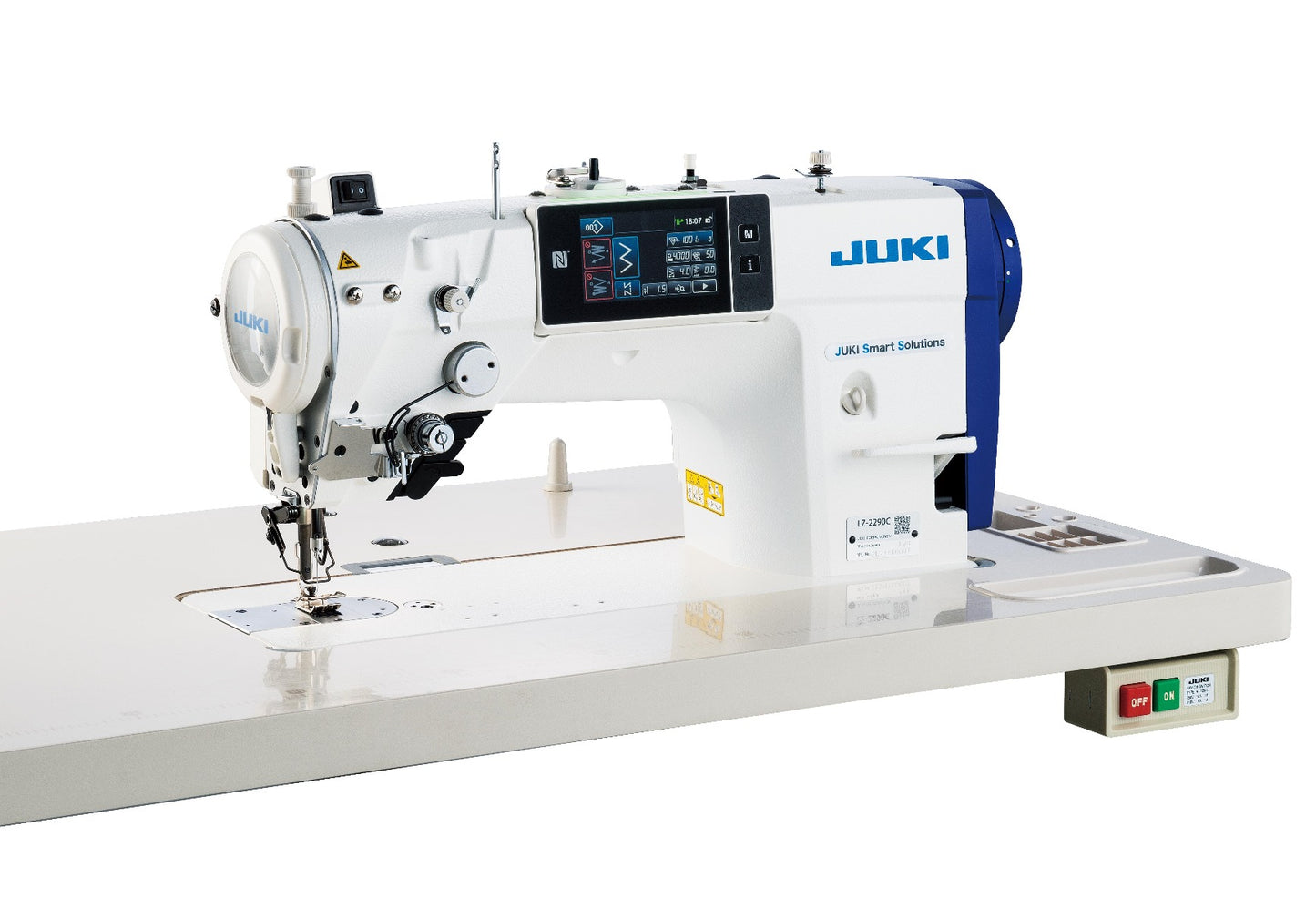

Juki LZ-2290C-7 digital zigzag machine with colour touch panel on its table
  • 5,000spmMax speed
  • 200Custom patterns stored
  • 8-10mmZigzag width
  • 400WDirect-drive servomotor
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The LZ-2290C-7 Series up close

4 photos · tap to enlarge

The Juki LZ-2290C-7 Series in 30 seconds

What it is

A semi-dry-head digital zigzag machine with a colour touch panel, 20 built-in stitch patterns, a memory for 200 custom patterns, and an automatic thread trimmer on the -7 models.

Who it's for

Garment and uniform factories in the UAE, the GCC and Africa doing topstitching, collar and label work and pattern stitching on jackets, shirts and blouses.

Why this model

Pick it over a mechanical zigzag when one line changes stitch patterns often. Patterns, feed timing and tension are set on the panel and stored, so they are not reset by hand.

Setting up a factory line with the LZ-2290C-7 Series

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the LZ-2290C-7 Series does on a factory floor

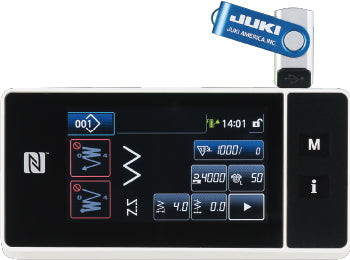

Juki LZ-2290C-7 colour touch panel with NFC mark showing the feed menu

Colour touch panel with NFC

Set the stitch on a touch panel

The panel holds 11 stitch types in 20 patterns and a memory for 200 custom patterns of up to 500 stitches each. NFC pairs the machine with the JUKI Smart APP.

On the factory floorBecause patterns and feed timing are set on the panel, changing the stitch for the next garment process takes a few touches and no mechanical adjustment.

Juki LZ-2290C-7 Series, Computer-Controlled Digital Zigzag Machine

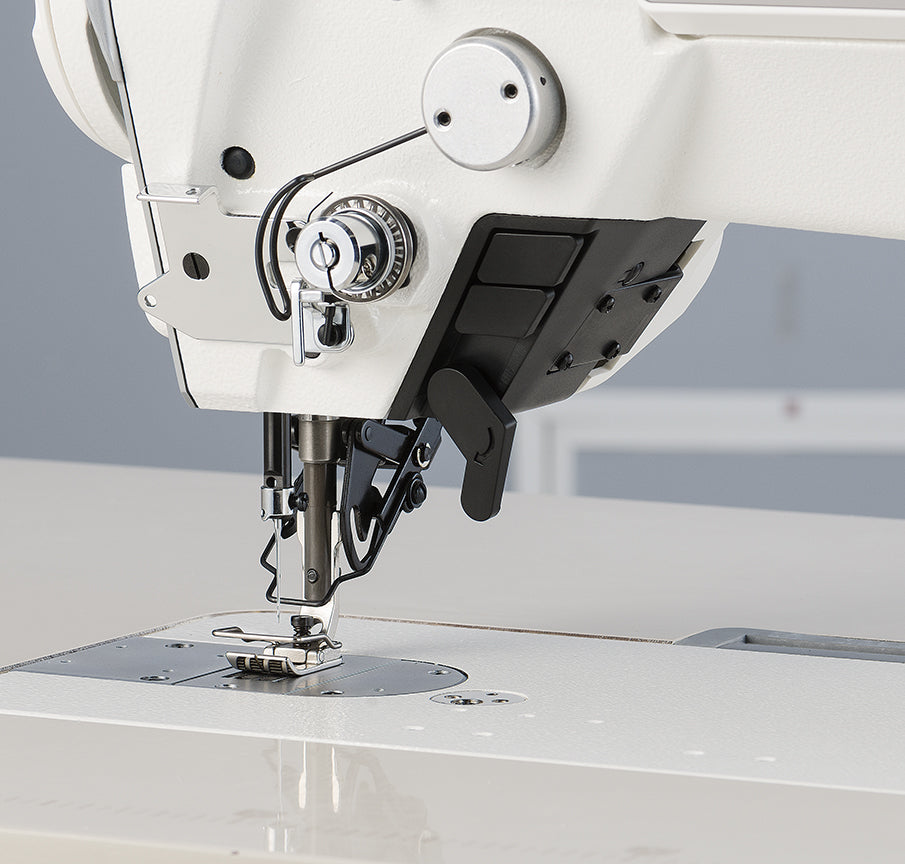

Multi-layered portion detection

Separate settings for thick joins and flat panels

The machine detects the multi-layered parts of a garment and uses different sewing conditions there and on the flat parts.

On the factory floorBecause the conditions change at thick joins, Juki states that stitch gathering and loose stitches there are prevented.

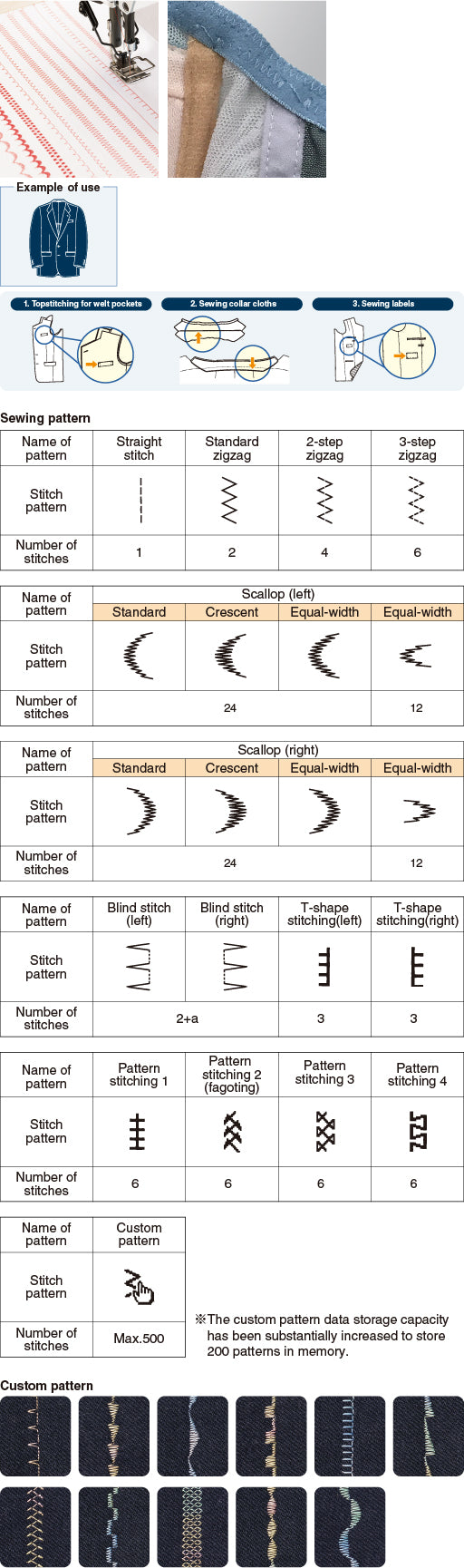

Numbered stitch patterns sewn on denim by the Juki LZ-2290C-7

Built-in stitch patterns

Straight, zigzag, scallop, blind and T-shape stitches

The 20 patterns include straight, standard, 2-step and 3-step zigzag, scallop, blind stitch, T-shape stitching and fagoting. Juki lists welt pocket topstitching, collar cloths and labels for men's garments.

On the factory floorBecause these stitches are built in, one machine covers topstitching, label and pattern jobs on a jacket or blouse line.

  • Rotary active tension

    The machine corrects thread tension as the bobbin thread runs low and with sewing speed, so seam quality holds to the end of the bobbin.

  • Semi-dry head

    The frame is grease-lubricated and only the hook gets oil, so there is less oil on the sewn product. A fan cools the hook unit.

  • LED light and triple hand switch

    The LED shade changes between white, neutral and incandescent, and the hand switch holds touch-back, mirror and multi-layer correction.

Juki LZ-2290C-7 Series specifications

Sewing

Max sewing speed5,000 sti/min, set at 4,000 at shipment
Zigzag widthStandard 8 mm, up to 10 mm by changing the gauge
Max feed5.0 mm, set at 2.5 mm at shipment
NeedleORGAN DP x 5 (#10) or SCHMETZ 438 (Nm75)
Presser foot liftHand 5.5 mm, knee 10 mm, auto-lifter 10 mm

Patterns and control

Standard patterns11 types, 20 patterns
Custom pattern memory200 patterns, 500 stitches each
Continuous sewing patternUp to 20 patterns, 20 steps, 2,000 stitches per step
Operation panelColour touch panel with NFC
Machine head driveCompact AC servomotor 400 W, direct drive
LubricationSemi-dry: frame grease, hook oil from a tank

Build

Needle to machine arm300 mm
Bed size517 mm x 178 mm
Product weight49.0 kg with thread trimmer, 48.4 kg without
ModelsLZ-2290CS-7, LZ-2290CF-7 (trimmer); LZ-2290CS (no trimmer)

Figures from Juki's LZ-2290C Series catalogue (March 2023).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki LZ-2290C-7 SeriesFull specifications from Juki, PDF Download

Questions about the Juki LZ-2290C-7 Series

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the LZ-2290C-7 the same as the LZ-2290CS-7 and LZ-2290CF-7?

They are one Juki series. The -7 models have the automatic thread trimmer. S is the digital type and F the full digital type, where the feed is motor-controlled.

How many custom patterns can the LZ-2290C-7 store?

200 custom patterns of up to 500 stitches each. Continuous sewing chains up to 20 patterns in 20 steps.

Does the LZ-2290C-7 have an automatic thread trimmer?

The -7 models do, the LZ-2290CS-7 and LZ-2290CF-7. Juki also lists the LZ-2290CS without a trimmer.

What is the price of the Juki LZ-2290C-7 Series in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Juki LZ-2290C-7 Series and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Juki LZ-2290C-7 Series before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.

What warranty comes with the Juki LZ-2290C-7 Series?

A 1-year warranty, handled by our own service team, who also install the machine.
