Juki Catalogue and specifications

Juki LZ-271 catalogue (PDF)

JUKI's catalogue for the LZ-271, a single-needle zigzag machine for embroidering. It stitches zigzag patterns, names, labels and decorative trims on fabric from lawn to heavy cloth, and with an attachment it does cord and compass embroidery.

Download the catalogue (PDF, 458 KB) Juki LZ-271: photos and quote

2 pages, JUKI Corporation catalogue, Al Borj edition, 2026. Free to download, with our contact details on the first and last page. For the AED price, delivery and installation, ask us on WhatsApp; we reply within one working day.

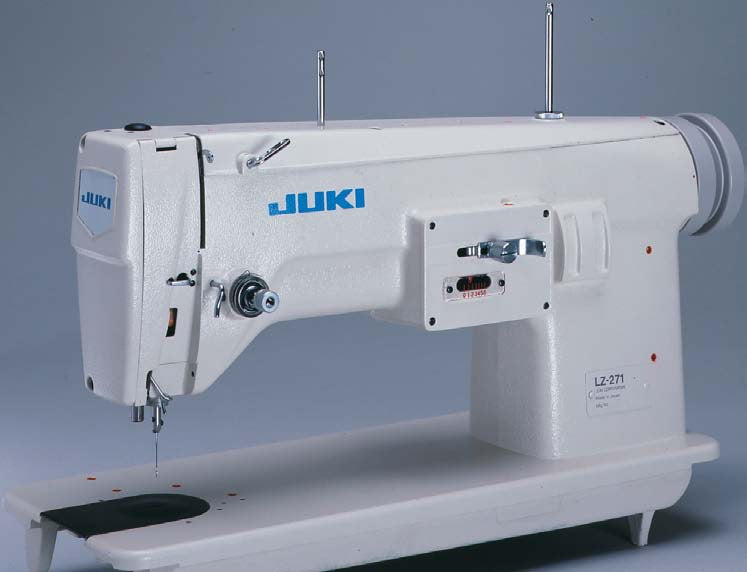

Juki LZ-271 catalogue, page 1: front page, the LZ-271 1-needle zigzag embroidering machine

What the Juki LZ-271 catalogue covers

Two pages in English: the front page with the LZ-271, then the features, the specification table and the attachments. Zigzag width runs from 0 to 12 mm, with a DB-type hook made for embroidering.

Garment workshops use it for decorative work that does not need a multi-needle embroidery machine. Al Borj supplies, installs and services the LZ-271 from Sharjah and Accra.

Machine type: Single-needle zigzag embroidering machine.

Max speed: 2,000 sti/min (zigzag width up to 10 mm); 1,700 sti/min (zigzag width up to 12 mm)
Zigzag width: 0-12 mm
Needle system: DB x 1, size #9 to #18 (standard #11)
Needle bar stroke: 33.4 mm
Hook: DB-type hook for embroidering
