TitanDK2500 Carpet Overedging Machine

Also listed as DK2500, DK 2500, Titan 2500, 2500 and Titan 2500/3

An industrial overedging machine for carpets and rugs. It wraps and locks thread around the raw edge, so the carpet edge does not fray.

Built for Automotive interior makersHome textile and furniture makers

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

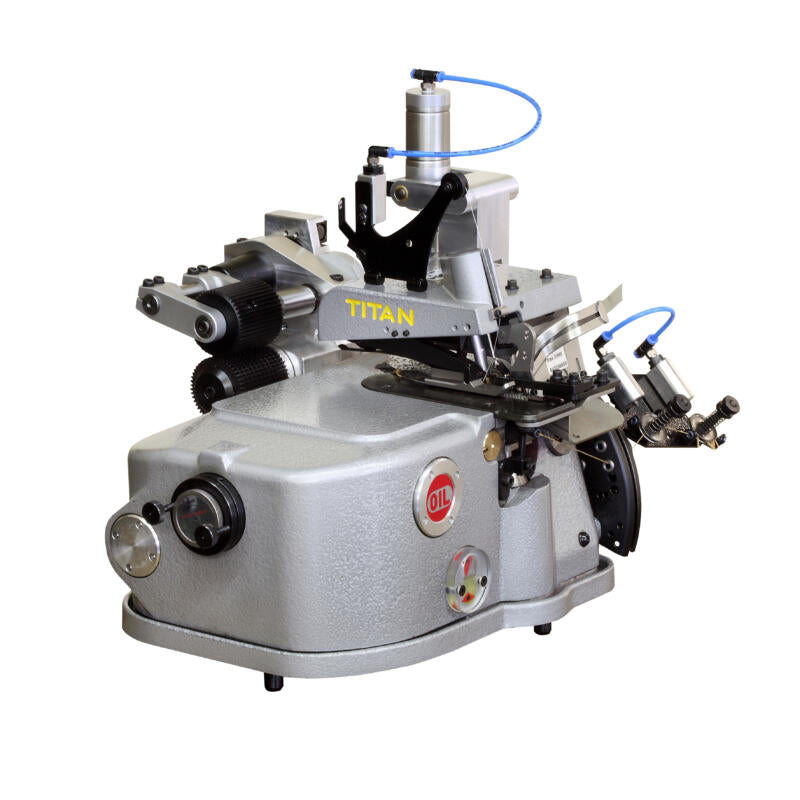

Titan DK 2500 carpet overedging machine
  • 2,800spmMax speed
  • 10 to 12mmStitch width
  • 1 to 10st/cmStitch density
  • 1needle2 or 3 threads
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The DK 2500 up close

3 photos · tap to enlarge

The Titan DK 2500 in 30 seconds

What it is

An industrial overedging (whipping) machine for carpet edges, in 2-thread and 3-thread versions, left-hand and right-hand.

Who it's for

Carpet and rug makers, and automotive and marine trim shops in the UAE, the GCC and Africa that edge car, boat and plane carpets, prayer mats and tufted rugs. It is not for garment fabric.

Why this model

Choose it to finish woven, tufted or needle-punched carpet with any backing. Titan states a left-hand and a right-hand machine can overedge both sides of a carpet at once in an automatic line, which more than doubles output.

Setting up a factory line with the DK 2500

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the DK 2500 does on a factory floor

Titan DK 2500 Series, Carpet Overedging Machine

Overedging

Thread locked over the raw edge

The machine wraps and locks thread around the raw carpet edge. Titan states it handles light or heavy materials with most types of thread.

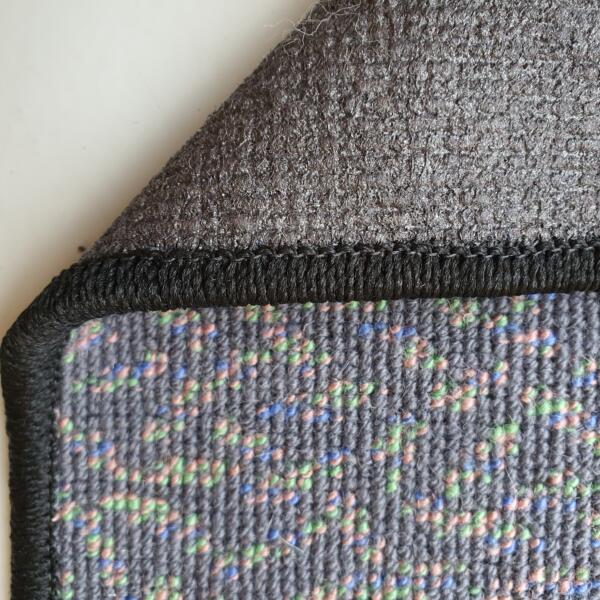

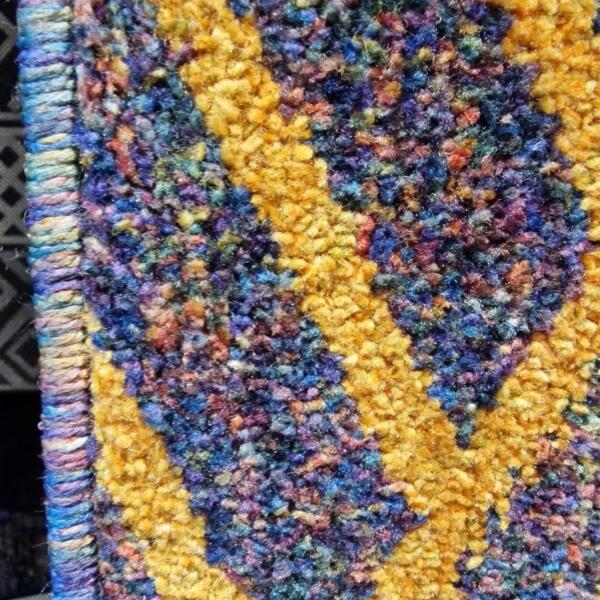

On the factory floorThe wrapped edge holds the carpet pile and backing together, so the cut edge does not fray in use.

Titan DK 2500 Series, Carpet Overedging Machine

Configurations

Matched to the material and the edge shape

The series includes AHC for curved edges such as car, boat and plane carpets, /3 for a third thread, and -C with a built-in cutting knife that trims the edge as it overedges.

On the factory floorBecause the configuration is chosen for the edge shape and the material, the same series covers straight rugs, curved vehicle carpets and trimmed edges.

Titan DK 2500 Series, Carpet Overedging Machine

Left and right versions

Both sides of a carpet at once

Left-hand and right-hand machines are designed for fully automatic lines where both sides of the carpet are overedged at the same time.

On the factory floorTwo machines work on opposite edges together, so a carpet passes through once instead of twice.

  • Pneumatic presser foot

    A pneumatic presser foot and thread tension release help the machine handle thick material.

  • External density adjuster

    An external adjuster changes the stitch density, from 1 to 10 stitches per cm.

Titan DK 2500 specifications

Machine

ModelTitan DK 2500 series (AHC, AHC/3, /3, -C configurations)
Machine typeIndustrial overedging / whipping machine for carpets and rugs
MakerTitan (Vandewiele Group, Belgium)
ApplicationWoven, tufted and needle-punched carpets and rugs; not for garment fabric

Stitching

Stitch speedUp to 2,800 stitches per minute
Stitch width10 to 12 mm (standard)
Stitch density1 to 10 stitches per cm
Needles1
Threads2 (standard); 3 on /3 and AHC/3
Fabric feedBottom

Figures from the Titan 2500 catalogue sheet and the maker's range.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Titan DK 2500Full specifications from Titan, PDF Download

Questions about the Titan DK 2500

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the DK 2500 the same as the Titan 2500?

Yes. Titan 2500 is the name on the maker's sheet and DK 2500 the series name. The 2500/3 is the three-thread version.

Which configuration do I need?

AHC is made for curved edges such as car, boat and plane carpets, /3 adds a third thread, and -C adds a cutting knife that trims the edge as it overedges. Tell us the material and the edge shape and we will confirm.

Can it overedge garment fabric?

No. It is made for woven, tufted and needle-punched carpets and rugs, light or heavy, with any type of backing.

What is the price of the Titan DK 2500 in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Titan DK 2500 and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Titan DK 2500 before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
