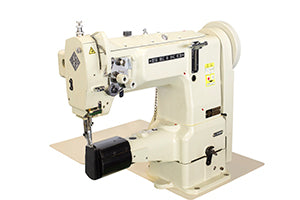

Seiko LCWN-8BL, Cylinder Bed Walking Foot Machine

Seiko LCWN-8BL, Cylinder Bed Walking Foot Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for curved and tubular parts a flat bed machine can't reach.

The Seiko LCWN-8BL is a cylinder bed walking foot lockstitch machine. Its narrow arm sews inside tubular and curved work, which suits UAE bag, boot and leather goods makers. Al Borj supplies the standard LCWN-8BL and the LCWN-8BLV-CB version, which adds a synchronized binder and a smaller cylinder edge for tighter, curved binding work.

Key features

  • Cylinder bed (77 mm) reaches inside tubular and curved parts
  • Compound feed and walking foot move thick layers evenly
  • Large vertical axis hook (2.0 times) cuts down bobbin-change stops
  • Optional synchronized binder (V-CB version) binds edges while it sews
  • Reverse stitch for secure seam starts and ends
  • Semi-automatic lubrication

Specifications

Model Seiko LCWN-8BL (also supplied as LCWN-8BLV-CB with synchronized binder)
Bed type Cylinder bed, 77 mm
Maximum sewing speed 1,800 s.p.m.
Maximum stitch length 6.2 mm
Needle system DPx17 (#25) or 135x17 (#200)
Hook type Large vertical axis hook (2.0 times)
Walking foot movement 3.2-6 mm (standard 3.2 mm)
Presser foot clearance 16 mm (knee), 8.5 mm (hand)
Needle bar stroke 35.4 mm
Lubrication Semi-automatic
Request a quote

Get a price for the Seiko LCWN-8BL, Cylinder Bed Walking Foot Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
