RichpeaceTripleCombinationRotary Perforation, Embroidery and 360° Rotary Sewing Machine
Also listed as RPCE-L-P+E+S RH360, Richpeace rotating head 3 in 1 and Perforation + Embroidery + Sewing (Rotating Head)
Perforates, embroiders and sews leather panels in one clamping, with a rotating stitching head that turns through 360° to follow the seam. Made for car seat and interior plants whose stitch lines run in curves, circles and diamonds.
Built for Automotive interiorsCar seat upholsteryFurniture upholstery
Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.
- 360°Rotary sewing head
- 1,200stitches/minMax sewing speed
- 0.8-6mmRound holes, 6 sizes a head
- 1200 × 800mmLargest working area
- 5,000+factories supplied by Al Borj in the Middle East and Africa

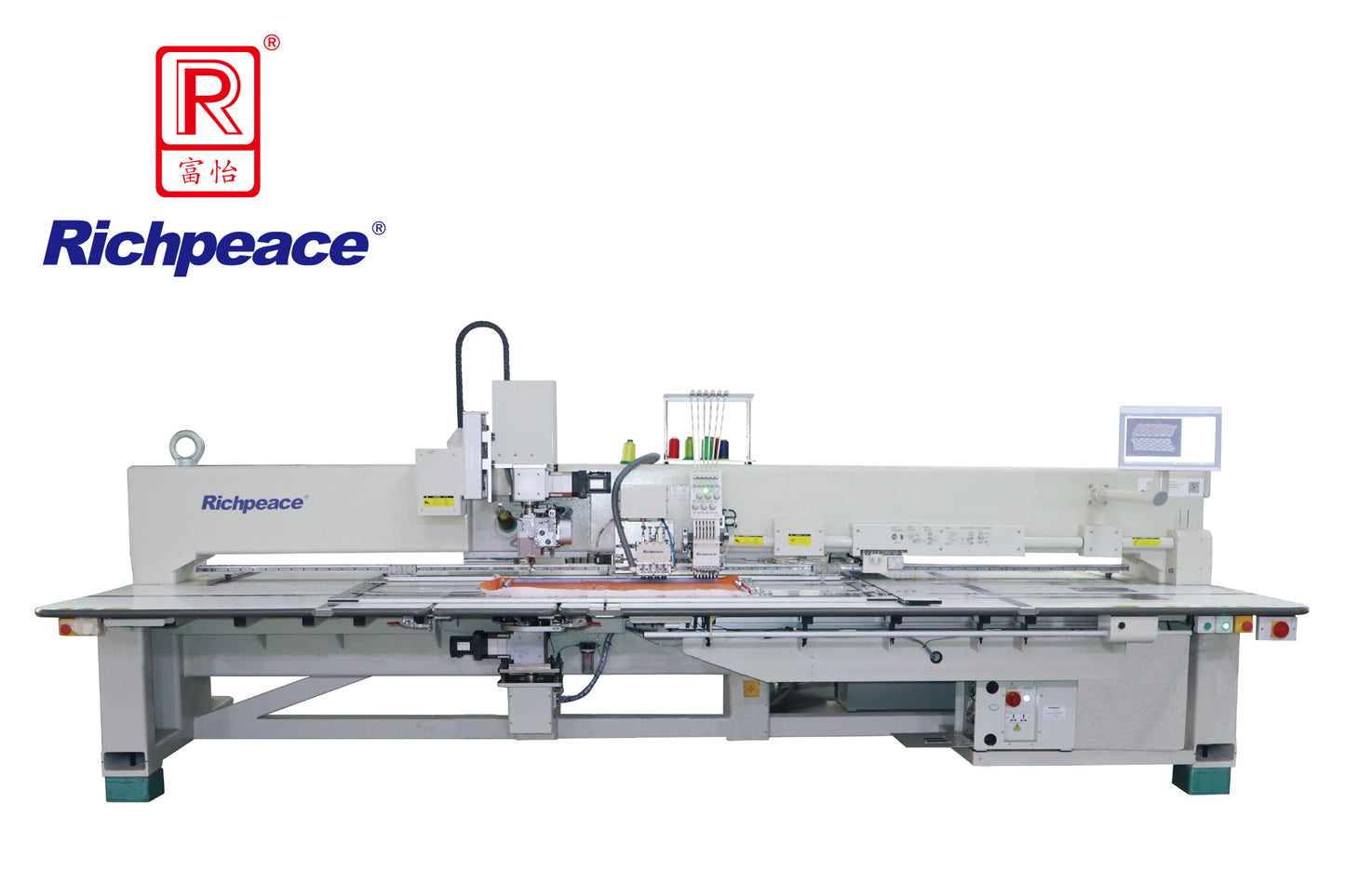

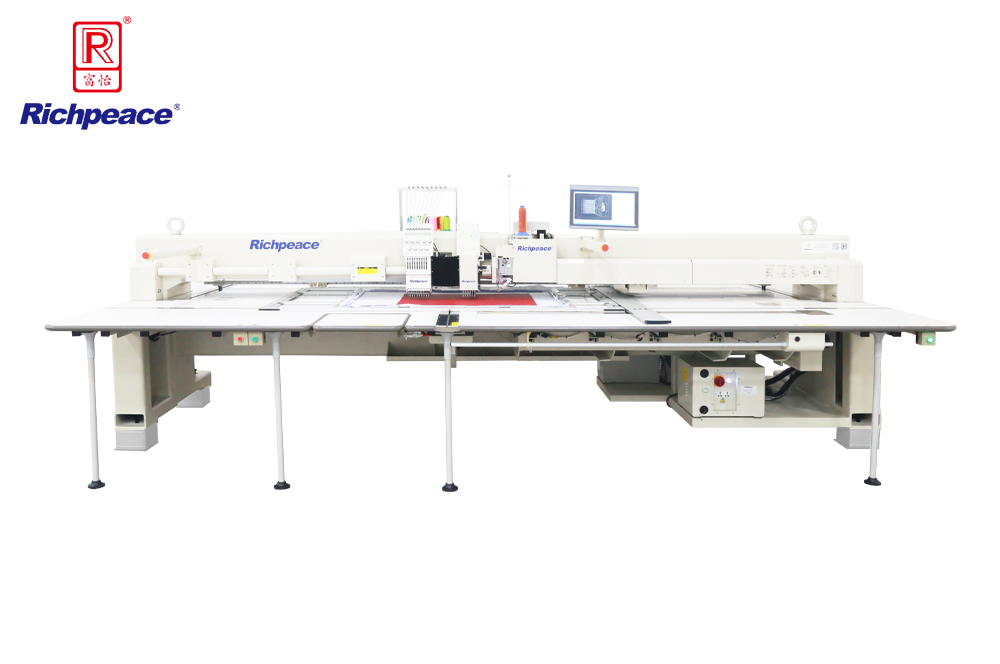

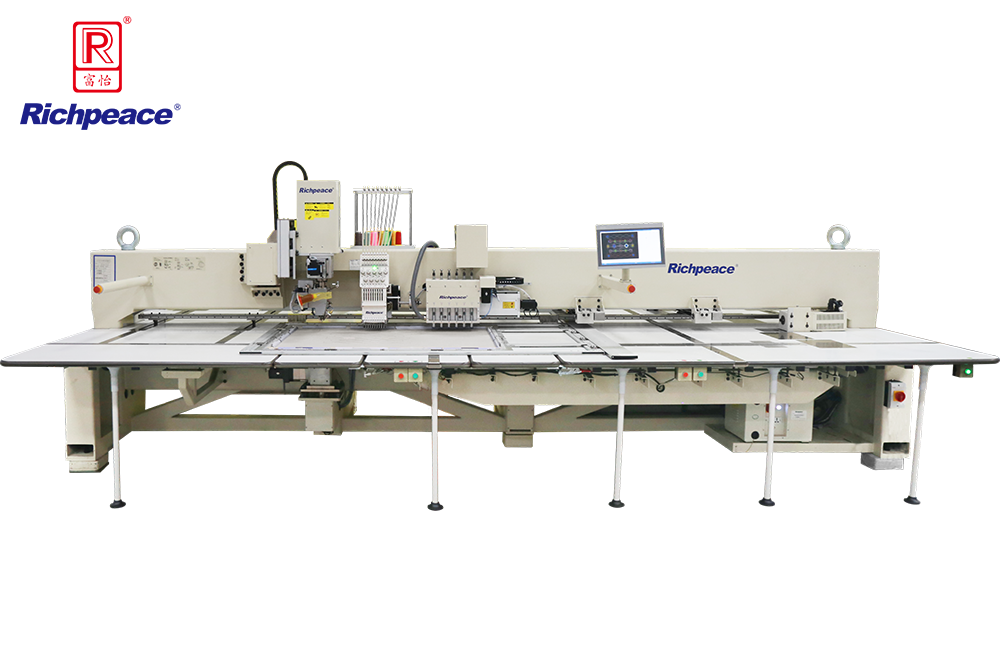

The Triple Combination Rotary up close
5 photos · tap to enlargeThe Richpeace Triple Combination Rotary in 30 seconds
What it is
An automatic machine with a perforation head, a 9-colour embroidery head and a rotary lockstitch sewing head on one bridge. The sewing head and its hook base turn together through 360°, so the needle meets every part of a curved seam the same way.
Who it's for
Car seat, floor mat and interior trim makers, furniture upholsterers and leather goods workshops in the UAE, GCC and Africa sewing decorative seams that curve.
Why this model
Choose the Rotary over the Basic when seams turn tight corners or run in circles and diamonds; Richpeace says the rotating head removes the difference between stitches sewn in opposite directions. For shaped holes choose the Special.
Bringing the Triple Combination Rotary into your plant
A triple combination machine takes over the separate perforating, embroidery and sewing stations for decorated panels. We plan it around your panels and stay with you after it is running.
- 01
Panel review
Send us your panel drawings, hole patterns and leather. We check them against the Rotary's working area and hole sizes and recommend the version and size.
- 02
One quotation
Machine, working area, CAD and options, delivery and installation in one AED quotation.
- 03
Installation and training
Our technicians install the machine, connect power and compressed air, and train your operators and pattern maker at your plant.
- 04
Parts and service
Punches, needles, hooks and other Richpeace parts through us, and service visits once the machine is in production.
What the Triple Combination Rotary does on a factory floor
360° rotary sewing head
The stitch looks the same in every direction
The sewing head and the rotary hook base are driven independently and turn together through 360°, following the line of the seam. Richpeace builds it this way to avoid the difference in look between stitches sewn forwards and stitches sewn back the other way.

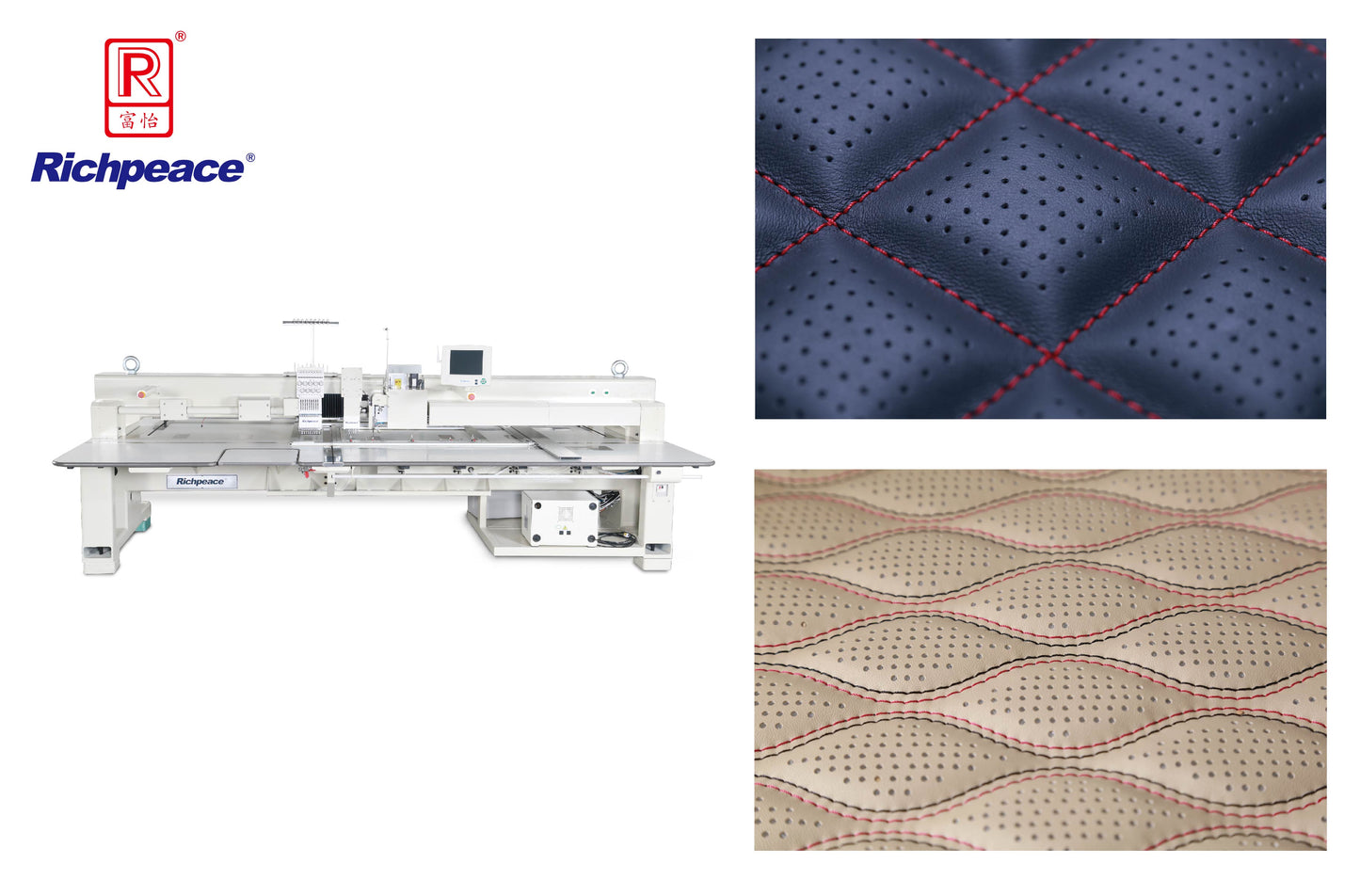

On the factory floorBecause the stitching head and hook base turn together through 360°, circles and diamond quilting on seat inserts show the same stitch in every direction.
Three heads, one bridge
Perforation, embroidery and sewing in one program
A light-duty punching head with six puncher sizes, a 9-colour embroidery head and the rotary sewing head work on the same clamped panel. Richpeace rates the machine at up to 800 holes, 850 embroidery stitches and 1,200 sewing stitches a minute.
On the factory floorBecause punching, embroidery and stitching run on one clamped panel, each decorated panel needs fewer stations and less handling.
Richpeace control system
Patterns drawn once, repeated exactly
Richpeace's control system runs the punching, the embroidery and the sewing from one pattern, with servo control on the drives. Patterns can be drawn in Richpeace SewPer CAD, which is an option.
On the factory floorBecause one pattern runs the punching, embroidery and stitching under servo control, the panel comes out the same on every shift, whoever operates it.
Hollow punchers
Each puncher is hollow so the scraps are sucked away, and six sizes on each punching head make graded hole patterns easy to program, says Richpeace.
Pneumatic lift slide
An air cylinder lifts the sewing head up and down on its own, with a 50 mm stroke.
Automatic lubrication
For the punching, embroidery and sewing heads, with an industrial vacuum cleaner for the punchings.
Option from Richpeace: SewPer CAD for designing perforation, embroidery and sewing patterns.
Richpeace Triple Combination Rotary specifications
Perforation, embroidery and sewing
| Punching head | Light-duty, 6 puncher sizes per head, hollow for scrap suction |
|---|---|
| Hole size | Round, 0.8-6 mm |
| Max punching speed | 800 holes/min |
| Embroidery head | 9 colours, 11# needles, 1x vertical hook |
| Max embroidery speed | 850 stitches/min |
| Sewing head | Rotary 360°, 19# or 22# needles, 2x vertical hook |
| Max sewing speed | 1,200 stitches/min |
| Stitch length | 0.1-12.7 mm |
Control and drive
| Control | Richpeace control system, servo control |
|---|---|
| Sewing head rotation | Head and hook base driven independently, 360° |
| Sewing head lift | Pneumatic lift slide, 50 mm |
| Lubrication | Automatic, punching, embroidery and sewing heads |
| Scrap removal | Industrial vacuum cleaner |
Frame, power and size
| Working area | 900 × 600 mm or 1200 × 800 mm |
|---|---|
| Material fixing | Integrated leather frame |
| Power | Single-phase 220 V or three-phase 380 V, 4.5-4.8 kW |
| Air pressure | 0.4 MPa |
| Setup size, 900 × 600 | 5138 × 2280 × 1750 mm |
| Setup size, 1200 × 800 | 5738 × 2680 × 1750 mm |
| Model codes | RPCE-L-P+E+S-1-900×600 or 1200×800-B-P6+F9+IS2-VR1,VR2-LH50,RH360,AO-1P220 |
Figures from Richpeace's specification sheet for the rotating-head RPCE-L-P+E+S (July 2023, the catalogue on this page) and Richpeace's product page. Richpeace's 2021 sheet for the same model lists the six punch sizes as 0.8 to 2.5 mm; we confirm the punch set with your quotation.
Included with every Al Borj machine
- Delivery across the UAE and the wider Middle East and Africa
- Installation at your factory
- Operator training on site
- Genuine spare parts
- Annual maintenance contracts (AMC)
Richpeace triple combination machines side by side
| Feature |
 |
 |
This machine
 |
|---|---|---|---|
| Best for | Round-hole patterns with straight seams and gentle curves | Shaped holes (diamond, square, oval) at any angle | Round-hole patterns with curves, circles and diamond quilting |
| Perforation | Round, 6 needle sizes, 0.8-2.5 mm | Up to 6 shaped knives, 0.8-10 mm, turned to any angle | Round, 6 sizes per head, 0.8-6 mm |
| Sewing head | Fixed head, up to 1,000 rpm | 360° rotary head, up to 1,200 stitches/min | 360° rotary head, up to 1,200 stitches/min |
| Embroidery | 9 colours, up to 850 rpm | 9 colours, up to 800 stitches/min | 9 colours, up to 850 stitches/min |
| Working area | 900 × 600 or 1200 × 800 mm | 900 × 600 or 1200 × 800 mm | 900 × 600 or 1200 × 800 mm |
| Power and air | Single-phase 220 V, 5.5 kW, 0.6 MPa | Single-phase 220 V, 6 kW, 0.6 MPa | Single-phase 220 V or three-phase 380 V, 4.5-4.8 kW, 0.4 MPa |
| Link | View Triple Combination Basic (Perforation + Fixed Sewing + Embroidery) | View Triple Combination Special (Special Hole Punching + Rotary Sewing + Embroidery) | You are here |
Questions about the Richpeace Triple Combination Rotary
Anything else, ask us on WhatsApp. We usually reply within one working day.
Ask on WhatsAppIs the Richpeace rotating head machine the same as the Triple Combination Rotary?
Yes. Richpeace calls it the Automatic Perforation + Embroidery + Sewing (Rotating Head) Machine, model RPCE-L-P+E+S with RH360 in the code for the 360° rotary sewing head. We list it as the Triple Combination Rotary.
What is the price of the Richpeace Triple Combination Rotary in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?
It depends on the working area, the options such as Richpeace's CAD, and where it is delivered. Richpeace builds each machine to order. Send us your panels and your city on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.
What is the price of the Richpeace Triple Combination Rotary in Ghana, Kenya or Ethiopia?
It depends on the working area, the options, and delivery to your city. Send us your panels and your city on WhatsApp and we reply with one quotation in AED covering the machine, delivery to your plant and installation, usually within one working day.
Why does a rotating sewing head matter on car seats?
On a fixed head, stitches sewn in one direction look slightly different from stitches sewn the other way, and it shows on circles and diamond quilting. The Rotary turns the head and the hook with the seam, so Richpeace says the stitch looks the same all the way round. Richpeace also rates it faster than the Basic, at up to 1,200 stitches a minute.
Can you equip the rest of the line, not just this machine?
Yes. Tell us what you make and your daily output. We quote the cutting, the heavy-duty and walking-foot sewing machines that close the covers, and the finishing, and we can visit your plant for an assessment first.
What hole sizes can the Rotary punch?
Round holes from 0.8 to 6 mm, according to Richpeace's 2023 sheet, with six puncher sizes on each punching head so a pattern can grade from small to large holes. For shaped holes such as diamonds, squares and ovals, choose the Triple Combination Special.
What power, air and floor space does it need?
Richpeace builds it for single-phase 220 V or three-phase 380 V, drawing 4.5 to 4.8 kW, with compressed air at 0.4 MPa. The setup size is 5138 × 2280 mm for the 900 × 600 mm model and 5738 × 2680 mm for the 1200 × 800 mm model, both 1750 mm high. Leave room in front for loading the frame.
Do you deliver the Richpeace Triple Combination Rotary to Riyadh, Accra, Nairobi, Addis Ababa, Cotonou and Lomé, and train our operators?
Yes. We ship from Sharjah across the Middle East and Africa, including Saudi Arabia, Oman, Iraq, Ghana, Kenya, Ethiopia, Tanzania, Benin, Togo, Ivory Coast and Tunisia. We have offices in the UAE and Ghana and a presence in Kenya. We install the machine at your plant, connect power and compressed air, and train your operators and the person who draws the patterns. Richpeace specifies single-phase 220 V or three-phase 380 V, 4.5 to 4.8 kW, and compressed air at 0.4 MPa for this machine.
Can I see the Triple Combination Rotary before I order?
Book a meeting with our Richpeace specialist at our showroom in Industrial Area 4, Sharjah. Bring your panels and patterns. We go through the three versions with you, show Richpeace's videos of the machine at work and quote in AED. The Triple Combination Rotary is built to order, so ask us whether one can be seen running.
