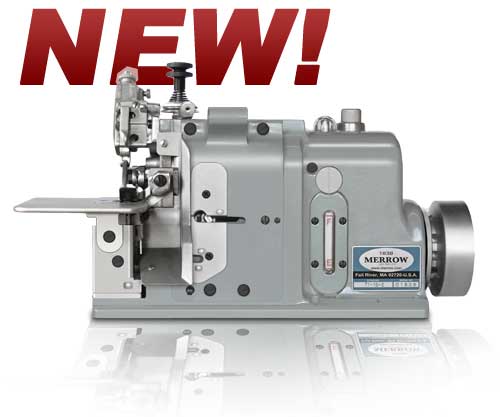

Merrow 71-1D-2, High Speed Dry Seaming Machine

Merrow 71-1D-2, High Speed Dry Seaming Machine

  • Authorised distributor
  • Since 1987
  • Installation & training available
  • UAE & GCC enquiries welcome
Call +971 6 533 3413 Send enquiry
See it working, book a demo at our Sharjah showroom

Send us your name and city and our team will come back with a price and availability.

Built for fast, clean seams on light knit fabric.

The Merrow 71-1D-2 is a single needle, single thread butt-seamer that joins light to medium weight knit fabric at high speed. It is a hybrid of Merrow's MG-Class and 70-Class machines, so it sews with MG-Class precision and speed while staying dry, with no recirculating oil. In the UAE, knitwear and technical textile plants use it where a fast, flat, oil-free seam is needed.

Because it does not recirculate oil, the 71-1D-2 avoids the particulate buildup that can affect other machines. It sews a flat stitch that will not interfere with later finishing steps.

Key features

  • Single needle, single thread butt seam on knit fabric
  • No oil recirculation, for a cleaner working area
  • Specially milled cam grooves for consistent high-speed sewing
  • Can be converted to a two-thread setup
  • Flat stitch profile that will not interfere with finishing processes
  • Built for continuous, uninterrupted operation

Specifications

Model Merrow 71-1D-2
Stitch type Federal Stitch Type 501
Seam width 6.4mm (3/8")
Stitch range 4-12 SPI (101-305mm)
Operating speed 4000 RPM
Thread count 1-2 threads
Standard needle Merrow 6SDT
Needle range Merrow 3SDT - 8SDT
Motor 1/2 HP, 3450 RPM, 110/220V
Request a quote

Get a price for the Merrow 71-1D-2, High Speed Dry Seaming Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts

FAQs about this machine

See all FAQs

Are the machines you supply genuine?

Yes. Al Borj is an authorised distributor for the brands we carry, so every machine is genuine and comes with full manufacturer support.

How do I choose the right machine for my factory?

Tell us what you make and your production target. Our team will study your needs and recommend the right machine, then support you with installation, training and after-sales service.
