Built for factories that join fabric edge-to-edge, all day, every day.

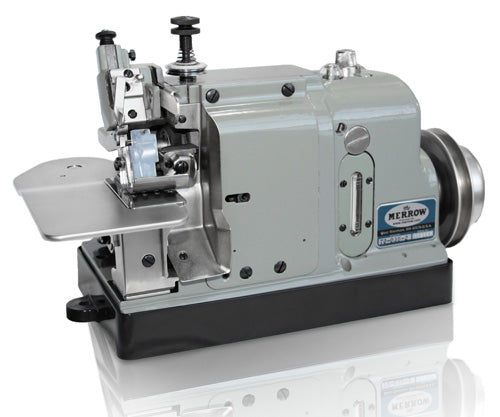

The Merrow 70-D3B-2 is Merrow's main butted seam machine for woven, non-woven, and knitted material. It sews a flat, single-thread seam that joins two fabric edges without overlap, so the seam lies flat and does not add bulk. In Sharjah and across the UAE, apparel makers and technical textile plants use this seam for garments, home textiles, and industrial fabric assembly where a flat, low-profile join matters.

Merrow builds this machine with cam-driven parts, not pistons, for long service life. It comes in dozens of configurations, so it can be set up for many fabric types and seam jobs.

Key features

  • Flat 16mm (5/8") single-thread butted seam, Federal Stitch Type 501
  • Cam-driven mechanism for consistent, durable stitching
  • Works with woven, knit, non-woven, and technical textiles
  • Available in many custom configurations for different materials and jobs
  • Compatible with a range of needle sizes for different fabric weights
  • Built for continuous, high-speed production use

Specifications

Model Merrow 70-D3B-2
Stitch type Federal Stitch Type 501
Seam width 16mm (5/8")
Stitch range 4-12 SPI (101-305mm)
Operating speed 2250 RPM
Thread count Single thread
Standard needle Merrow 8SDT
Needle range Merrow 3SDT - 8SDT
Motor 1/2 HP, 1725 RPM, 110 or 220V, 60Hz (1 or 3 phase)
Request a quote

Get a price for the Merrow 70-D3B-2, Industrial Butt Seam Machine

Tell us your name, company and city. We reply with the price, delivery time and what is included - usually within one working day.

Send enquiry Call +971 6 533 3413
Book a free demo at our Sharjah showroom
Showroom #4, Al Borj Showrooms, Industrial Area 4, P.O. Box 28551, Sharjah, United Arab Emirates · info@alborj.com

Every machine from Al Borj includes

These services are part of every machine we supply. They are included in your quotation.

  • Delivery across the UAE and wider Middle East & Africa
  • Professional installation
  • Operator training
  • Genuine spare parts
  • AMC (annual maintenance) service contracts
