Merrow12-E Heavy Duty Butt Seam Machine

Also listed as 12E, 12 E and Merrow 12E

A single-thread butt seamer that joins two pieces of tough material edge to edge. Merrow states the seam sits nearly as flat as the material, so equipment further down your line is not affected by a bulky join.

Built for Technical textilesHome textiles and furnitureAutomotive interiorsMilitary and technical textiles

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

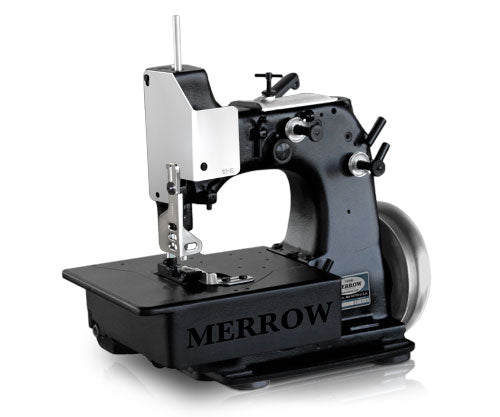

Merrow 12-E heavy duty butt seam machine, full side view
  • 1,600rpmOperating speed
  • 5/8inchStitch width
  • 4-12spiStitch range
  • 1threadThread count
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The 12-E up close

1 photo · tap to enlarge

The Merrow 12-E in 30 seconds

What it is

An extra high lift, single needle, single row butt seam machine that makes a 5/8 inch wide flat seam, federal stitch type 501.

Who it's for

Technical textile, home textile, upholstery and composite makers in the UAE, the GCC and Africa who join heavy or rigid material.

Why this model

Choose it when the join must stay flat on heavy material: Merrow lists carpet, leather, Kevlar, carbon fibre, fibreglass, turf and geotextiles.

Setting up a factory line with the 12-E

We quote by the line and stay with you after the machines are running.

  1. 01

    Factory assessment

    We look at what you make, your daily output target and your floor, then recommend the machine mix for each line.

  2. 02

    Quote by the line

    Machines, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up every machine at your factory and train your operators on site.

  4. 04

    Parts and maintenance

    Spare parts and annual maintenance contracts for every machine on the floor.

What the 12-E does on a factory floor

Merrow 12-E heavy duty butt seam joining machine

Butted seam

A wide, flat seam edge to edge

Merrow states the 12-E joins two pieces edge to edge with a wide, flat butted seam.

On the factory floorBecause the seam lies nearly as flat as the material, the next machine on the line is not affected by a bulky join.

Merrow 12-E heavy duty butt seam joining machine

Heavy duty build

Built with heavy duty steel

Merrow describes extra high lift, heavy duty steel parts, a long arm and a high looper and needle throw.

On the factory floorThe extra clearance lets rigid and thick material pass under the needle without being forced.

Merrow 12-E heavy duty butt seam joining machine

Torque

A 6 inch hand wheel and a 1/4 inch plain feed looper gauge

Merrow states the 6 inch hand wheel and the 1/4 inch plain feed looper gauge supply the torque to penetrate thick material.

On the factory floorThe torque lets the needle go through thick material, so the seam forms instead of the machine stalling.

  • Table or railway

    Merrow's catalogue shows it mountable to a table or an automated railway.

  • Rotary cutting

    A rotary cutting system is available as an option.

Merrow 12-E specifications

Stitch

Model12-E
Operating speed1,600 rpm
Stitch width5/8 inch (16 mm)
Stitch range4-12 spi
Standard stitch eccentric4 spi
Federal stitch type501
Number of threads1
Standard needle230

Motor

Motor required1725 rpm, 60 Hz, 1/2 HP, 110 or 220 V, 1 or 3 phase

Figures from Merrow's 12-E catalogue and product page.

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Merrow 12-EFull specifications from Merrow, PDF Download

Questions about the Merrow 12-E

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the Merrow 12E the same as the 12-E?

Yes. 12E, 12 E and 12-E all mean the same Merrow butt seam machine.

What materials does the Merrow 12-E join?

Merrow lists carpet, leather, Kevlar, carbon fibre, fibreglass, turf and other geotextiles, and its catalogue also shows upholstery and composites.

Which Merrow butt seam machine is the lighter option?

For light to medium knit fabric see the Merrow 71-1D-2, which runs at 4,000 rpm. The 12-E is the one for heavy material.

What is the price of the Merrow 12-E in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the options and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line and can visit your factory for an assessment first.

Do you deliver the Merrow 12-E and train our operators?

Yes. We ship from Sharjah across the UAE, the GCC and Africa, and we have offices in the UAE and Ghana. We install the machine at your factory and train your operators, then support you with spare parts and service.

Can I see the Merrow 12-E before I buy?

Book a visit to our showroom in Industrial Area 4, Sharjah. Tell us the model first so we can confirm what we can show you, and bring a sample of your own material.
