JukiMO-6804S Industrial 3-Thread Overlock Machine (Serger)

Also listed as MO 6804S, MO6804S, MO-6804, MO 6804, 6804S, MO-6804S-0E4-30H, MO-6804S-0A4-150 and MO-6804S serger

A 1-needle, 3-thread overlock for factory lines. It trims and overcasts the cut edges of woven panels before they go to the lockstitch, and sews light knit seams, at up to 7,000 stitches a minute.

Built for Garment factoriesUniform factoriesAbaya and kandoora production

Price in AED on request. We reply with the price and delivery time, usually within one working day. Machines for a whole line are quoted together.

Juki MO-6800S series overlock machine on its table top, the MO-6816S/DD10 direct-drive build shown
Shown: MO-6816S/DD10, the 5-thread direct-drive model of the MO-6800S series
  • 7,000sti/minMax speed
  • 3threads1 needle, 504 overlock
  • 1.5-4.0mmOveredging width
  • 1:4Max gathering ratio
  • 5,000+factories supplied by Al Borj in the Middle East and Africa

The MO-6804S up close

5 photos · tap to enlarge

The Juki MO-6804S in 30 seconds

What it is

Juki's 1-needle, 3-thread overlock (US stitch type 504) from the MO-6800S series, with differential feed, a needle cooler and a needle thread heat remover as standard.

Who it's for

Garment, uniform and workwear factories in the UAE, GCC and Africa that neaten cut edges before seaming, and workshops that sew light knits or roll hems on scarves.

Why this model

Choose the 3-thread when the seam itself is sewn on a lockstitch and the overlock only finishes the edge. For a knit seam take the 4-thread MO-6814S, for a strong woven seam the 5-thread MO-6816S.

Setting up a factory line with the MO-6804S

In most factories the MO-6804S sits beside the lockstitch machines and neatens every cut panel before it is joined. We quote it by the line for factories in the UAE, the GCC, Ghana, Kenya and Ethiopia, with the gauge set for your fabric.

  1. 01

    Factory assessment

    We look at what you sew, the seams on each garment and your daily output, then set the mix of lockstitch, overlock and safety stitch machines for each line.

  2. 02

    Quote by the line

    Machines, gauges, tables and stands, delivery and installation in one AED quotation.

  3. 03

    Installation and training

    Our technicians set up and thread every machine at your factory, test it on your fabric and train your operators and mechanics on site.

  4. 04

    Parts and maintenance

    Genuine spare parts, from needles and loopers to knives and feed dogs, and annual maintenance contracts for every machine on the floor.

What the MO-6804S does on a factory floor

Juki MO-6816S-FF6-30H safety stitch machine, close-up of the needles, presser foot and looper cover

Needle and looper thread take-up

Soft, even edges at 7,000 stitches a minute

Juki gives the MO-6800S a needle thread take-up mechanism and a looper thread take-up lever. Juki states the seams stay well tensioned and soft and follow the stretch of the material, even at 7,000 sti/min. Juki also gives it a wider, brighter needle entry.

On the factory floorThe needle and looper thread take-up keep seams well tensioned and soft, so edges follow the stretch of the fabric even at full speed.

Juki MO-6800S differential-feed micro-adjustment mechanism on the front of the machine

Differential feed

Set gathering or stretch from the front of the machine

The differential feed runs from 1:0.7 for stretching to 1:2 for gathering, and up to 1:0.6 and 1:4 with the external setting. Juki puts the micro-adjustment, the external ratio increase and the main feed dog height on the front face, adjustable with a screwdriver.

On the factory floorThe differential feed and feed dog height are set from the front with a screwdriver, so the mechanic sets each fabric without taking covers off.

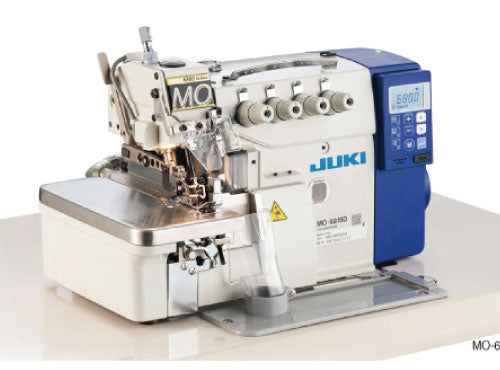

Juki MO-6816S/DD10 with the direct-drive motor and operation panel built into the machine head

Direct-drive build

The same head with the motor and panel built in

Juki also builds the MO-6800S as /DD10: an energy-saving servomotor in the direct-drive style, with the control box and operation panel on the machine head. Juki lists the MO-6804S-0E4-30H with /DD10 and /DD22; the DD22 adds a side cutter with a 2-point material sensor, an automatic foot lifter and chain-off thread suction.

On the factory floorThe servomotor, control box and panel are built into the head, so nothing hangs under the table and the operator works the panel at the machine head.

  • Needle cooler and heat remover

    Both standard on the MO-6800S, for synthetic thread and fabric at speed.

  • Rolled hem build

    MO-6804S-0A4-150: 1.5 mm rolled hem on extra light to light material, DC×1 #8 needle.

  • Lower noise

    Juki states the balanced design cuts operating noise and vibration.

Juki devices for the series include the T053 pneumatic flat cutter, the T054 pneumatic side cutter, chain-off thread suction with auto-lifter, the S206 swing-type gathering device and the H253 cloth edge guide ruler.

Juki MO-6804S specifications

Sewing

Stitch type1-needle overlock, US stitch type 504
ReplacesJuki MO-6704S
Needles and threads1 needle, 3 threads
Max. sewing speed7,000 sti/min
Stitch length0.6-3.8 mm
Overedging width1.5 or 4.0 mm (by subclass)
NeedleDC×27 #11 (0E4-30H); DC×1 #8 (0A4-150)
Subclasses0E4-30H general fabric, light to medium; 0A4-150 rolled hem, extra light to light

Feed and needle

Differential feed ratioGathering 1:2 (max. 1:4), stretching 1:0.7 (max. 1:0.6)
Differential feed adjustmentBy lever, with micro-adjustment
Stitch length adjustmentBy push-button
Needle bar stroke24.5 mm
Needle inclination20°
Needle bar bushingLower bushing method
Max. presser foot lift6.0 mm (0E4-30H and 0A4-150)
Max. presser foot pressure63.7 N (6.5 kgf)

Build

Weight of the machine head27 kg
LubricationAutomatic, JUKI Machine Oil 18 (ISO VG18)
Needle coolerStandard
Needle thread heat removerStandard
Micro-lifterOption
DriveTable motor, or Juki's direct-drive /DD10, /DD22 or /DD23 build

Figures from Juki's MO-6800S catalogue (February 2019) and Juki's MO-6800S product page; direct-drive builds from Juki's MO-6800S(D)/DD catalogue (January 2021).

Included with every Al Borj machine

  • Delivery across the UAE and the wider Middle East and Africa
  • Installation at your factory
  • Operator training on site
  • Genuine spare parts
  • Annual maintenance contracts (AMC)
Catalogue Juki MO-6804SFull specifications from Juki, PDF Download

Juki overlock and safety stitch machines side by side

Feature
Juki MO-6814S 2-needle 4-thread overlock machine
Juki MO-6814S
Juki MO-6816S 2-needle 5-thread safety stitch machine
Juki MO-6816S
This machine
Juki MO-6804S
Juki MO-6804S
Best forKnit seams: T-shirts, polo shirts, sportswearWoven seams: trousers, jeans, shirts, jacketsEdge neatening woven panels, light knit seams
Stitch2-needle overlock (514)Safety stitch (516)1-needle overlock (504)
Needles and threads2 needles, 4 threads2 needles, 5 threads1 needle, 3 threads
Overedging width2.0, 3.0 or 4.0 mm4.0, 5.0 or 6.0 mm1.5 or 4.0 mm
Max speed7,000 sti/min (6,500 on heavy builds)7,000 sti/min (6,000-6,500 on heavy builds)7,000 sti/min
Head and lubricationStandard lubrication, 27 kgStandard lubrication, 27 kgStandard lubrication, 27 kg
LinkView MO-6814SView MO-6816SYou are here

Questions about the Juki MO-6804S

Anything else, ask us on WhatsApp. We usually reply within one working day.

Ask on WhatsApp

Is the MO6804S the same machine as the Juki MO-6804S?

Yes. MO6804S, MO 6804S and MO-6804S are the same Juki machine. The full order code adds the subclass, for example MO-6804S-0E4-30H: 0E4 is a 4.0 mm overedging width with a 2-row feed dog, and 30H is Juki's code for runstitching general light to medium-weight fabric.

What is the price of the Juki MO-6804S in the UAE, Saudi Arabia, Oman, Bahrain, Kuwait or Qatar?

It depends on the quantity, the subclass and gauge, the table and stand, and where it is delivered. For a factory line we quote all the machines together. Send your city and quantity on WhatsApp or through the enquiry form and we reply with the AED price and delivery time, usually within one working day.

What is the price of the Juki MO-6804S in Ghana, Kenya or Ethiopia?

It depends on the quantity, the subclass and gauge, the table, and delivery to your city. Send your city and quantity on WhatsApp and we reply, usually within one working day, with a quotation in AED that covers the machines, delivery and installation.

Does the Juki MO-6804S replace the MO-6704S?

Yes. The MO-6804S replaces the Juki MO-6704S, and we now supply the MO-6804S in its place. It is a 1-needle 3-thread overlock that sews at up to 7,000 stitches a minute.

Is the MO-6804S suited to a factory production line?

Yes, as the edge neatening machine. It runs at up to 7,000 stitches a minute, Juki fits a needle cooler and a needle thread heat remover as standard, and the differential feed is set from the front. Most factories put one beside every few lockstitch machines to overcast cut panels before seaming.

3-thread, 4-thread or 5-thread: which overlock do I need?

Use the 3-thread MO-6804S to neaten edges when the seam is sewn on a lockstitch, and for light knit seams. Use the 4-thread MO-6814S to seam and overedge knits in one pass: T-shirts, polo shirts, sportswear. Use the 5-thread MO-6816S safety stitch for woven seams that take strain: trousers, jeans, shirts, uniforms and jackets.

Can you equip a whole line, not just this machine?

Yes. Tell us what you make and your daily output target. We recommend the machine mix for the line, from lockstitch to overlock, safety stitch, coverstitch and special machines, and can visit your factory for an assessment first.

Is the MO-6804S a direct-drive machine?

The standard MO-6804S is driven from a motor under the table. Juki also lists it as MO-6804S/DD10, with an energy-saving servomotor in the direct-drive style and the operation panel on the head, and as /DD22 with a sensor side cutter, automatic foot lifter and chain-off thread suction. Tell us which build you want quoted.

Which MO-6804S subclass do I need, 0E4-30H or 0A4-150?

Juki makes the MO-6804S-0E4-30H for general light to medium-weight fabric, with a DC×27 #11 needle, and the MO-6804S-0A4-150 for rolled hems on extra light to light fabric, with a DC×1 #8 needle. Tell us the fabric and the edge you want and we order the right subclass.

Where can I find the MO-6804S manual, threading diagram and parts book?

Send us the subclass from your machine's plate on WhatsApp and we send Juki's instruction manual, which shows how to thread the needle and loopers, and the parts list for that exact version. Our technicians thread and set every machine at installation and train your operators. We supply spare parts for the MO-6804S.

Do you deliver the MO-6804S to Riyadh, Accra, Nairobi and Addis Ababa?

Yes. We ship from Sharjah across the UAE and the GCC, including Riyadh, and to Africa, including Accra, Nairobi, Addis Ababa, Cotonou and Lomé. We have offices in the UAE and Ghana and a presence in Kenya. Our technicians install every machine at your factory and train your operators and mechanics, and after that we support you with genuine spare parts and annual maintenance contracts. Send your city and quantity on WhatsApp for a quotation with delivery, usually within one working day.

Can I see the MO-6804S working before I buy?

Yes. Book a demo at our showroom in Industrial Area 4, Sharjah, and bring a sample of your own fabric to test. Tell us the model and the seam you need when you book.
